1-3-7
FS-9120DN/9520DN

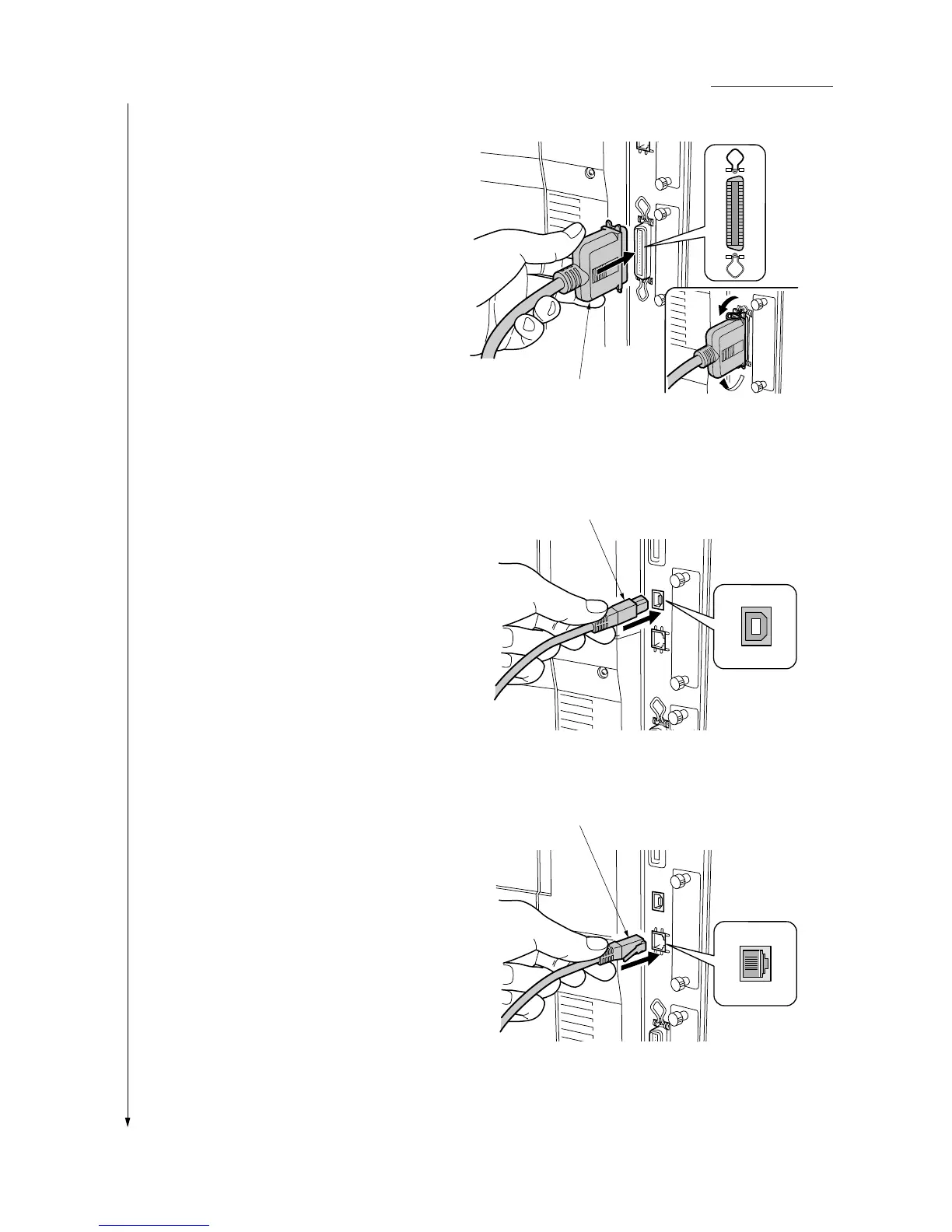

Figure 1-3-14
Parallel printer cable
Network cable
Figure 1-3-15
Figure 1-3-16
• Parallel interface connection
1. Plug one end of the printer cable (not included)
into the parallel interface connection on the right
side of the printer.
2. Close the clips on both sides to fix the connector
in place.
3. Plug the other end of the printer cable Into the
computer‘s parallel Interface connection.
• USB cable connection
1. Plug one end of the USB cable (not Included) Into
the USB cable connection on the right side of the
printer.
2. Plug the other end of the USB cable Into the
computer‘s USB cable connection.
• Network interface connection
1. Plug the network cable (not included) into the
network interface connection on the right side of
printer.
USB cable
