3.4.4 Jam Inside the Printer
When a paper jam occurs inside the printer, clear it using the following
procedure.
1
Open the printer’s top and front covers.

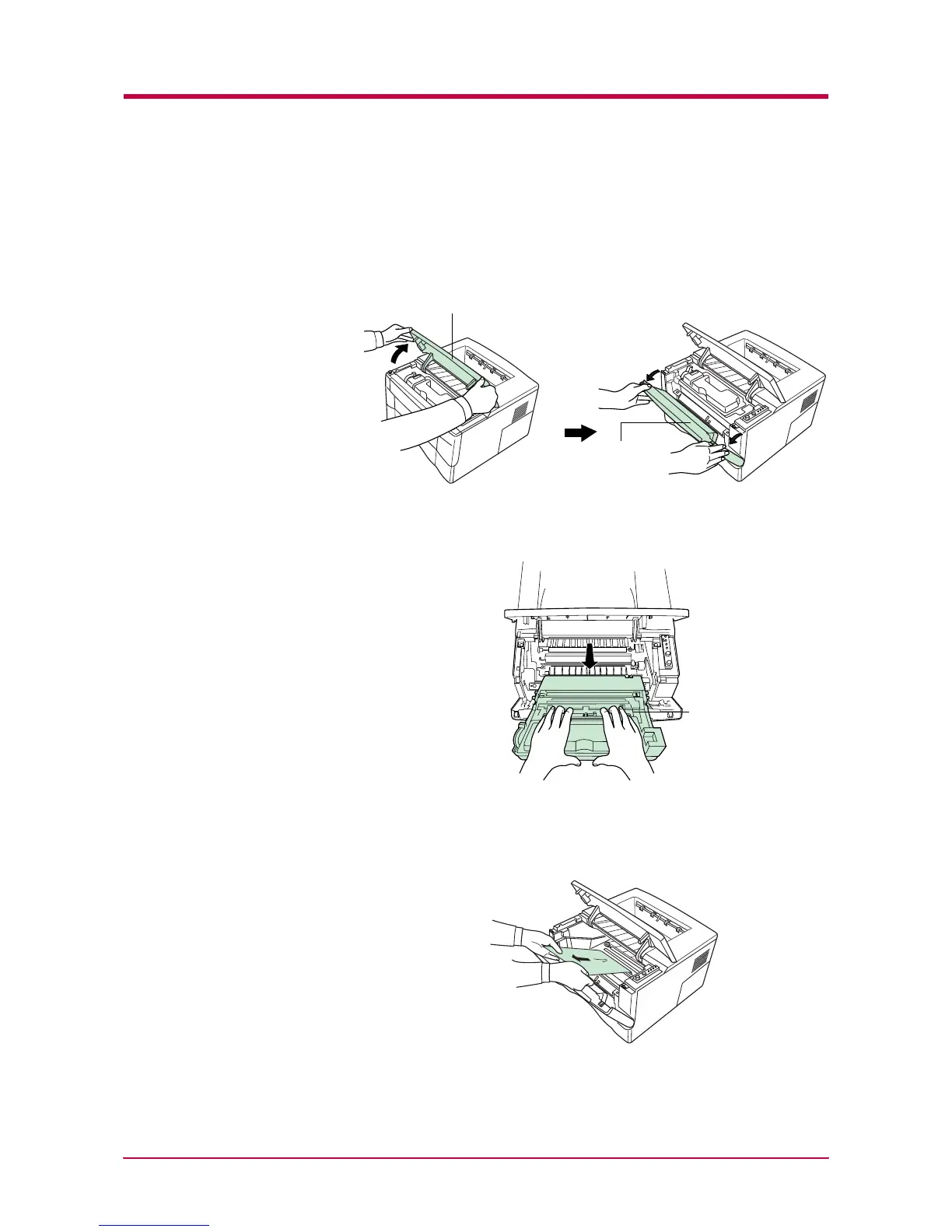

Figure 3-7
2
Remove the process unit from the printer as shown in the figure.
Figure 3-8
3
Remove the jammed paper from the printer as shown in the figure.
Figure 3-9
Top Cover
Front Cover
Process Unit
