99

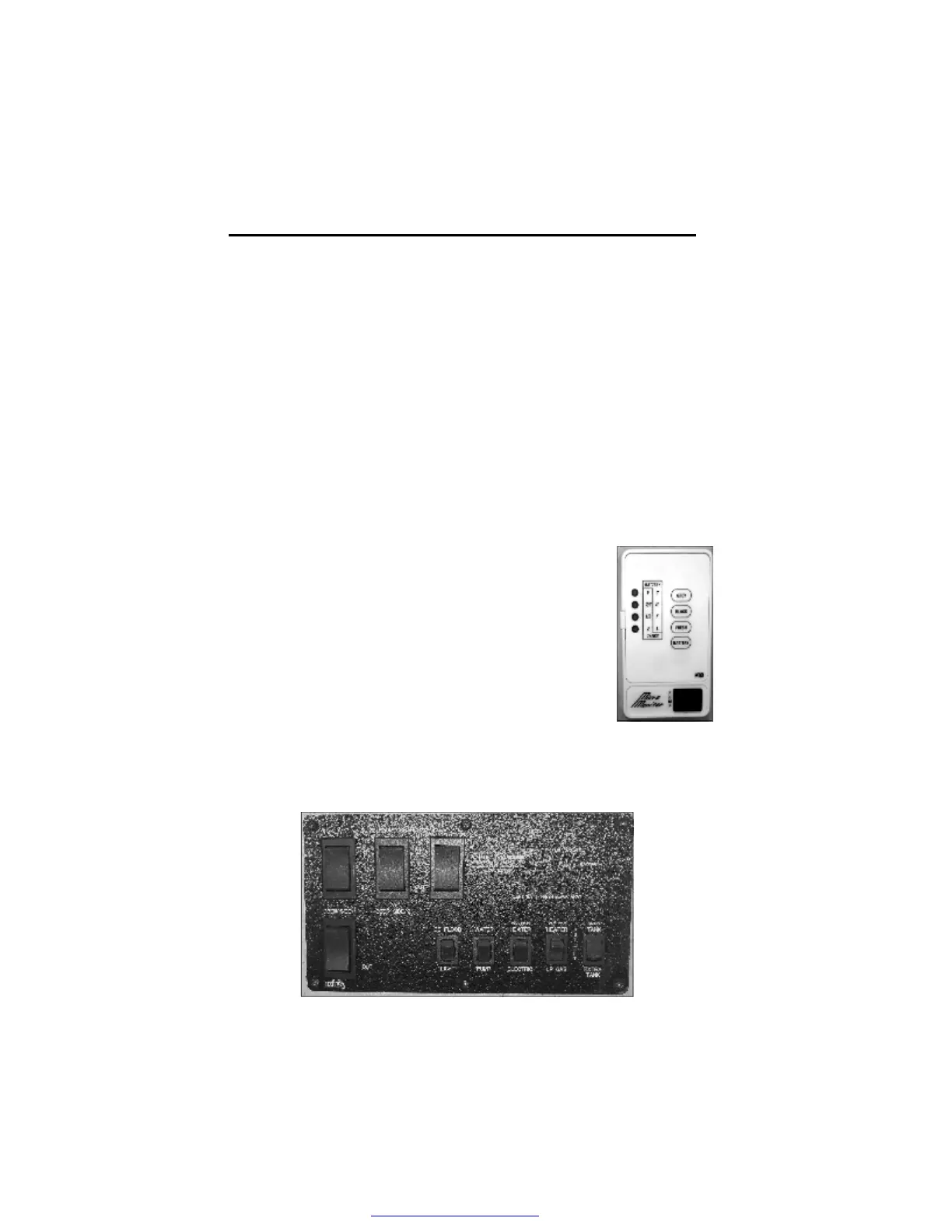

_MONITOR PANEL______________________________________
Your panel through modern technology will supply the charge condi-
tion of your battery, and water level information from your water
tanks.
Operation requires 12-volt DC power, supplied by the battery or con-
verter. Sensors, one negative and three positive, attached to a resis-
tor feed information to the display panel. To operate, place finger on
button and push. A light will illuminate indicating the water level of
tanks or charge condition of battery. “Gallery” will light only when
floor plan includes the second gray water holding tank.
The switch on the lower right corner is for water pump operation.
When in the “ON” position, pump will run until 40 to 45 PSI is
achieved. The pump will shut off and restart at 20 pounds of pres-
sure. Turn pump switch “OFF” when pump is not in use.
When pushing the battery button, the highest light com-
ing on indicates the battery condition: C-charge at 12.7
volts; G-good at 11.9 volts; F-Fair at 11.2 volts; L-low at
6.0 volts. Press only one button at a time as one set of
lights serves all functions.
This monitor panel is used in Spree and Sportsmen
model coaches.
DURANGO
In Durango models, you will find monitor panels inside of the control
panel, just inside of entrance door, along with slide out switches, or
the control panel may be inside of a cabinet door.
