78
The “cut-off” switch system is available on some models as an
option.
Circuit Breakers and Fuses—12 Volt DC
These two items have been installed in your coach to protect
circuitry and components:
Fuses are placed into the fuse panel with the converter or into a
separate panel near the converter with access inside of coach.
Fuses are placed in your electrical system to protect wiring and
components when overloads appear or short circuits occur. Radios,
stereos and possibly other components may
have “in-line” fuses attached to their own
wire harness.

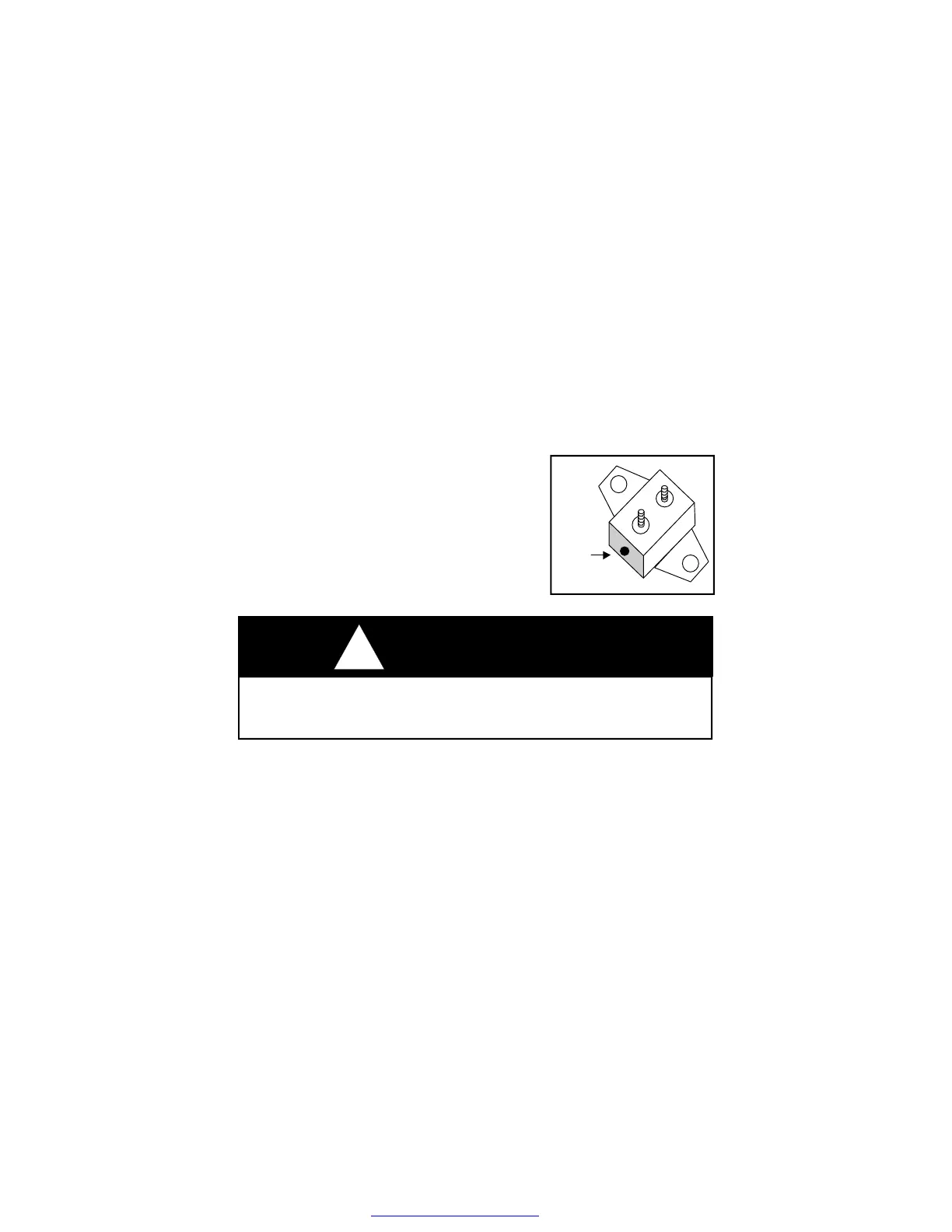

Circuit breakers are placed at several
locations. An automatic reset breaker is
placed within 18 inches of the auxiliary
battery. Breaker will automatically reset
upon “cool down”, normally 60 seconds.
A green (30 amp), gold (20 Amp) or red (10 Amp) automatic reset
breaker is installed in the load center to operate your slide-out(s).
All wiring used in your coach meets correct amp rating correlated
with fuses and breakers in respective panels as required by code.
The RV battery is placed in parallel circuitry with the battery on your
tow vehicle. Care needs to be exercised not to drain both batteries
together. There are two methods of avoiding this condition:
First, disconnect the tow vehicle when parked and/or using your
coach.
DO NOT replace circuit breakers or fuses with a higher current rating than those
supplied with your coach. Over-fusing can cause a fire hazard by overheating the
electrical wiring.
WARNING
!
