40
TV Antennas (Standard Roof Mount)

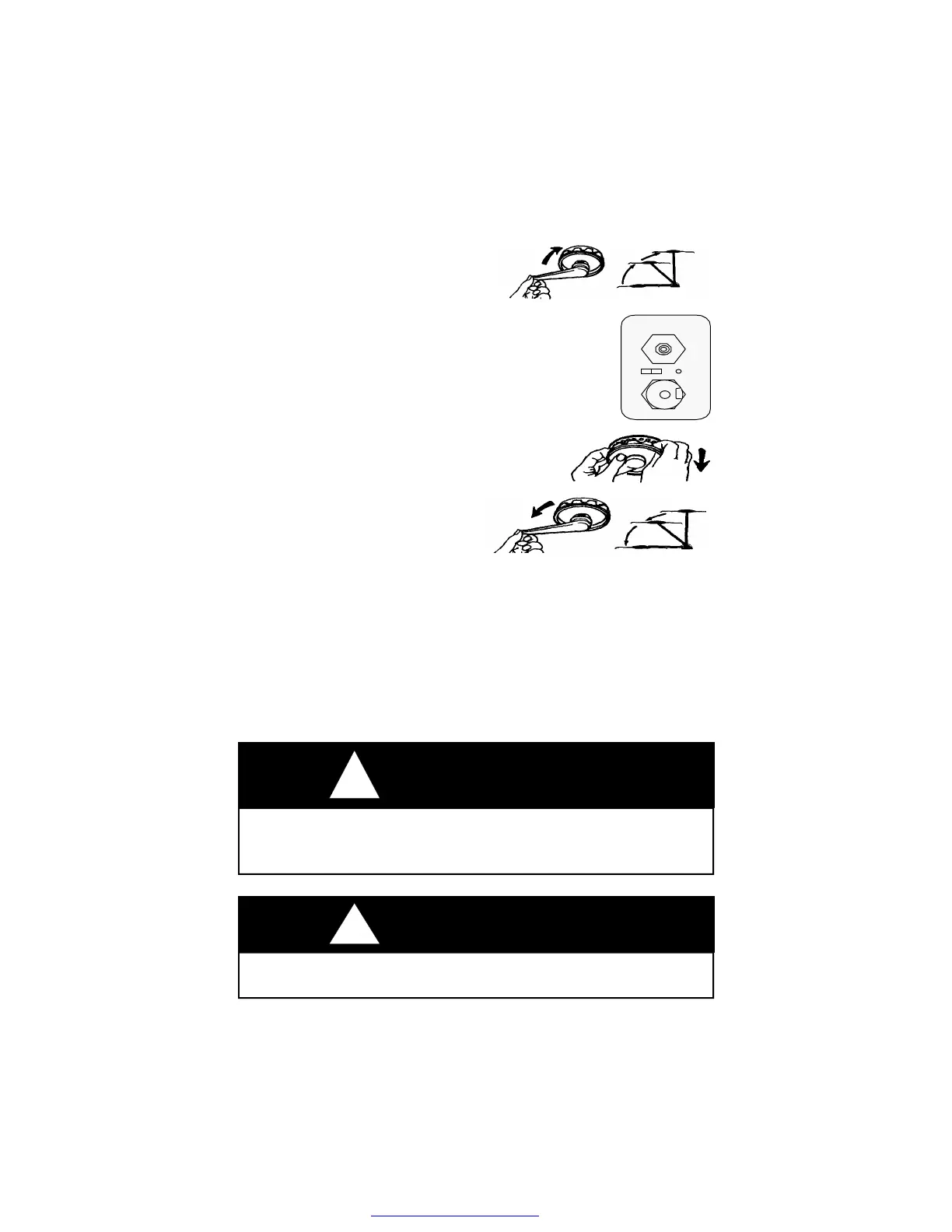

To raise the antenna turn crank
clockwise in UP direction
approximately 13 turns or until
some resistance to turning is
noted (figure 1).
On amplified models, 12-volt DC
power is required for full
performance. Turn the power
supply ON with the push button
switch (figure 2). Power moves to
the head of antenna, activating the
inbuilt module, returning amplified
signal to both coax leads in the
coach.
After the antenna is in full UP
position, pull down on the round
knob with both hands until it disengages from the ceiling plate. Rotate for
best picture (figure 3).
To lower the antenna to traveling position, rotate the antenna until
pointer on directional handle aligns with pointer on the ceiling plate.
Turn the elevating crank counterclockwise in DOWN direction about
13 turns or until resistance is noted. The antenna is now locked in
travel position (figure 4).
Figure 1
WARNING
DO NOT connect high current
devices such as hair dryers to
this receptacle. Maximum
current rating of this receptacle
is 7.5 amps at 12 VDC.
Figure 2
Figure 3
Figure 4
When lowering the antenna, never, lower it into any position except the TRAVEL
POSITION. Failure to lower antenna into the TRAVEL POSITION before traveling will
very possibly cause damage, not covered by warranty.
CAUTION
!
The power supply should be turned OFF when connecting/disconnecting cables to
power supply and antenna, but should be turned ON when testing for voltage.
CAUTION
!
