Echo Liquid Handler Software 5-41

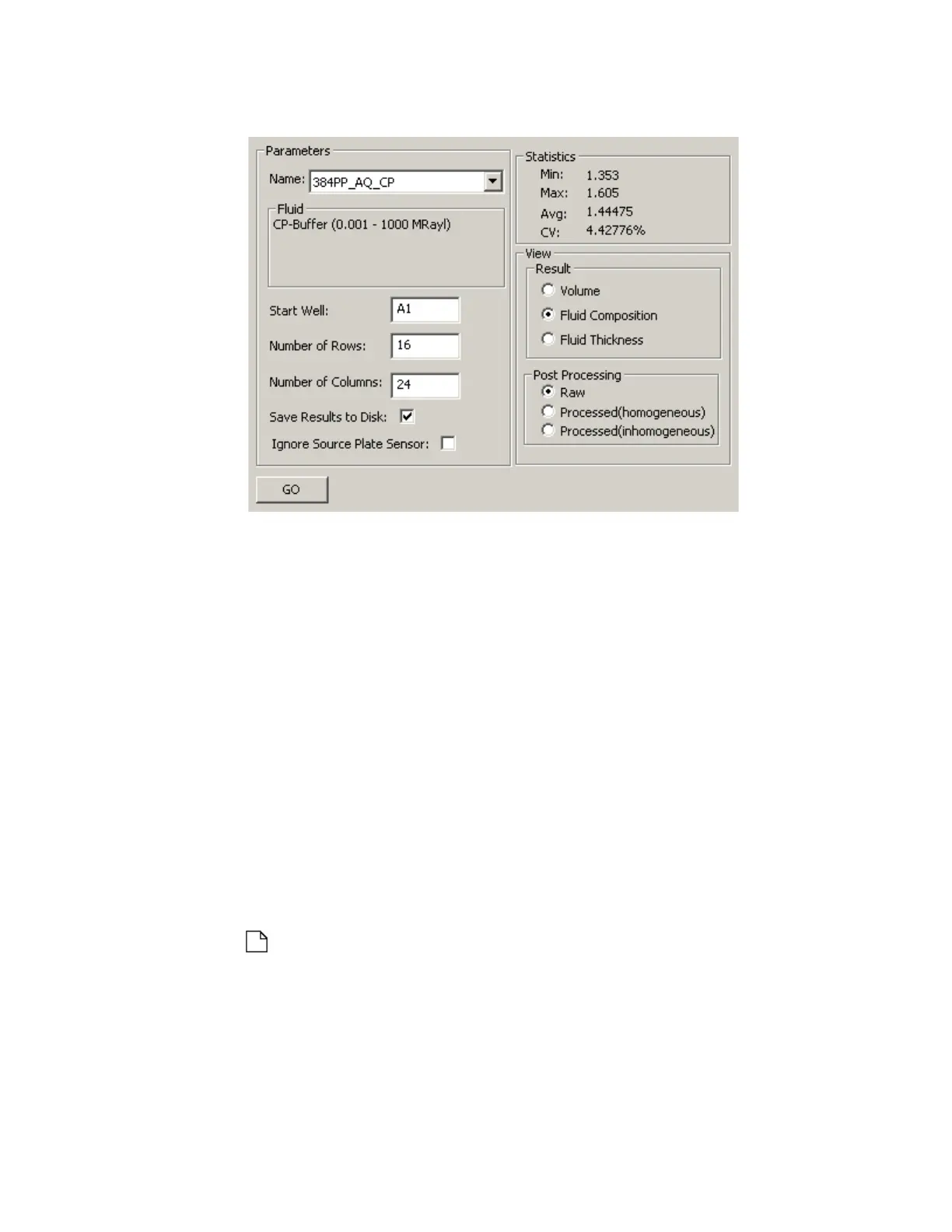

Figure 5.37 Diagnostic survey plate parameters
8. After the survey, the following options are available in the V
IEW section
below the STATISTICS section. Select the appropriate survey type
depending on the application.
Result:
Volume: Displays fluid volume.
Fluid Composition:
*
Displays fluid composition based on the fluid
type described in the Fluid box. In the previous figure, the fluid
composition is in MRayl. Fluid Thickness:
*
Displays well fluid
thickness.
Post Processing:
Raw: The measured fluid percentages are not “processed.”
Processed (homogeneous)
†
: The measured fluid percentages are
“processed” using a moving average filter.
Processed (inhomogeneous)
†
: The measured fluid percentages
are “processed” to reduce measurement noise
Note: Selecting processed or raw fluid percentages affects the
following data:
The data displayed in the plate map.
The data displayed in the Statistics section.
The data saved to a CSV file on the client PC.
* The Echo 520 liquid handler does not report this result.
† Not available in Echo software version 2.2 and later.
