laguna Fusion 3 - BLADE TILT;BEVEL ADJUSTMENT

Fusion 3 Table Saw \ Troubleshooting \
© 2020 Laguna Tools
45
.

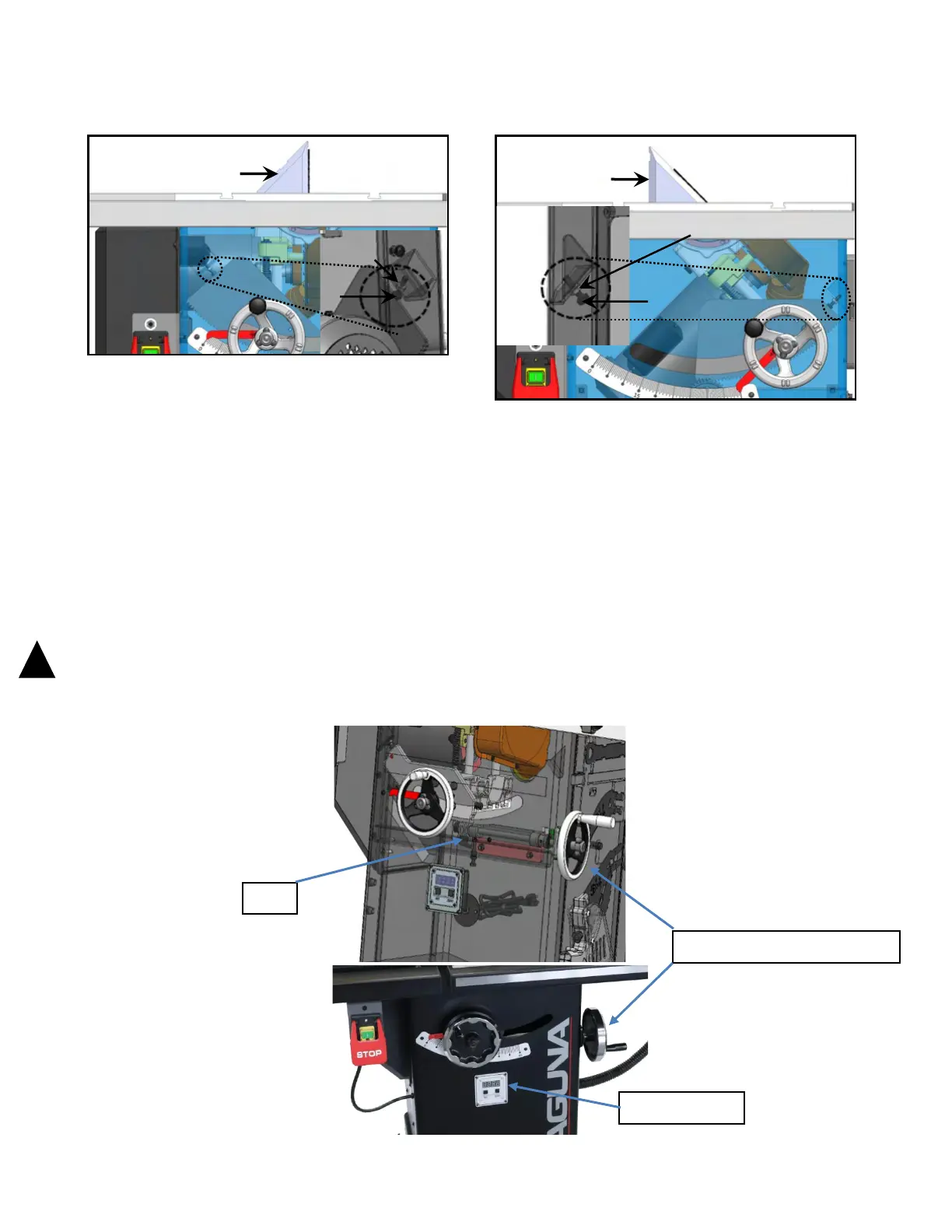

Fig. B
Fig. C
BLADE TILT /BEVEL ADJUSTMENT
The blade tilt (bevel) adjustment control by worm gear box assembly C, handwheel D is located on the side
of the saw, Figs. D & E.
Turn the handwheel C left or right as required to set the blade to the desired angle. The blade can be tilted
to the left anywhere from 0° (90° to the table) to 45°.
WARNING: TO LIMIT YOUR EXPOSURE TO THE BLADE AND ALSO TO MAXIMISE THE EFFECTIVENESS OF THE ANTI-KICKBACK
PAWLS (WHEN USING THE RIVING STYLE SPLITTER & BLADE GUARD), NEVER TAKE MORE BLADE HEIGHT THAN IS REQUIRED TO
COMPLETE THE CUT. WHEN SETTING THE BLADE HEIGHT FOR THROUGH-CUTS (CUTS ALL THE WAY THROUGH THE THICKNESS
OF A BOARD) SET THE HEIGHT OF THE BLADE TO ROUGHLY 1/4" HIGHER THAN THE THICKNESS OF THE BOARD.
Figs. D & E
!
！
DRO (angle)
D (Handwheel, angle)
C
A
C
D
C
A
F
E
