74
8 Options
LED status

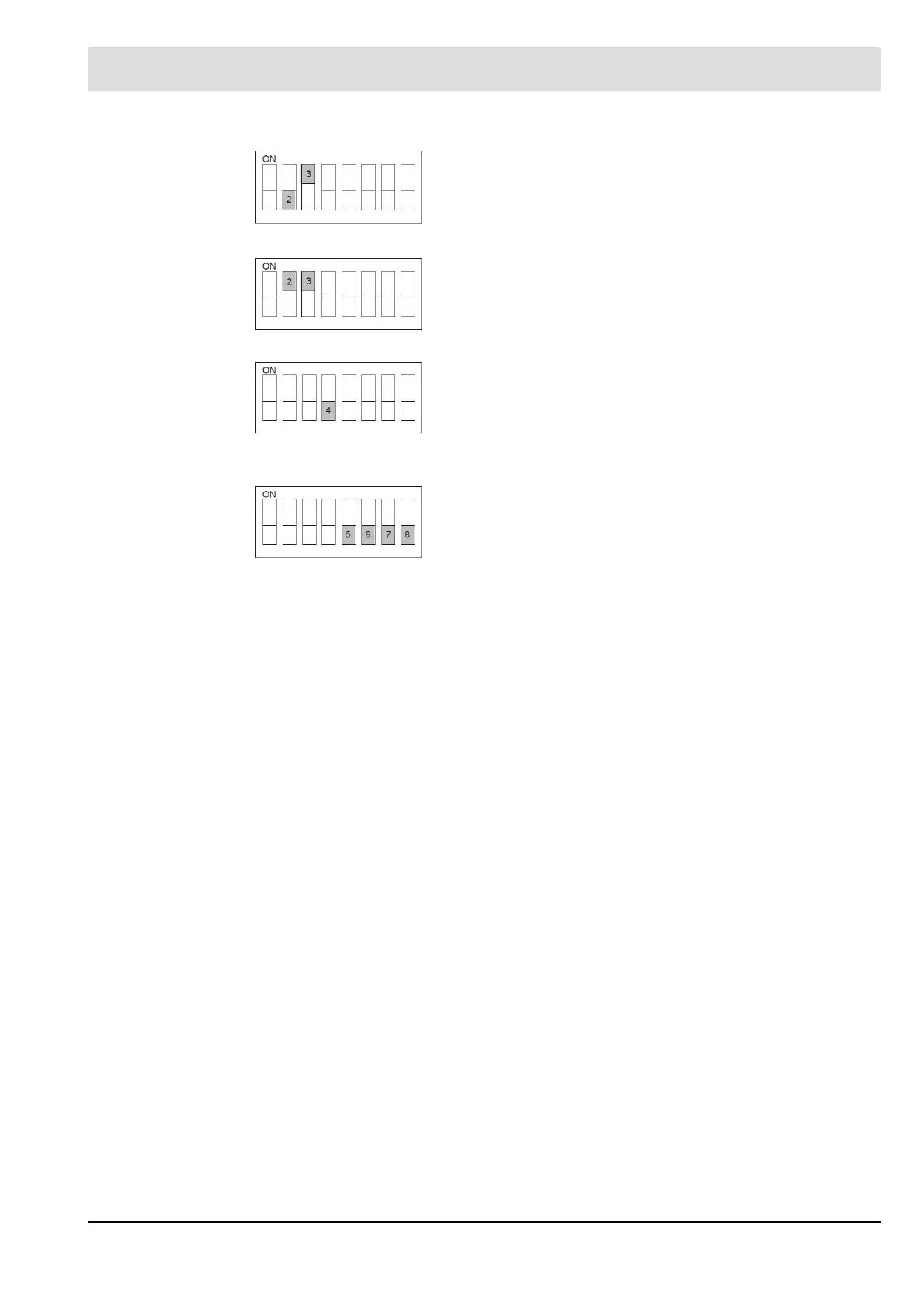

DIP switches 2 and 3
LSB device family 3
2 OFF 3 ON
DIP switches 2 and 3
LSB device family 4
2 ON 3 ON
DIP switch 4
Operating mode
OFF normal mode ON
Do not use the programming mode
DIP switch 5 - 8
Not assigned
LED 1 redERROR
OFF Normal mode
ON Initialisation not yet performed or not successfully ended (e.g., because
the module could not be initialised).
No message has been received for at least 3 seconds.
LED 2 greenPOWER
ON Module completely initialised and without error.
LED 3 greenCAN
OFF CAN controller in bus OFF. No communication possible.
FLASHING The CAN controller has discovered temporary faults.
After the problem is remedied, the LED continues too flash for a while.
ON CAN is ready for operation.
