LaneShark LS-3 - ROTATING ASSEMBLY

(850) 610-2870 www.lanesharkusa.com 16
Lane Shark LS-3

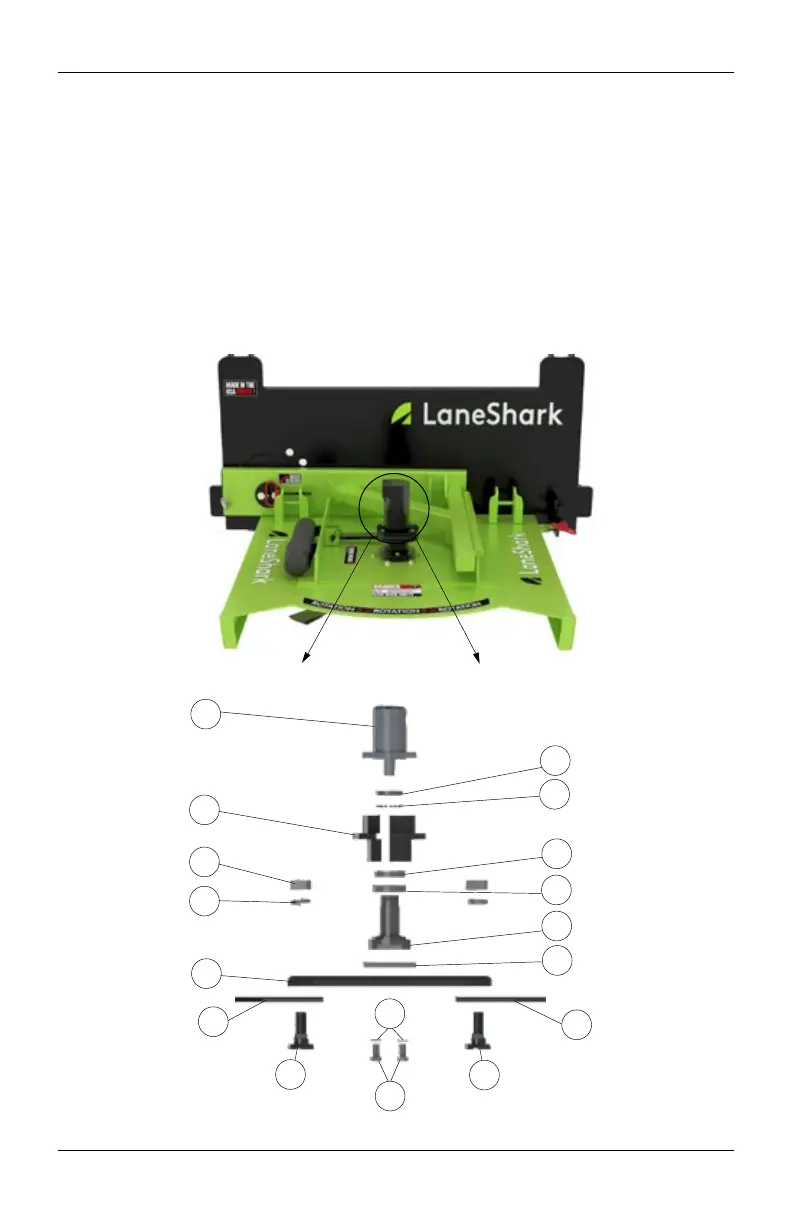

COMPONENTS
Rotating Assembly
(1) Hydraulic Motor
(2) Bearing Lock Nut
(3) Bearing Lock Washer
(4) Spindle Housing
(5) Blade Bolt Nut
(6) Split Lock Washer
(7) Upper Bearing
(8) Lower Bearing
(9) Main Shaft
(10) Carrier Mounting Plate (axed)
(11) Blade Carrier
(12) Cutting Blades
(13) Blade Bolts
(14) Star Lock Washers
(15) Carrier Mounting Bolts
2
3
1
4
5
6
7
8
9
10
11
12
14
13
15
13
12
