COMPONENTS
Cutting Blades BKLS3000002022A
Your Lane Shark is equipped with two 9”x3” double
sided cutting blades (B). Each cutting blade is 1/2” thick and is secured to
the blade carrier by one 2-1/16”x1-1/8” Rotary Cutter Bolt, one 1-1/8” Split
Lock Washer, and one 1-1/8” Rotary Cutter Nut (A). These components
allow the blades to spin freely on the blade carrier (C). Once spinning the
centrifugal force extends the blades to their full extension giving the Lane
Shark a 32” cutting radius.
Periodically Check
• Check for and remove foreign objects wrapped around cutter blades
and blade spindle.
• Check blades to be sure they are not locked or overlapped together.
• Ensure that both blade bolts and center blade carrier hub nuts
are tight.
• Check cutter blades for nicks, bends, breaks, cracks, and sharpness.
Replace or sharpen blades as required.

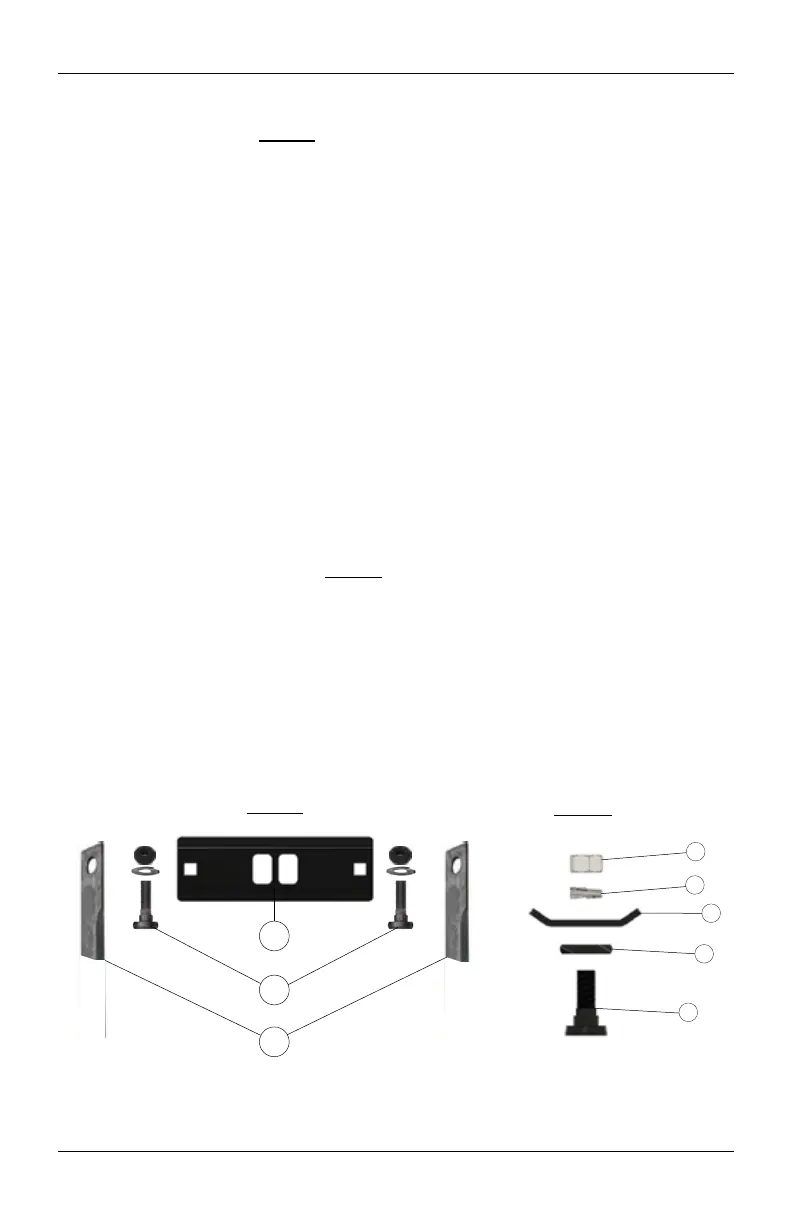

Cutting Blade Attachment
1. 1-1/8” Split Lock Washer
2. 1-1/8” Rotary Cutter Nut
3. Blade Carrier
4. 2-1/16”x1-1/8” Rotary Cutter Bolt
5. 9”x3” Cutting Blade
Figure 2
Figure 1
Figure 2
C
A
B
2
1
3
5
4
Figure 1
