Lane Shark LS-3COMPONENTS

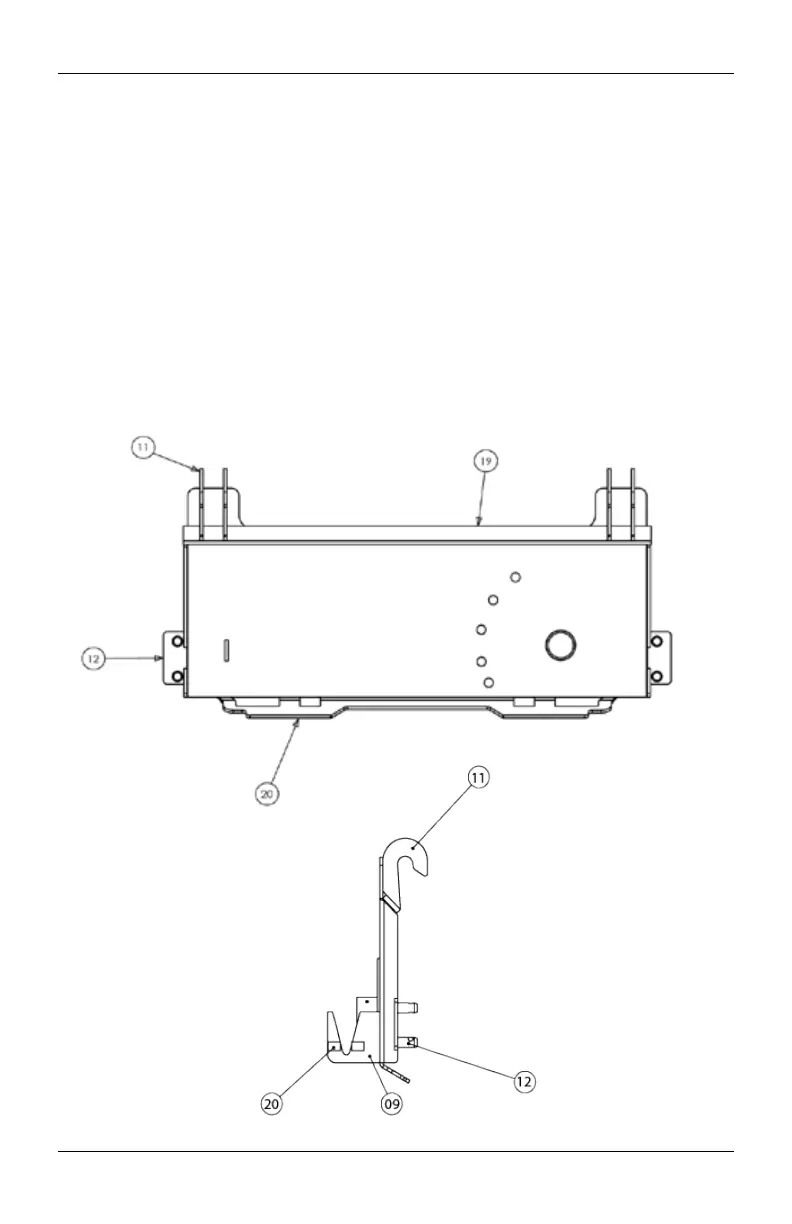

(02) BACKPLATE BPLS3000002022A
The Backplate (02) is the main connection between the LS-3 and
the tractor. The LS-3 supports two types of mounting systems, SSQA and
John Deere Hook and Pin Style. The SSQA is mounted by attaching a SSQA
plate onto the backside of the LS-3 Backplate (02) using the SSQA Top (19)
and Bottom (20) connection points. The Hook & Pin-Style is mounted by
attaching the Mounting Hooks (11) located on the top left and right sides
of the LS-3. Once the Mounting Hooks (11) are attached, the Mounting Pins
(12) located on the lower left and right sides of the LS-3 will then lock the
LS-3 to the Hook & Pin-Style loader.
