Lane Shark LS-3
COMPONENTS

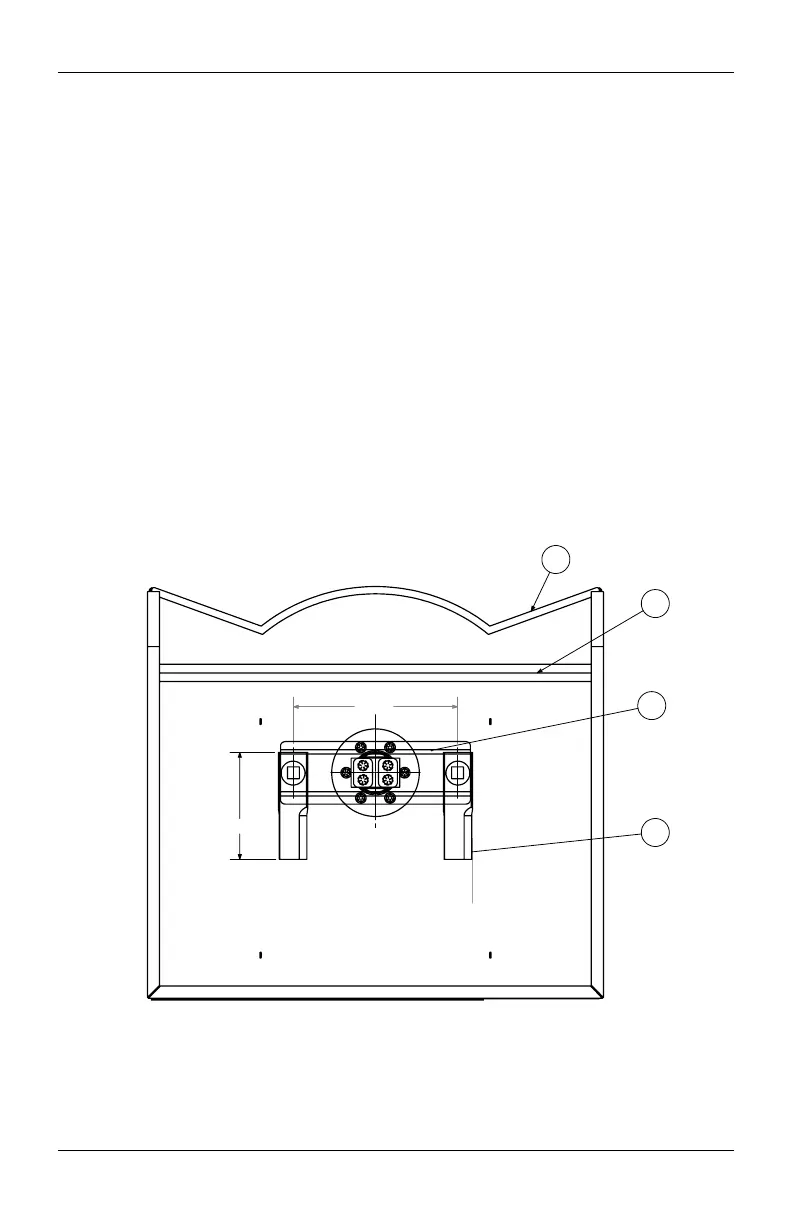

(14) Blade Carrier BCLSS4B0002022A
The Blade Carrier (14) is a U-shaped component roughly seventeen
inches long that attaches the Cutting Blades (17) to the spindle housing.
This allows the Cutting Blades (17) to rotate freely around the spindle
housing. One Cutting Blade (17) is mounted on each end of the Blade
Carrier (14) giving the LS-3 32 inches of overall cutting width. The Deck
Reinforcement (16) is located below the Cutting Deck (01), this keeps
the Cutting Deck (01) structurally sound while in operation. The Deck
Reinforcement Edge (15) is a 1/2 inch thick border that covers the front edge
of the LS-3. This Deck Reinforcement Edge (15) protects the Cutting Deck
(01) from any debris the LS-3 may come in contact with while in operation.
BELOW
15.50
15
16
17
14
16.88
RD ANLE PROETON
± 1° ON ANLES
± .125 ON ALL DMENSONS
TOLERANCES NLESS OTHERWSE SPEFED
SHEET
DRAWN BY
DATE DRAWN
4/7/2022
PART
LS-2017
00
REV.
MAT'L- QTY.-
N/A
pci manufacturing
SE OR ANACTRN ROSES ONL
TLR
DMENSONS ARE N NHES
1 OF 1
15.50
15
16
17
14
16.88
RD ANLE PROETON
± 1° ON ANLES
± .125 ON ALL DMENSONS
TOLERANCES NLESS OTHERWSE SPEFED
SHEET
DRAWN BY
DATE DRAWN
4/7/2022
PART
LS-2017
00
REV.
MAT'L- QTY.-
N/A
pci manufacturing
SE OR ANACTRN ROSES ONL
TLR
DMENSONS ARE N NHES
1 OF 1
