10: Maintenance and Diagnostics Settings

EDS Device Servers User Guide 115

IP Sockets Page

Clicking IP Sockets from one of the Diagnostics pages displays the IP Sockets page.

This read-only page lists all the network sockets on the EDS that are currently open.

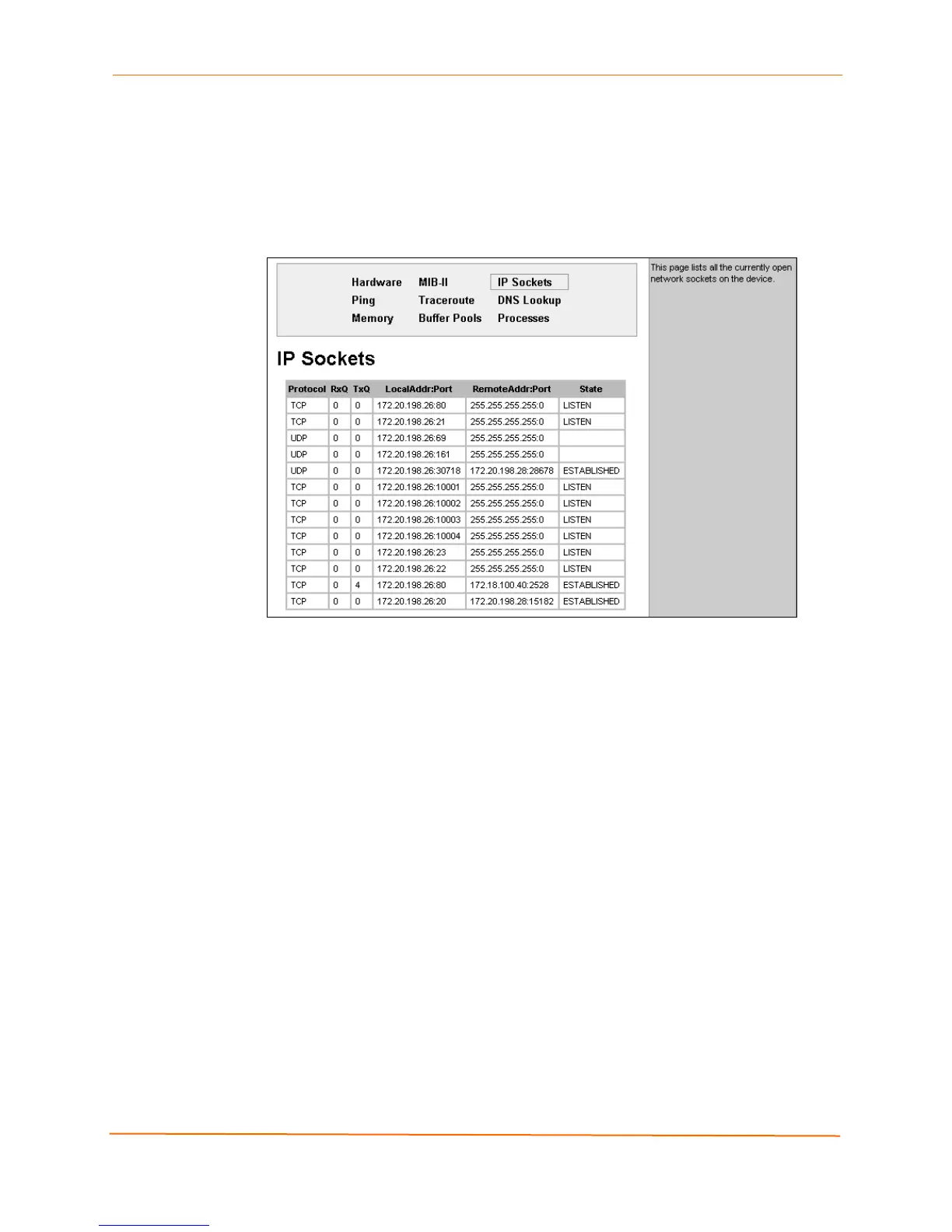

Figure 10-8 IP Sockets Page
