Lantronix EDS32PR User Manual

6: Configuration Using the Web Manager
EDS Device Servers User Guide 45
Understanding the Web Manager Pages

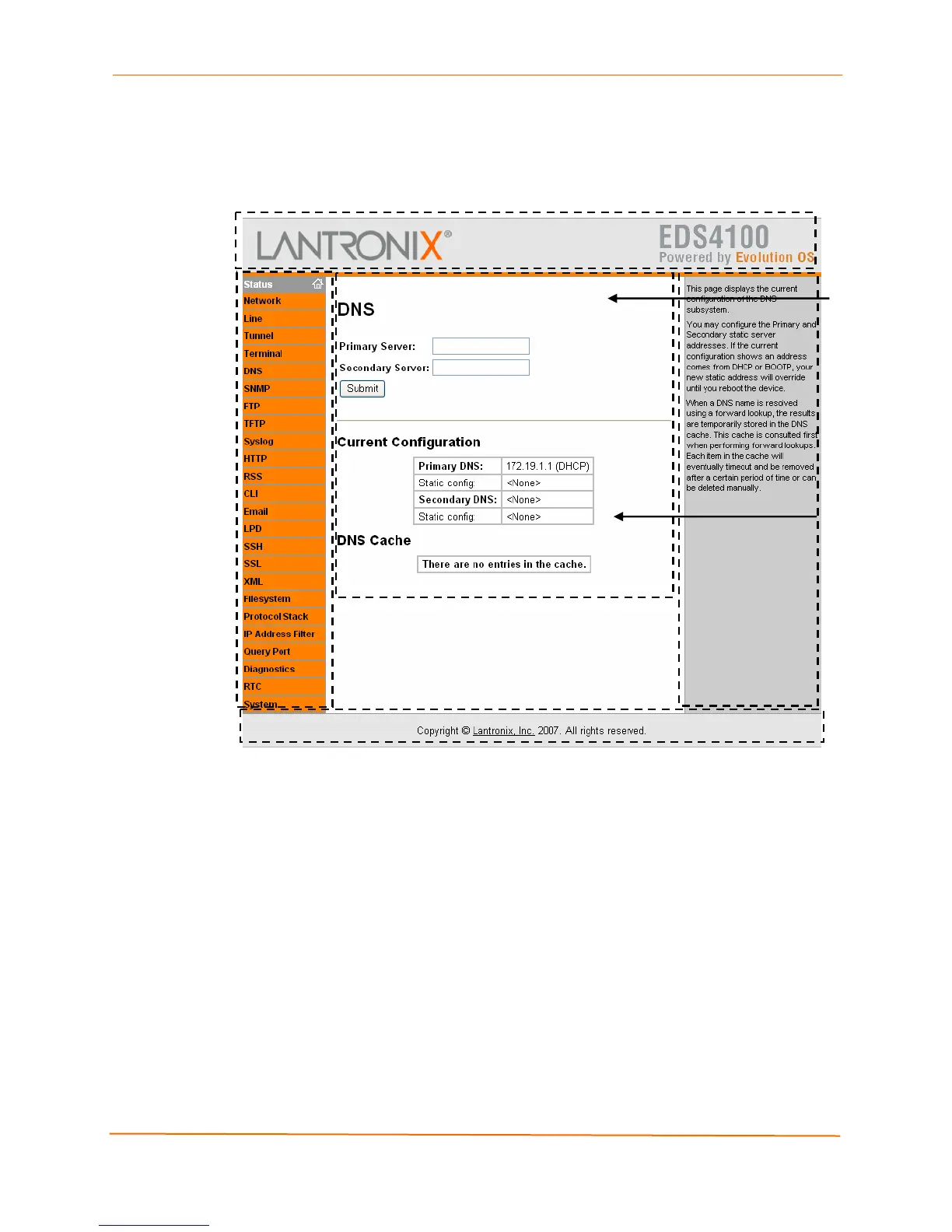

Figure 6-8 shows the areas of the Web Manager page.
Figure 6-8. Components of the Web Manager Page
The header always displays at the top of the page. The header information remains the
same regardless of the page displayed.
The menu bar always displays at the left side of the page, regardless of the page
displayed. The menu bar lists the names of the pages available in the Web Manager. To
display a page, click it in the menu bar.
Current
Configuration
Menu Ba
r
Foote
r
Entry Area
Information
Area
Header

Lantronix EDS32PR Specifications

General

Certification	UL/CUL, FCC, CE, TUV, C-Tick, GS, CB scheme, VCCI FCC Part 15 Statement Class A Device, ICES-003 Class A Device, C-Tick, VCCI, CE Marking, UL-CUL Mark, TUV-GS Mark, RoHS FCC CFR 47 Part 15 Subpart B, ICES-003 Issue 4, AS/NZS CISPR 22, VCCI V-3, EN55022, EN61000-3-2, EN61000-3-3, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11
Networking standards	IEEE 802.3
Serial interface type	RS-232
Serial ports quantity	32
Ethernet LAN data rates	10, 100 Mbit/s
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	SSH
Supported network protocols	HTTP, HTTPS, FTP, TFTP, Telnet, TCP, UDP, LPD, XML, DHCP, SSHv2, SSLv3, SNMPv2, AutoIP, RSS, ARP, ICMP, SYSLOG, AES, SMTP, DNS, BOOTP, Traceroute
Built-in processor	Intel XScale IXP420
Processor frequency	266 MHz
Compatible operating systems	Windows 98/ME/NT/2000/XP/Vista
Flash memory	8 MB
RAM capacity	64 MB
LED indicators	LAN
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	100 - 240 V
Safety	UL 60950-1, CSA-22.2 No.60950-1-03, EN60950-1, CB Report - IEC 60950-1
