E220 Series Cellular Router User Guide 44

D. Tunnel

Graph shows past three minutes average Tunnel traffic and peak Tunnel traffic on the router.

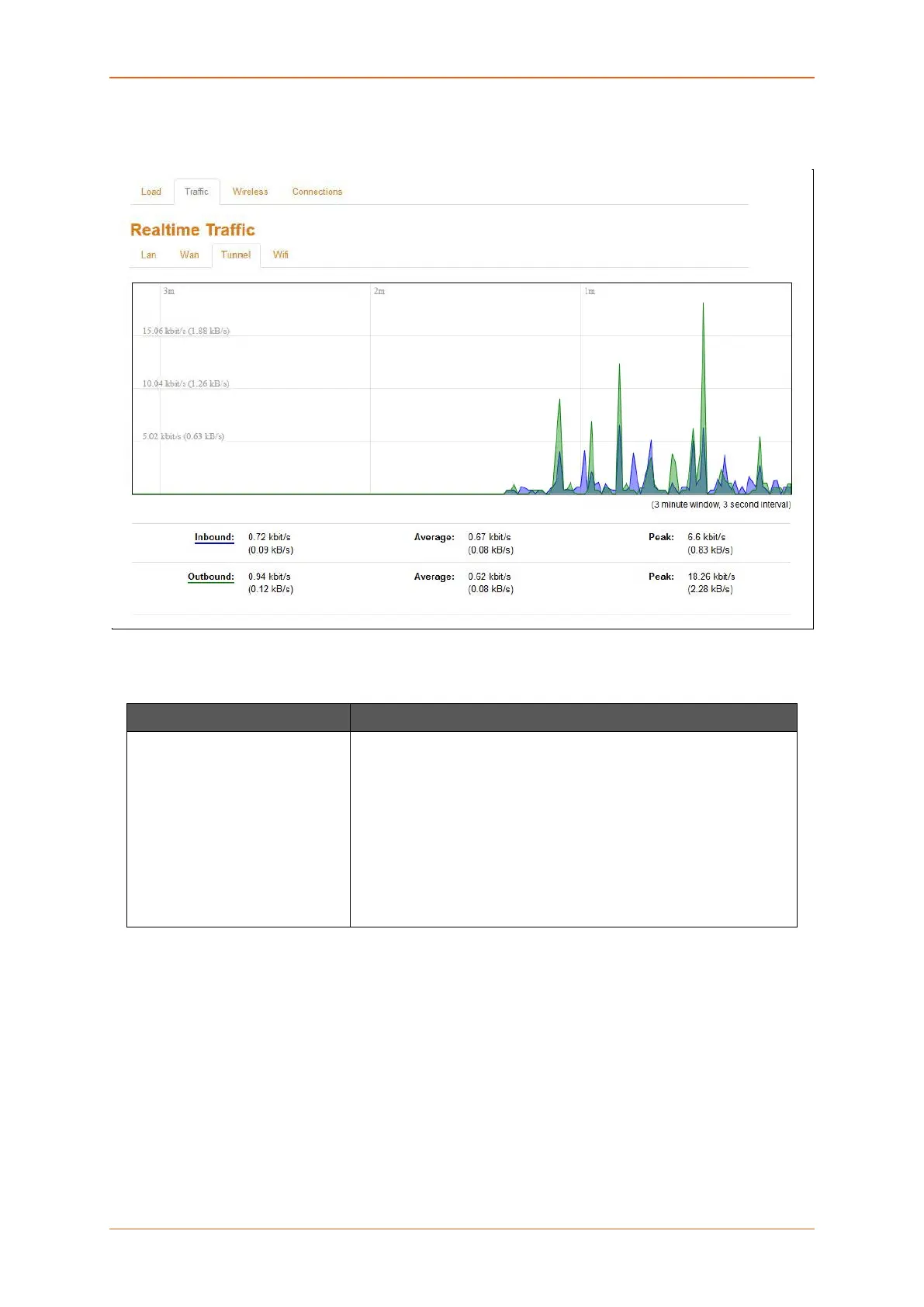

Screen 8-8: Real Time Tunnel Traffic Graph

Parameters Description

Traffic (Inbound / Outbound) Graph shows the periodic average Tunnel Traffic on the Router.

Details

• X axis – Time Interval (1 minute)

• Y axis – Tunnel Traffic (kB/s)

Legends

• Blue – Inbound Traffic

• Green – Outbound Traffic

Table 8.5-6: Real Time Tunnel Traffic Graph
