Pinouts RS-232 DB9 Connectors
C-3
RS-232 DB9 Connectors
The MSS4 DB9 connector also provides an RS-232 serial port.

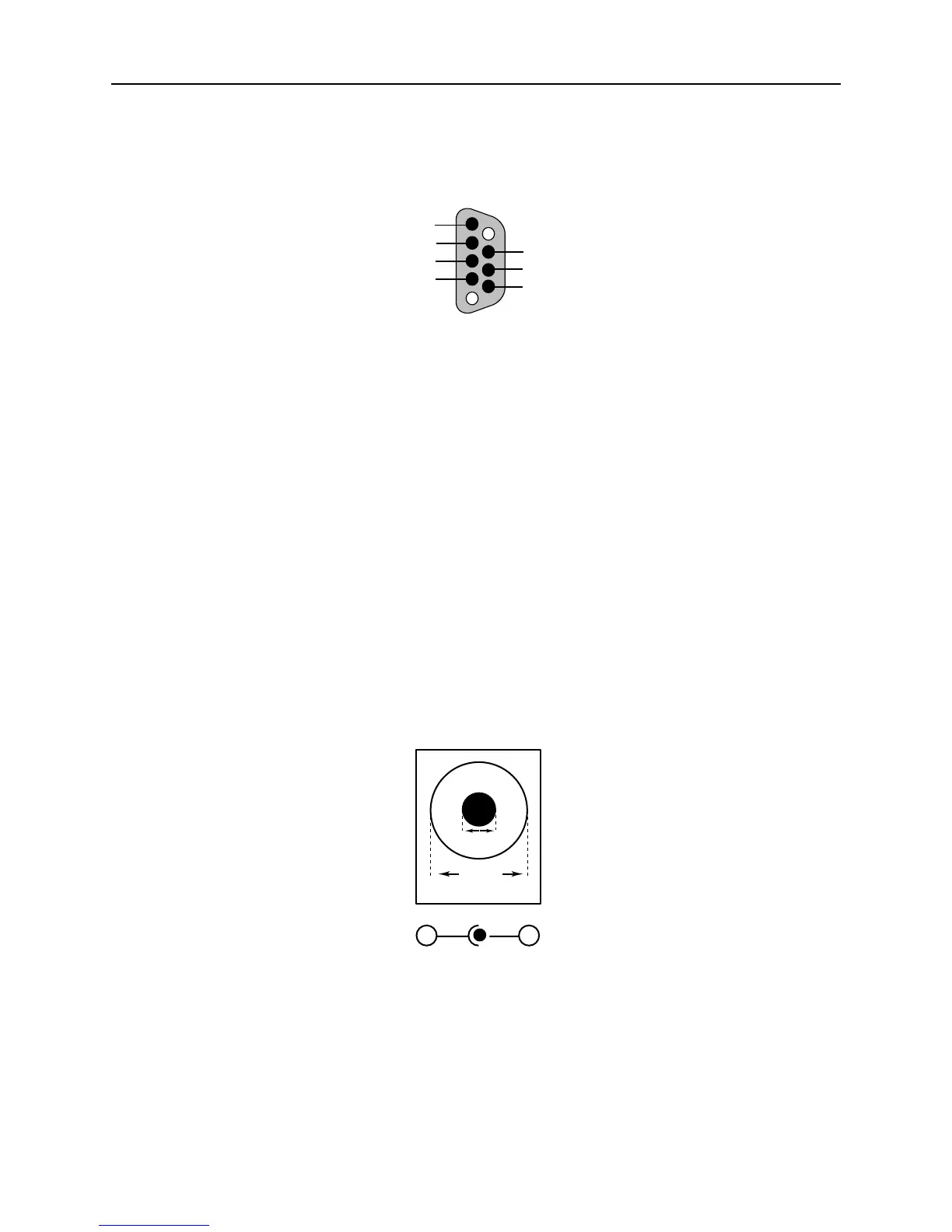

Figure C-6:
DB9 RS-232 Serial Connector
MSS4 PC Card Slots
The MSS4 PC card slots, available on the -DFP and -SFP models, accept Type I/II PC cards. The bottom
slot also accepts Type III cards. The MSS4 software supports IEEE 802.11 wireless networking PC cards,
modem cards, and a selection of ATA storage cards.
For the most current information on which PC card technologies are supported and which cards are
compatible with the MSS4, please refer to the Lantronix web site.
Note:
Changes in firmware revision may affect compatibility.
MSS4 Power Connectors
Power is supplied to the MSS using
one
of the connectors mentioned in this section.
Power Jack
The MSS4 ships with a standard barrel power jack whose inner conductor is positive.
Figure C-7:
Power Jack Connector
5
1
9
6
RX
TX
DTR
CTS
RTS
DSR
Grd.
+
-
2.1 mm
5.5 mm
