LT-3100 User & Installation Manual Rev. 1.06 System Submenus
Lars Thrane A/S www.thrane.eu Page 90 of 155

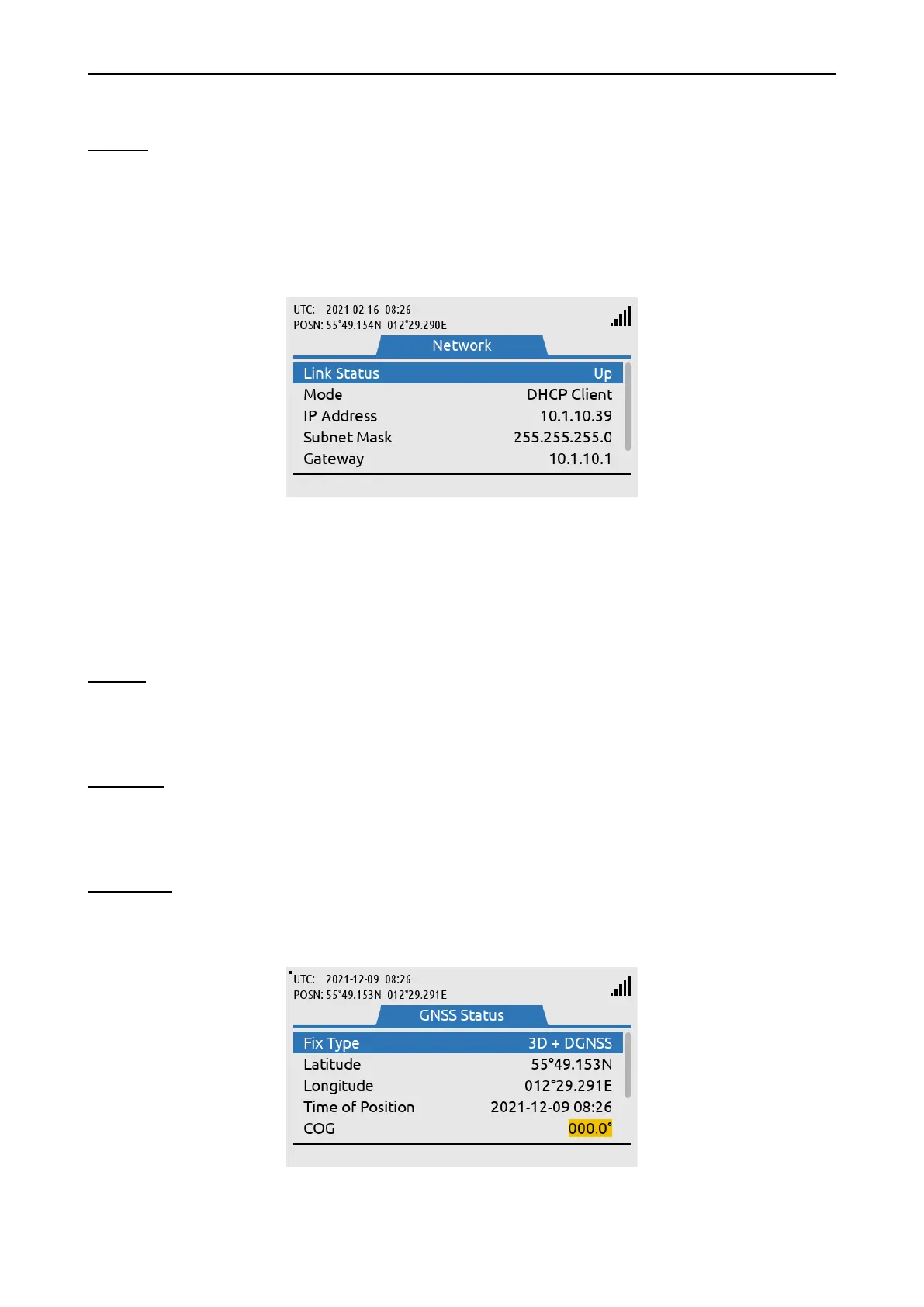

Network
The Network provides an overview for the user of the LT-3100 system of the IP network configuration and
setup. The LT-3100 system can be configured to: DHCP Client, DHCP Server, and Static IP address. The link
status will provide the user with information about and whether an IP connection is established to the LT-
3110 Control Unit. The IP address of the LT-3110 Control Unit is provided under the IP Address parameter
illustrated in Figure 125.
NOTE: Use the IP Address to access the built-in web server. Instructions to access the built-in web
server is provided in Accessing the built-in web server on page 101.
Tracking
The Tracking functionality is described and illustrated in Tracking on page 71.
SIP Phones
The SIP Phones functionality is described and illustrated in External SIP Phones on page 65.
GNSS Status
The Position Status provides an overview for the user of the LT-3100 system built-in GNSS receiver. The
GNSS receiver can be configured from the web server, see GNSS and BAM on page 124.
Figure 125: System submenu (Network)
Network:
MENU -> System ->
Network
Figure 126: System submenu (GNSS Status)
GNSS Status:
MENU -> System -> GNSS
Status
(upper view)
