External – I/O
The LT-3100 system support configuration of External I/O. The LT-3100 system has one input and one
output supported in the AUX connector. The AUX connector is described in Auxiliary (AUX) on page 31.
Figure 163 is illustrating the configuration of the External I/O.
Output
The External I/O output configuration options are listed in Table 31.
Input
The LT-3100 system is currently not supporting the External I/O input.

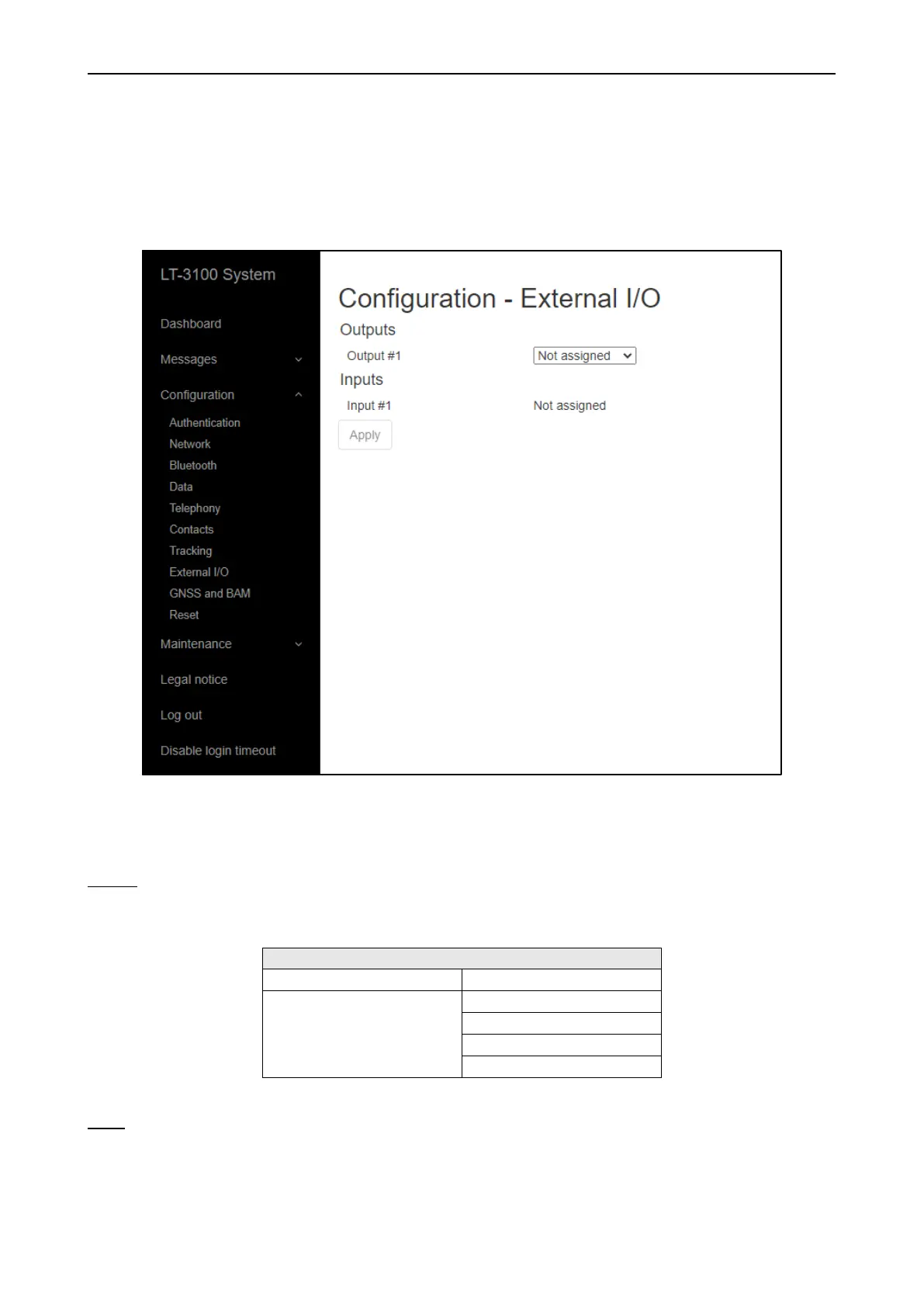

Figure 163: Web server – External I/O
External I/O – Output Configuration
Not assigned
External Ringer
Level
Pulse @ 0.5 Hz
Pulse @ 1 Hz
Pulse @ 2 Hz
Table 31: External I/O - Output
