LT-3100 User & Installation Manual Rev. 1.06 Installation and Mounting
Lars Thrane A/S www.thrane.eu Page 12 of 155
To avoid breaking the LT-3130 Antenna Unit N-connector (female), it is important not to use tooling when
connecting and fastening the coaxial cable N-connector (male) to the antenna unit. The coaxial cable N-
connector thread nut must be fastened by hand only.
IMPORTANT: Maximum allowed torque is 2 Nm when connecting the coaxial cable N-connector (male) to
the N-connector (female) of the LT-3130 Antenna Unit. No tooling must be used for
fastening the coaxial cable thread nut as illustrated in Figure 11 above.

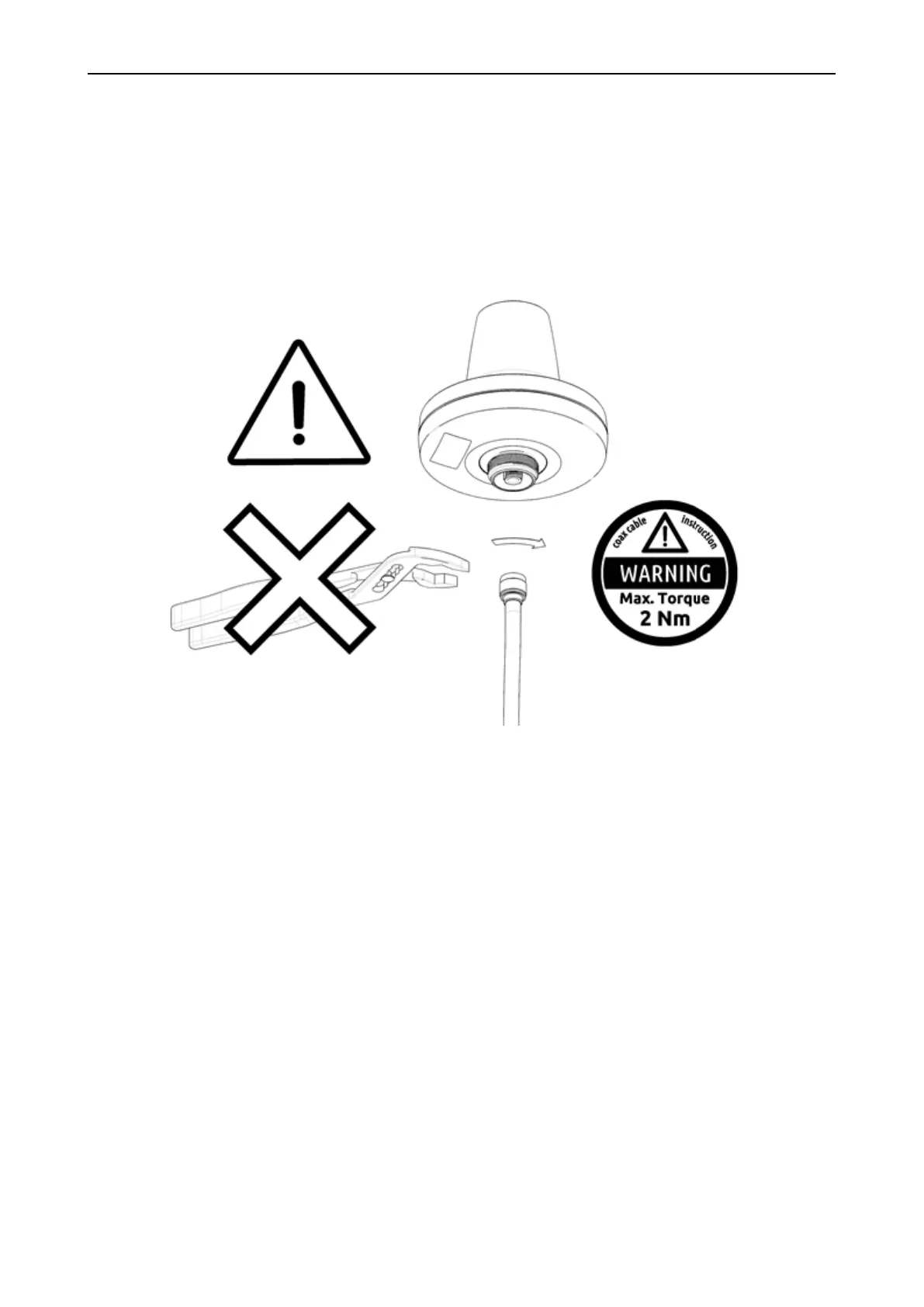

Figure 11: Connecting coaxial cable N-connector to the LT-3130 Antenna Unit
