LT-3100 User & Installation Manual Rev. 1.06 Installation and Mounting
Lars Thrane A/S www.thrane.eu Page 17 of 155
NOTE: The LT-3130 Antenna Unit must be mounted with a -2° clear view angle below the
horizontal plan (fore and after directions), where no obstructions must block the Iridium
satellite signal, to maintain full functionality under extreme pitch conditions. Also, the
upper hemisphere must be without any blockages to the Iridium satellites.
IMPORTANT: For best possible performance of the LT-3100 system, the LT-3130 Antenna Unit must have
free line of sight to the Iridium satellites as illustrated in Figure 16 and in Figure 17 (clear
view angle below the horizontal plan). To have the best possible obstructions should be
below the marked lines of these two illustrative figures.

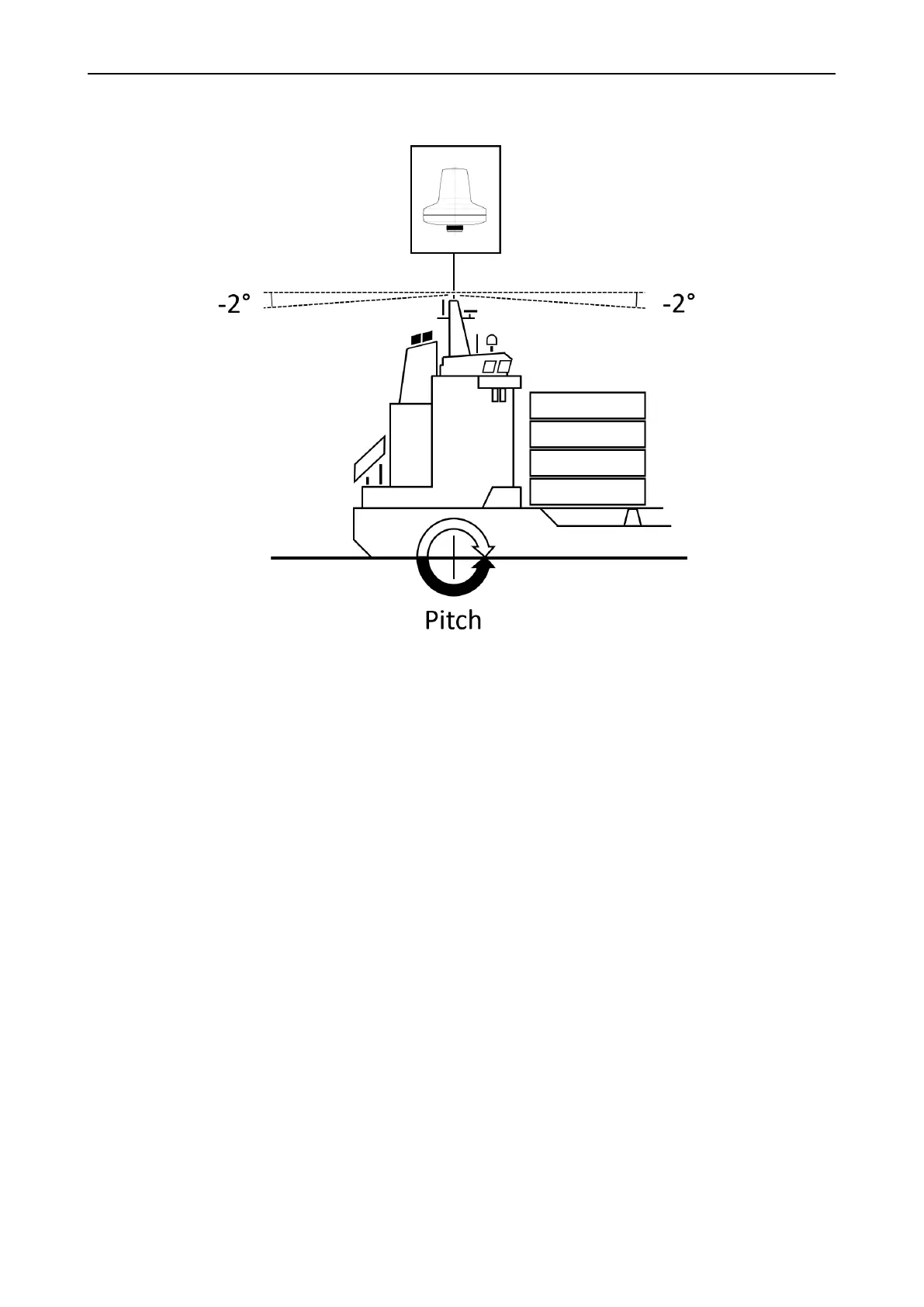

Figure 17: LT-3130 AU Installation (pitch: clear view angle below the horizontal plan)
