LT-3100 User & Installation Manual Rev. 1.06 User Interface (UI)
Lars Thrane A/S www.thrane.eu Page 44 of 155

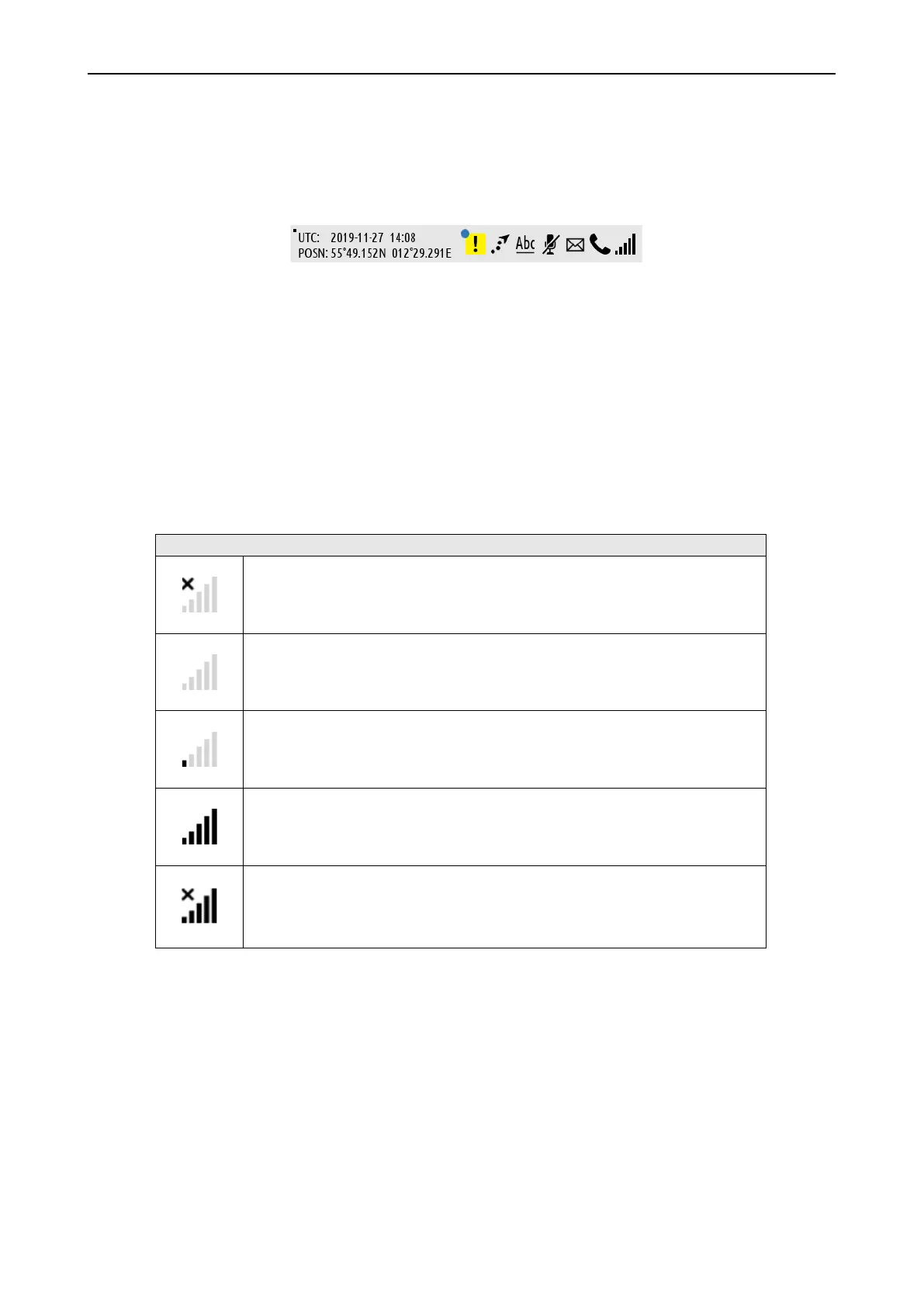

The status bar has a dedicated section for presenting time and position and 7 slots for system status icons.
NOTE: The status bar contains a flashing square in the upper left corner to verify that the display
never freezes, see Figure 44 on page 44. The flashing square is always visible on the display.
Each slot shows the status of one function or group of functions. If a group of functions in a slot has more
than one active icon, the slot will continuously take turn showing one icon at a time for a few seconds
before cycling to the icon of the next function.
Time & Position Slot
7 6 5 4 3 2 1
Figure 44: LT-3110 Control Unit - UI (status bar)
Network Status – Slot 1
The LT-3100 system has no satellite signal and is not registered on the
Iridium® Network.
The LT-3100 system has satellite signal = 0 and is registered on the
Iridium® Network.
The LT-3100 system has satellite signal = 1 and registered on the
Iridium® Network.
The LT-3100 system has satellite signal = 5 and registered on the
Iridium® Network.
The LT-3100 system has satellite signal = 5 and unregistered on the
Iridium® Network.
Table 10: LT-3110 Control Unit - UI network status
