April 8, 2011 HN FAQ Memo, Version 3.0 Page 21 of 108

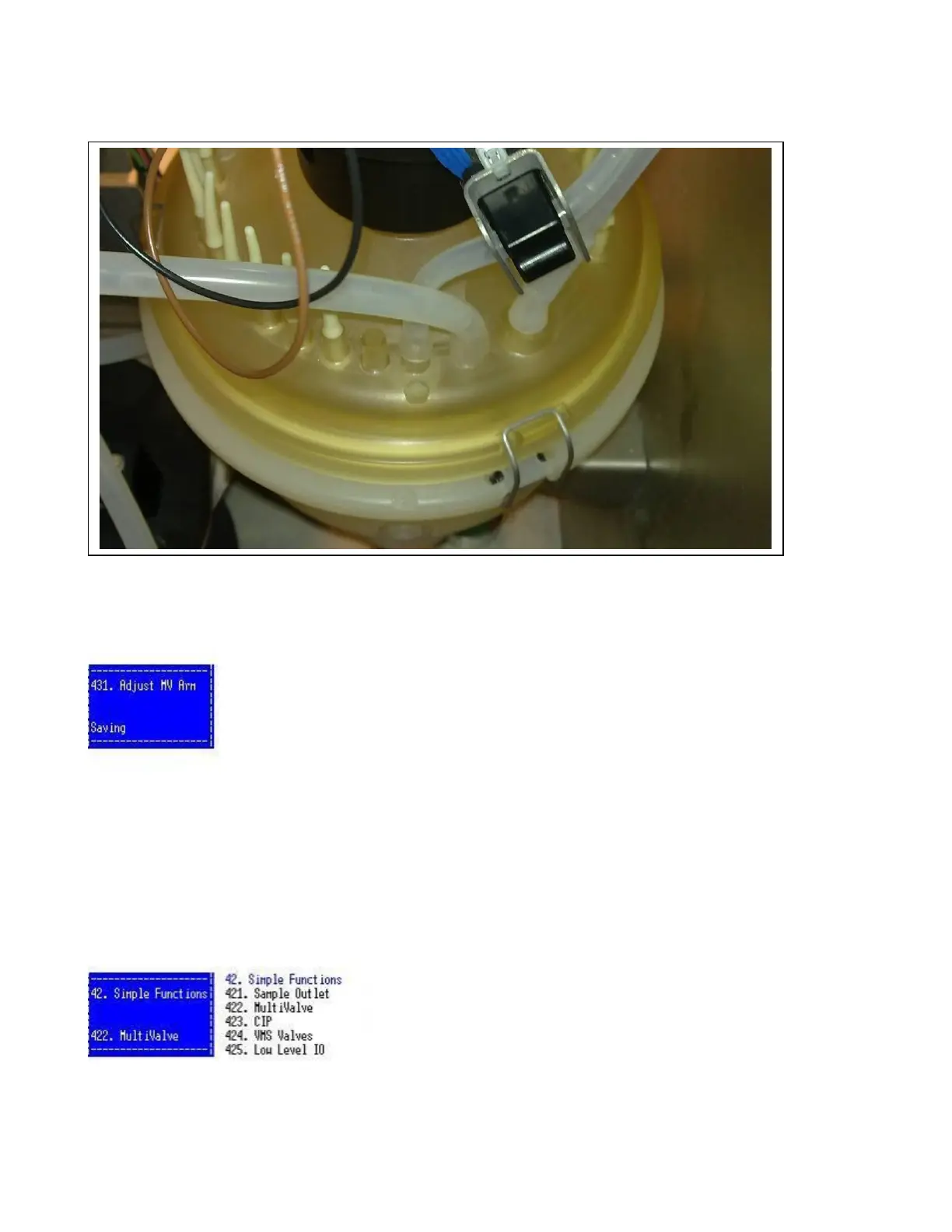

Note the position of the arm in relation to the stud at pos.1. The tube should be centered with the stud.
- if the arm is to far to the left, the offset value has to be decreased.
- if the arm is to far to the right the offset value has to be increased.
Use the ↑
(arrow up)
and ↓
(arrow
down) to
change the
Offset
setting.
When you
have release
the arrow
key, the arm
lift will be
released and
the arm
moved to the
new Offset
position, and
lifted again.
Continue until the arm is correct positioned (centered) at the stud at pos.1.
Press Enter and the Offset value vill be saved.
The Offset from index value is now set.
3.1.5.2 Check of Adjustment.
After adjustment the position has to be checked.
Press the ← (arrow left) and 2 to move to simple functions menu.
Stud 1, and tube on
MV arm has to be
centered.
