3.1.7.3 BD5 installation in parlor SI

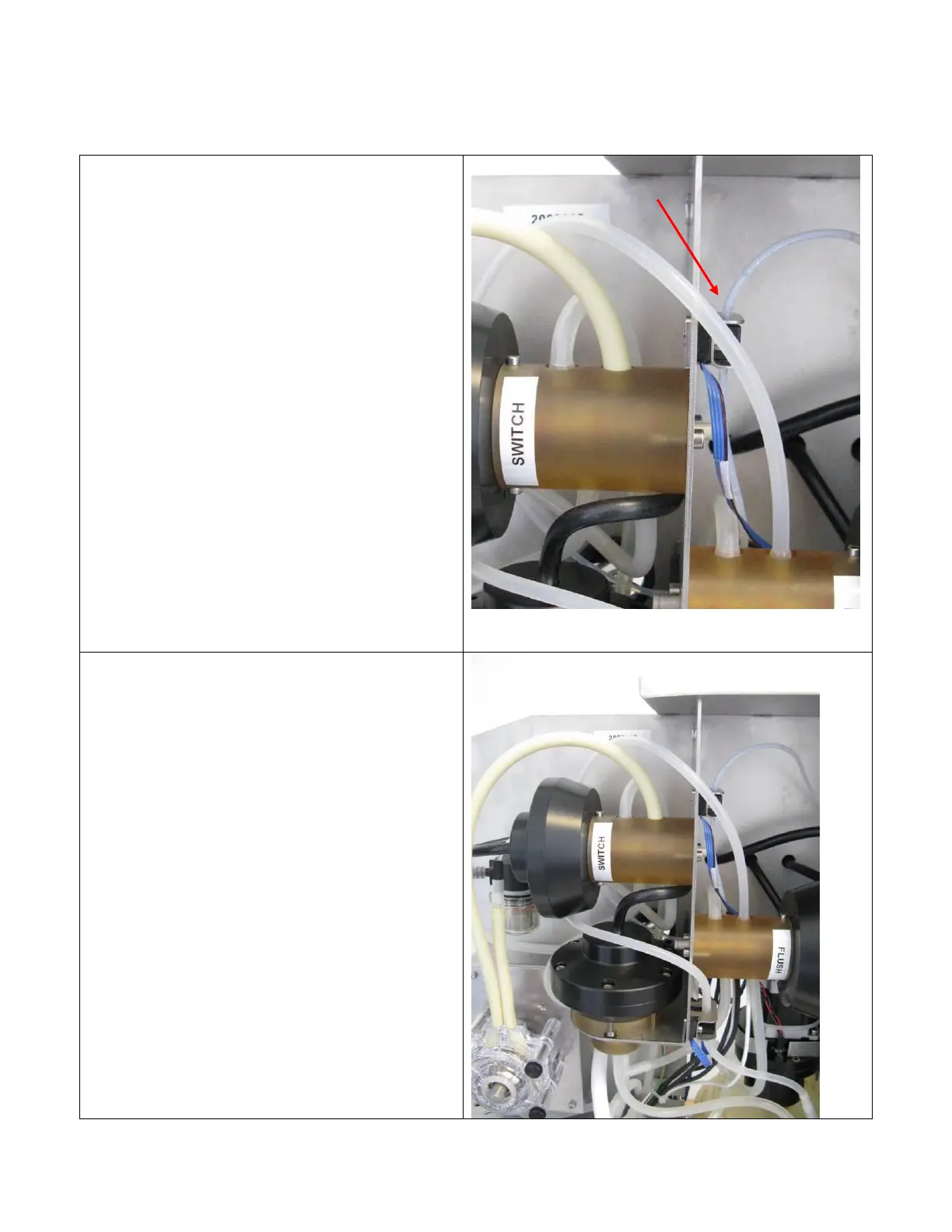

BD5 is mounted on the tube as described in
appendix 1-2.. The sensor is mounted on the
valve bracket as shown, through the existing
holes above the filter flush valve. Both the tube
end and the sensor cord should go out from
beneath the sensor.
The tube goes through the hole in the valve
bracket and is connected to the pump (see
picture for VMS installation). Earlier models are
without a hole in the bracket and therefore the
tube has to go around the bracket instead.
Upgrade kit BOM:
2 x M3x12 allen screws pn: 00219147
