Lattice Semiconductor MIPI User Manual

MIPI DSI to OpenLDI/FPD-Link/LVDS Interface Bridge Soft IP
User Guide
© 2016 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal. All other brand or product names are
trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
18 FPGA-IPUG-02003-1.2

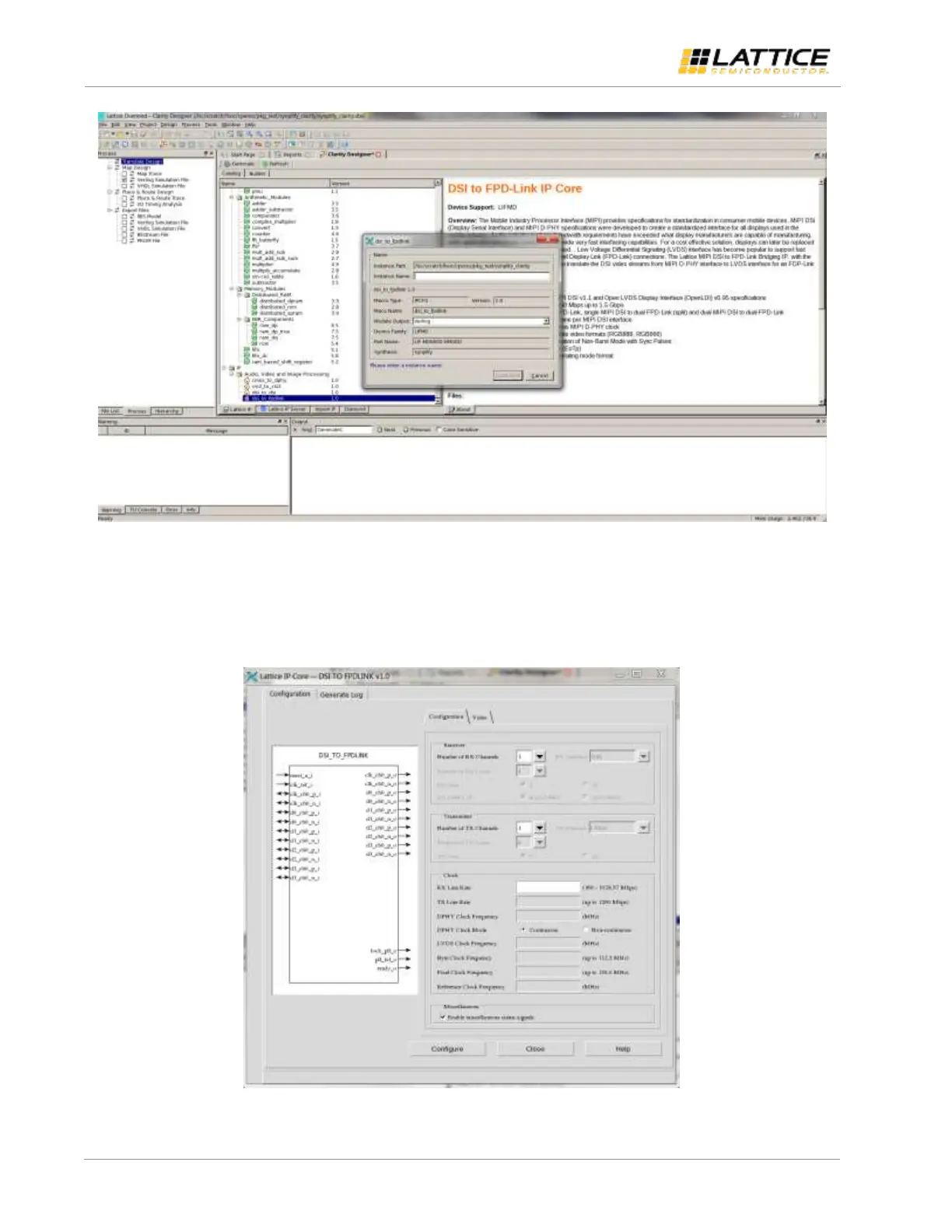

Figure 4.3. Configuring MIPI DSI to OpenLDI/FPD-Link/LVDS Interface Bridge IP in Clarity Designer
2. Enter the Instance Name.
3. Click the Customize button. An IP configuration interface is displayed as shown in Figure 4.4 and Figure 4.5. From
this dialog box, you can select the IP parameter options specific to your application. The parameters are grouped
into two tabs: Configuration and Video.
Figure 4.4. Configuration Tab in IP GUI
