MIPI DSI to OpenLDI/FPD-Link/LVDS Interface Bridge Soft IP
User Guide
© 2016 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal. All other brand or product names are
trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
FPGA-IPUG-02003-1.2 19

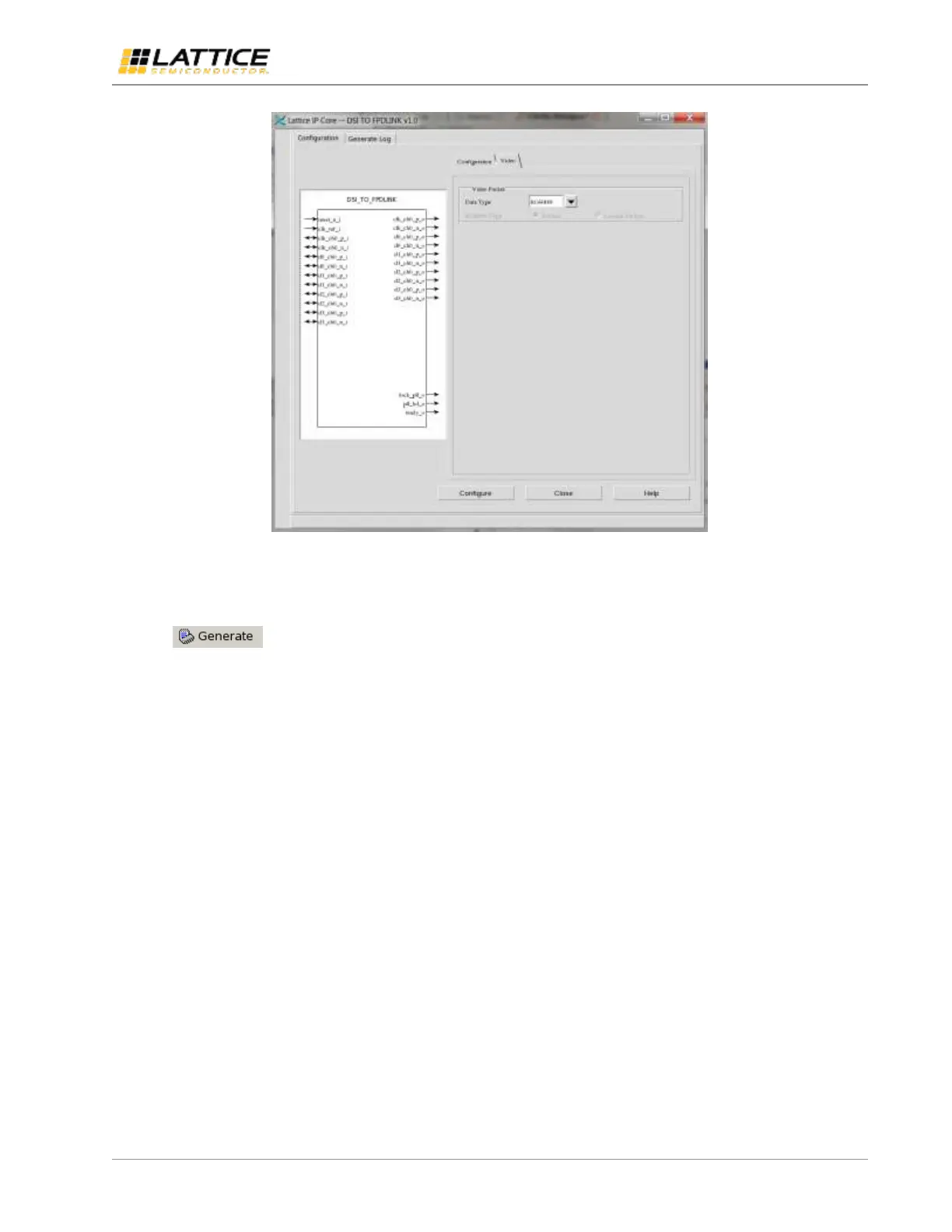

Figure 4.5. Video Tab in IP GUI
4. Select the required parameters, and click the Configure button.
5. Click Close.
6. Click in the toolbox. Clarity Designer generates all the IPs and modules, and creates a top module to
wrap them.
For detailed instructions on how to use the Clarity Designer, refer to the Lattice Diamond software user guide.
