X-431 Throttle User Manual
98

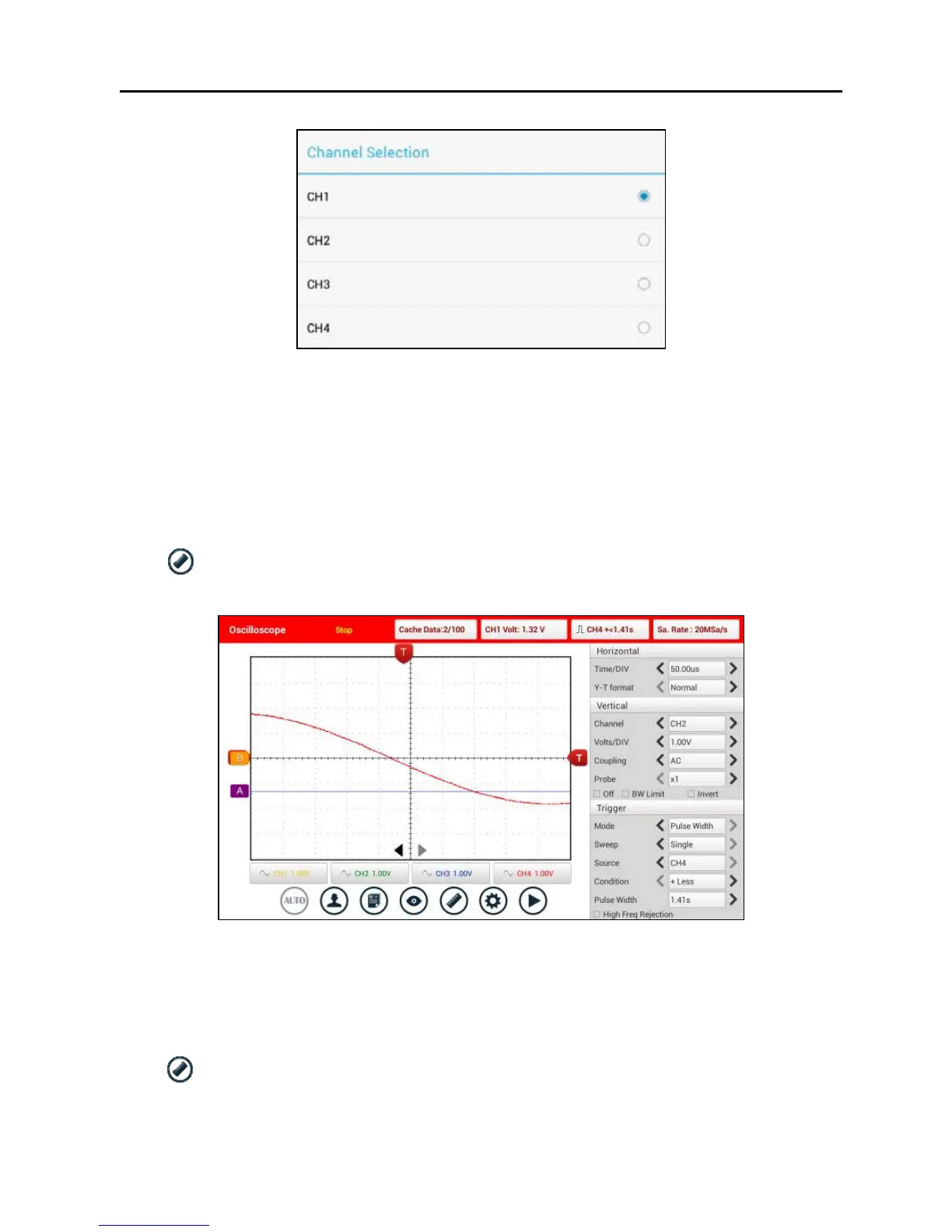

Fig. 12-10
<2> Horizontal / Vertical measure
Horizontal Measure / Vertical Measure are used to measure voltage parameter
and time parameter respectively. Drag A line upwards or downwards to control
voltage. Move A line left or right to fine-tune timebase. A line is a solid line and B
line is a dotted line.
Tap
and then [Horizontal Measure], a screen similar to Fig. 12-11 will
appear.
Fig. 12-11
Note: If no desired channel is selected, the system will take the current source as the
default channel.
<3> Clear measure
Tap
and then [Clear Measure], the system will clear the measurement result
on screen.
