PowerTrace Serial User´s Guide 6
©1989-2018 Lauterbach GmbH

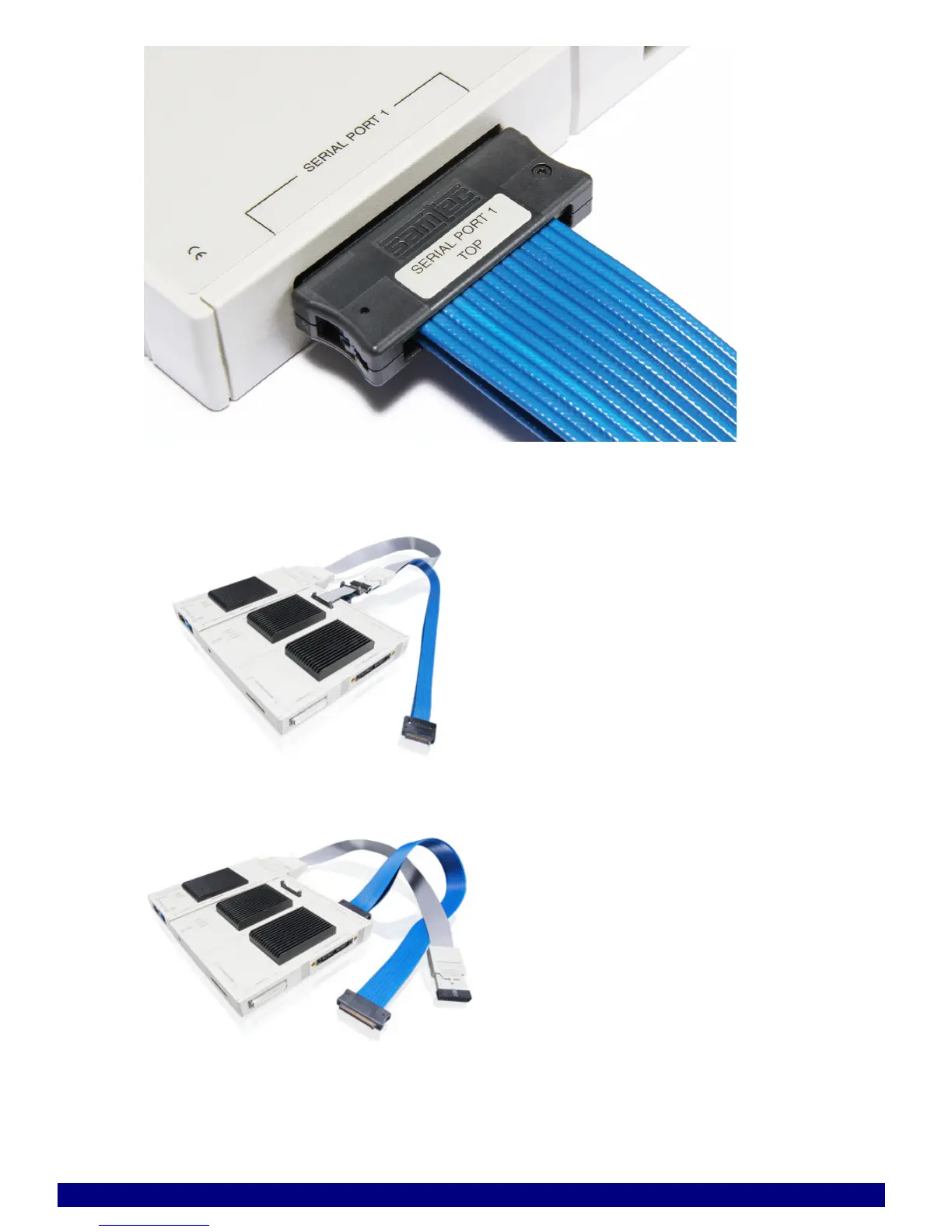

The flex cables are labeled to make the installation easier:
Serial Port 0: The debug cable can be connected to the PowerTrace Serial module or directly to the
target depending on the target trace connector pin-out.
Serial Port 1: The debug cable must be connected to the target directly or
