Lauterbach PowerTrace Serial - Adapter for Mini-PCIe (LA-3526)

PowerTrace Serial User´s Guide 1 1
©1989-2018 Lauterbach GmbH
Adapter for Mini-PCIe (LA-3526)

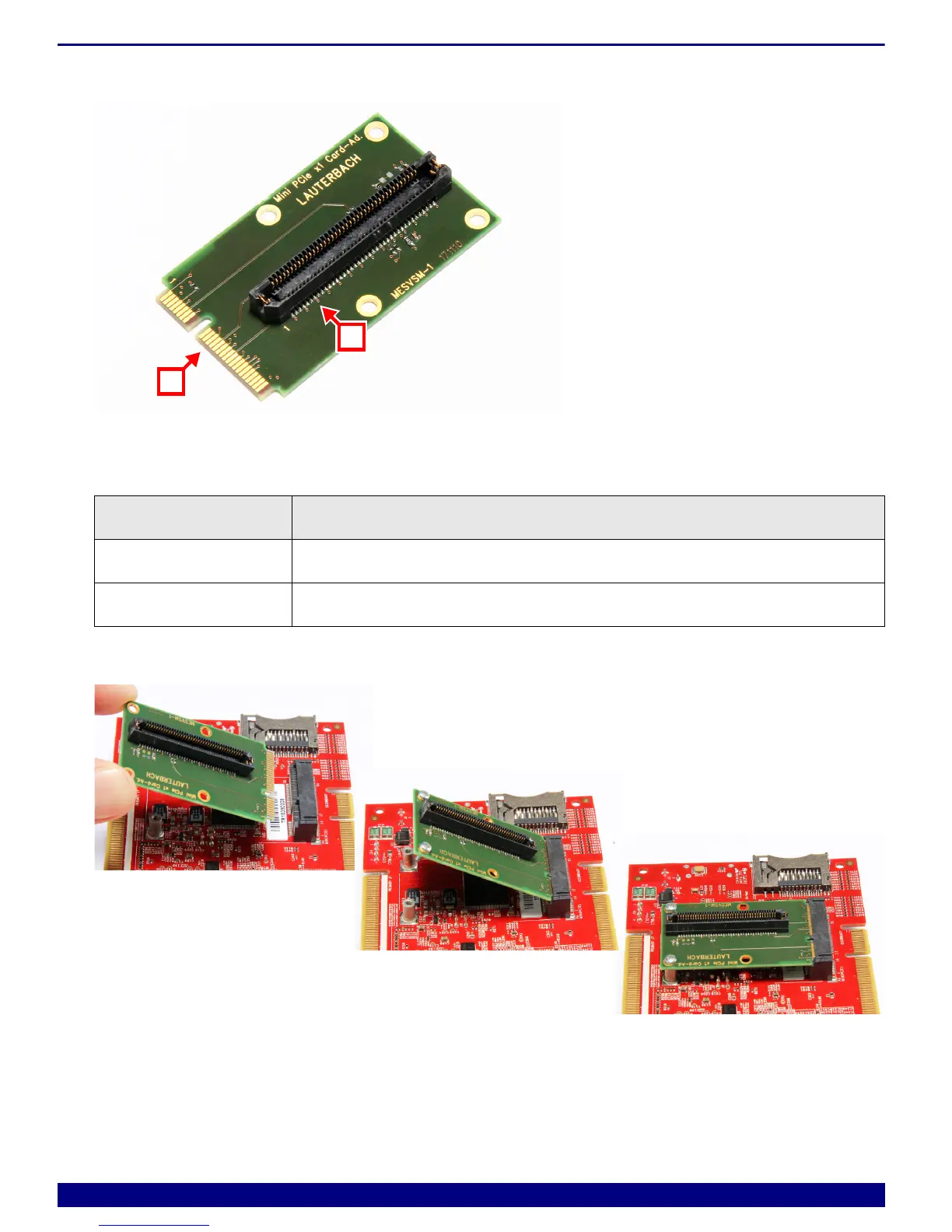

The passive adapter card is used to adapt PC-like targets with trace data coming via MiniPCIe connectors.
Insert the adapter carefully.
Connector Function
A MiniPCIe edge connector
B PowerTrace Serial connector for Serial Port 1
A
B
