PowerTrace Serial User´s Guide 1 7

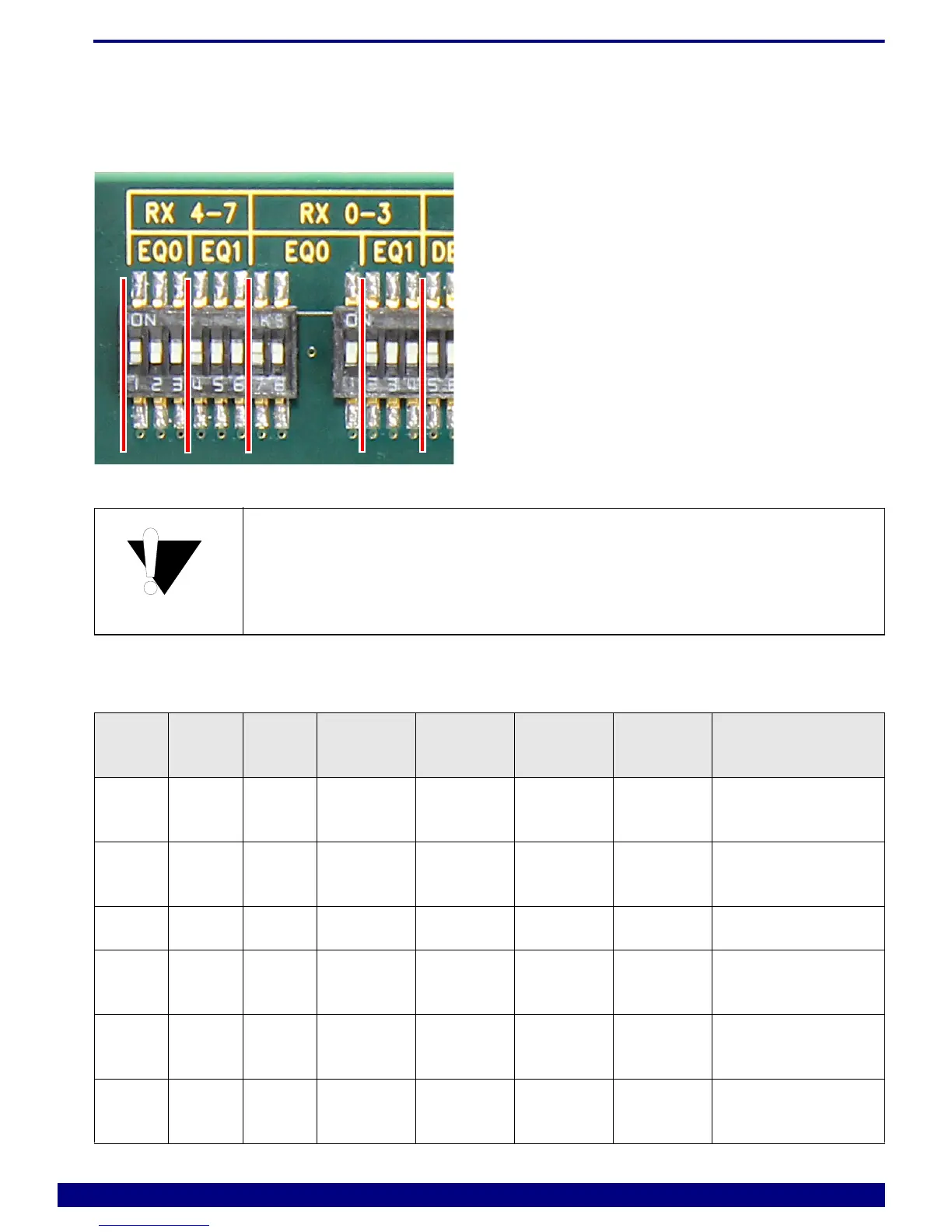

Configuration Switches

Equalization and Deemphasis can be configured separately for RX lane [0-3] and RX lane [4-7] and

TX lane [0-3] and TX lane [4-7]. The configuration switches are grouped and can be set to on (1) and off (0).

Three switches form a mutual group, e.g. switch[1..3]=> parameter EQ0. Within a group only one switch

must be on.

Driver settings for RX and TX will match in most cases.

# EQ0 EQ1 dB at

1.5GHz

dB at

2.5GHz

dB at

4GHz

dB at

6GHz

Suggested for

1 100 100 2.5 3.5 3.8 3.1 FR4 and less than

5inch traces

2 010 100 3.8 5.4 6.7 6.7 FR4 5-10inch

traces

3 000 100 5.0 7.0 8.4 8.4 FR4 10inch traces

4 001 100 5.9 8.0 9.3 9.1 FR4 15-20inch

traces

5 100 010 7.4 10.3 12.8 13.7 FR4 20-30inch

traces

6 010 010 6.9 10.2 13.9 16.2 FR4 25-30inch

traces
