PowerTrace Serial User´s Guide 9

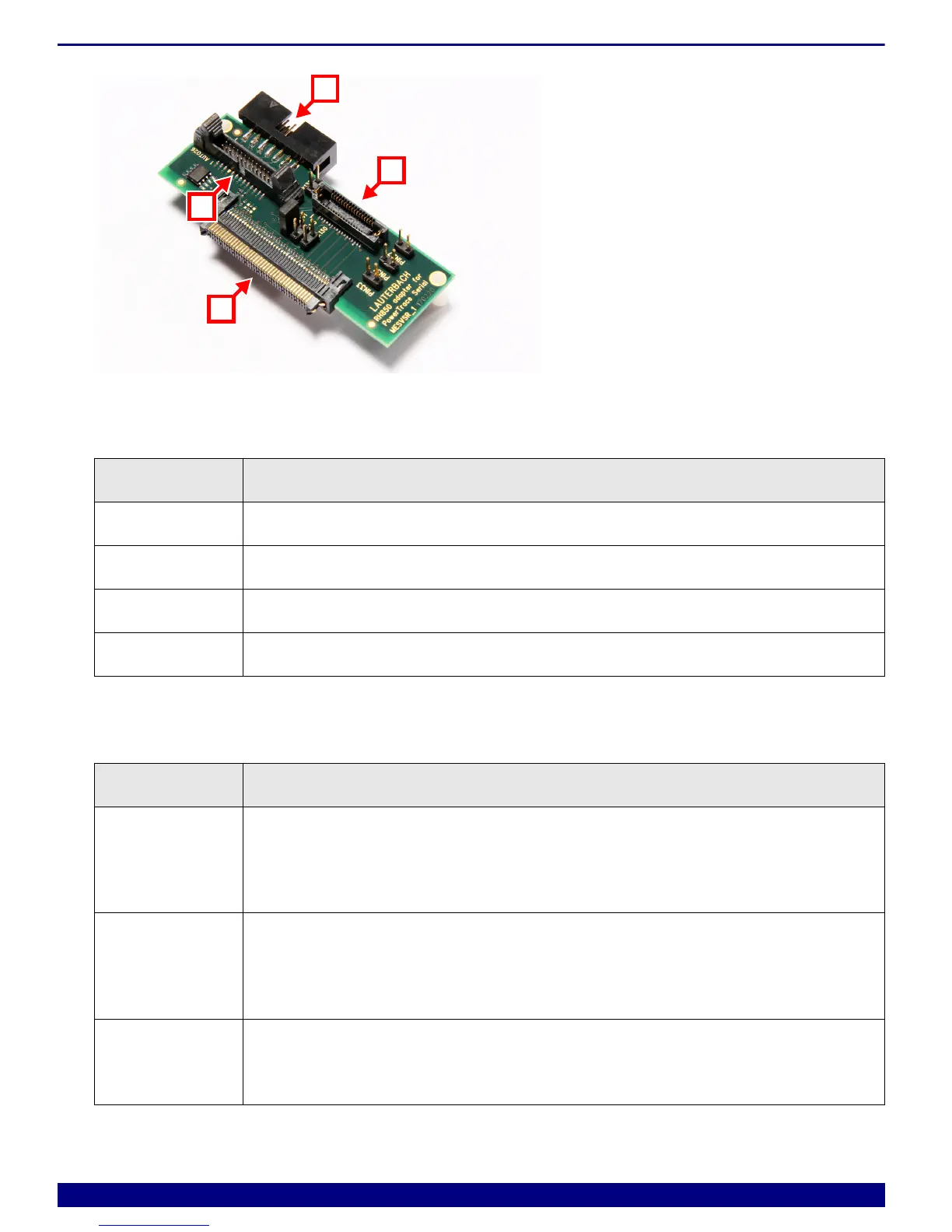

Adapter for RH850 (LA-3561)

Connector Function

A AUTO26 debug connector

B JTAG14 debug connector

C Target connector

D PowerTrace Serial connector for Serial Port 1

Jumper Function

X130 Set: Connects pin 16 (EVTI) of the target connector to TRIGOUT of

PowerTrace Serial

Open: EVTI not connected

X131 Set: Connects pin 18 (EVTO) of the target connector to TRIGIN of

PowerTrace Serial

Open: EVTO not connected

X132 DO NOT SET!

Pin 1: Connected to pin 34 of the target connector (RESOUT)

Pin 2: GND
