9 User Manual - LCR Elite2 - ver 1.3
3. After a couple of seconds, the short calibration is completed. Figure 2-7 shows on the display. Please keep
the tips open and press the navigation button to start the open calibration.

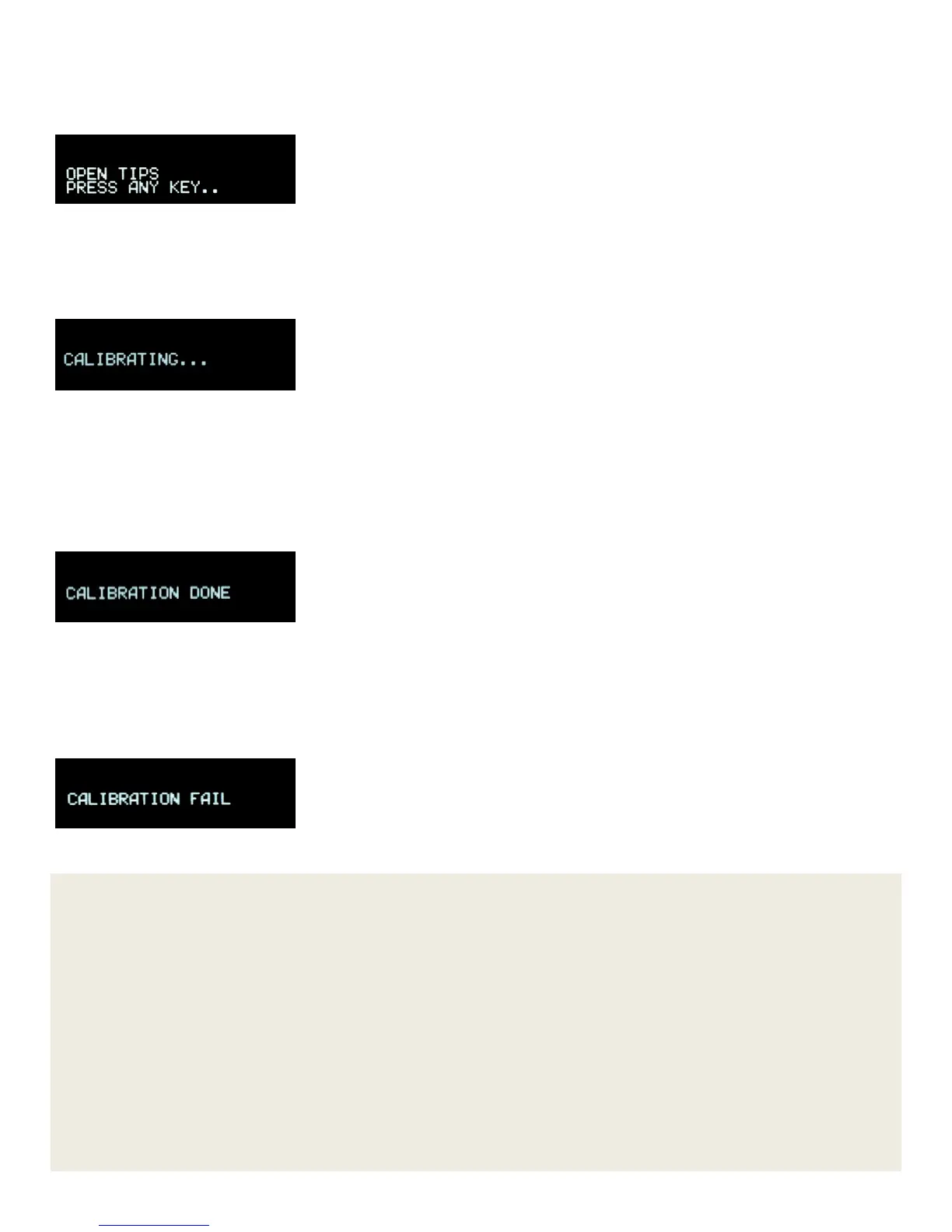

Figure 2-7: Start Open Calibration
4. Once the navigation button is pressed, Figure 2-8 shows on the display indicating open calibration is in
progress.
Figure 2-8: Calibration in Progress
5. After a couple of seconds, the open calibration is completed. If the result is good, a calibration done
message will be on the display as Figure 2-9 shows. It indicates the whole self-calibration process is
completed. Such message stays on the display for 1 second or so, then the meter will automatically return to
the measurement screen.
Figure 2-9: Calibration Completed
6. If the result is out of range, a fail message will be on the display as Figure 2-10 shows. Then the meter will
automatically return to the measurement screen. If necessary, please start the self-calibration process again
from the beginning.
Figure 2-10: Calibration Failed
NOTE
(1) It is recommended that the user performs open/short calibration before making precision measurements.
(2) When doing short calibration, please always keep the tips shorted firmly. The calibration process may fail if
the tips are in poor contact condition during the short calibration process.
(3) The distance between the tips creates small parasitic capacitance. When such distance varies (i.e. measuring
components with different sizes), the parasitic capacitance varies as well. Therefore, when doing open
calibration, please keep the tip distance as close as possible to the actual size of the component to be
measured. It can compensate for the parasitic capacitance most accurately.
(4) After the battery is completely dead or hardware reset is performed, all the self-calibration data will be
removed. Please perform self-calibration again if necessary.
