11 User Manual - LCR Elite2 - ver 1.3
Secondary Parameter Menu
The following settings can be selected in Secondary Parameter menu and the default setting is Rs-Rp.
Rs-Rp: the meter displays series resistance (Rs) or parallel resistance (Rp). If the circuit mode is selected
as series, Rs will be displayed. If the circuit mode is selected as parallel, Rp will be displayed.
D-Q: the meter displays dissipation factor (D) or quality factor (Q). If a capacitor is being measured, D
will be displayed. If an inductor is being measured, Q will be displayed.
Exit: Return to the measurement display.

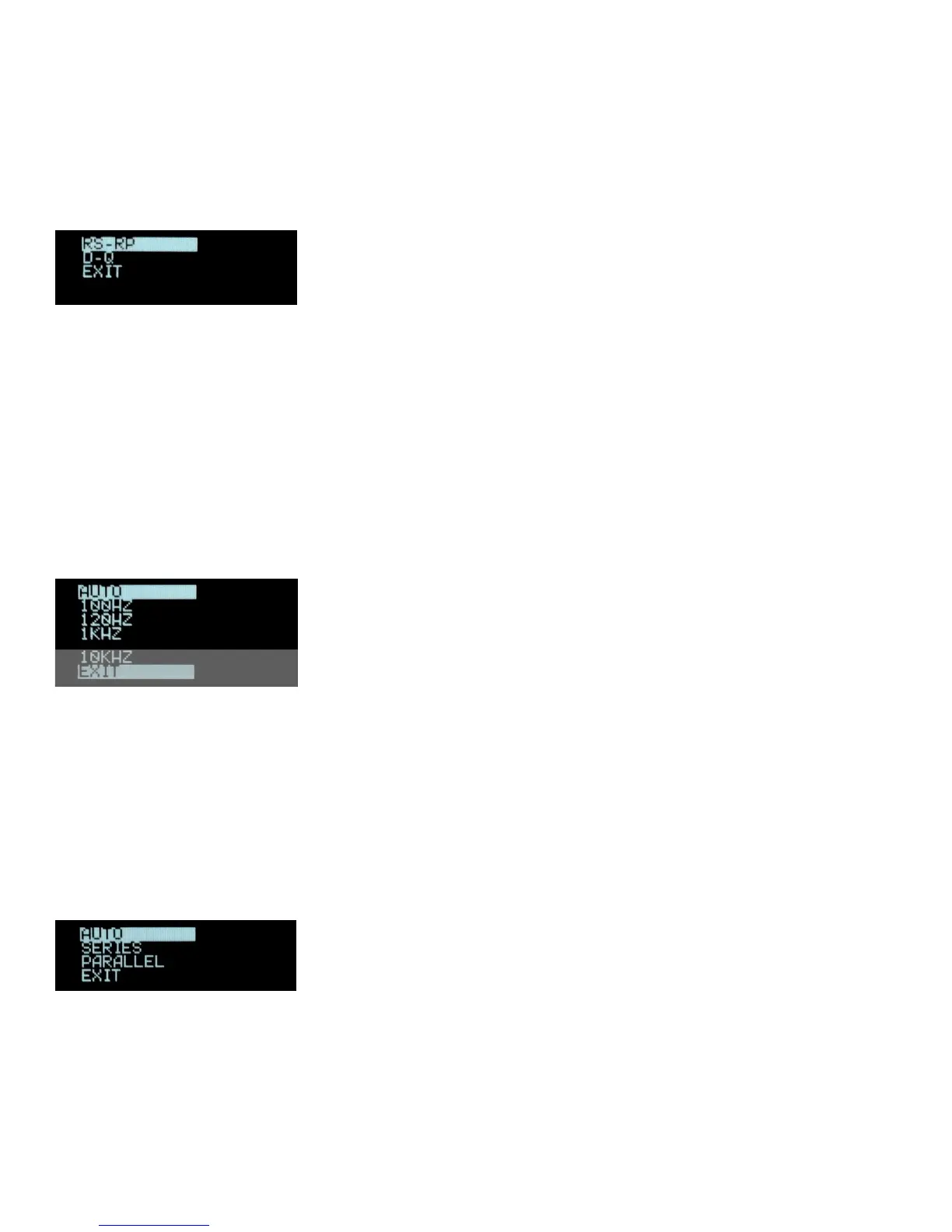

Figure 2-14: Secondary Parameter Menu
Test Frequency Menu
Test Frequency menu is used to set the frequency of the test signal. The default setting is Auto and
the following settings can be selected:
Auto: auto frequency (AF) mode, the meter automatically selects the best test frequency.
100Hz: set test frequency to 100Hz.
120Hz: set test frequency to 120Hz.
1kHz: set test frequency to 1kHz.
10kHz: set test frequency to 10kHz.
Exit: Return to the measurement display.
Figure 2-15: Test Frequency Menu
Circuit Mode Menu
Circuit Mode menu is used to set the secondary parameters on the display. The default setting is
Auto and the following settings can be selected:
Auto: set to auto circuit mode. Series or parallel circuit mode will be automatically identified.
Series: set to series circuit mode.
Parallel: set to parallel circuit mode.
Exit: Return to the measurement display.
Figure 2-16: Circuit Mode Menu
