1 User Manual - LCR Elite2 - ver 1.3
Overview
This chapter provides the basic operation procedures and describes names and functions on the display.
Product Introduction
LCR Elite2 (“the meter”) is a portable impedance measuring device for incoming inspection of components,
quality control, and laboratory use.
It is capable of measuring resistance, capacitance or inductance with 4 test frequencies (100Hz, 120Hz, 1kHz and
10kHz). It has a basic accuracy better than 0.2% for resistance, 0.2% for capacitance and 0.4% for inductance
measurements.
The meter has a pair of gold plated tips that can pick the SMD components with size down to 0201 (0.6mm x
0.3mm). The parasitic parameters of its probes are small and very predictable thanks to its unique mechanical
design. It significantly reduces the probability of measurement errors related to setup (such as wires, probes,
tips).
Features and Functions

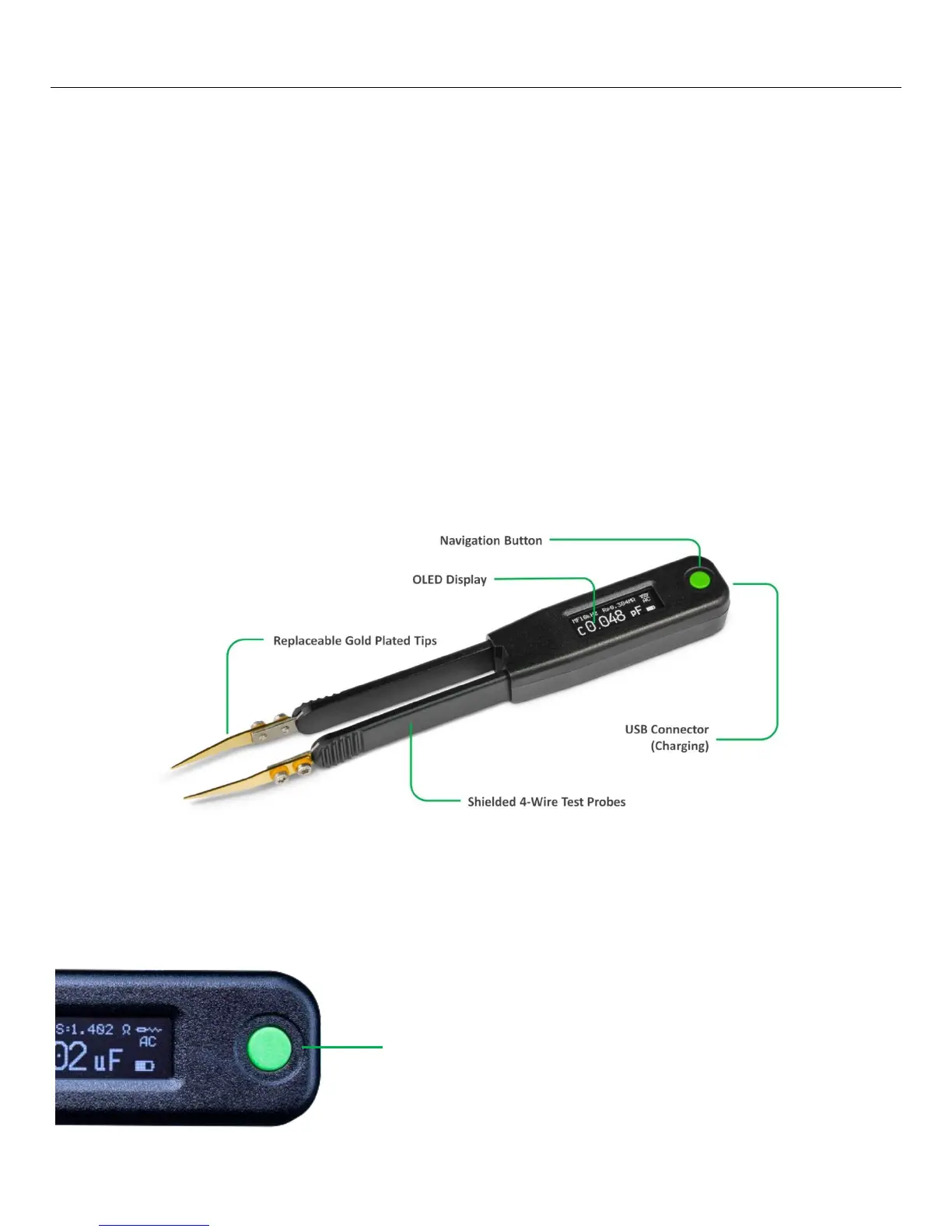

Figure 1-1: LCR Elite2 Overview
The Navigation Button
The navigation button is used to browse and select different functions and parameters as Figure 1-2 shows.
Figure 1-2: Navigation Button
To Next Page
