13 User Manual - LCR Elite2 - ver 1.3

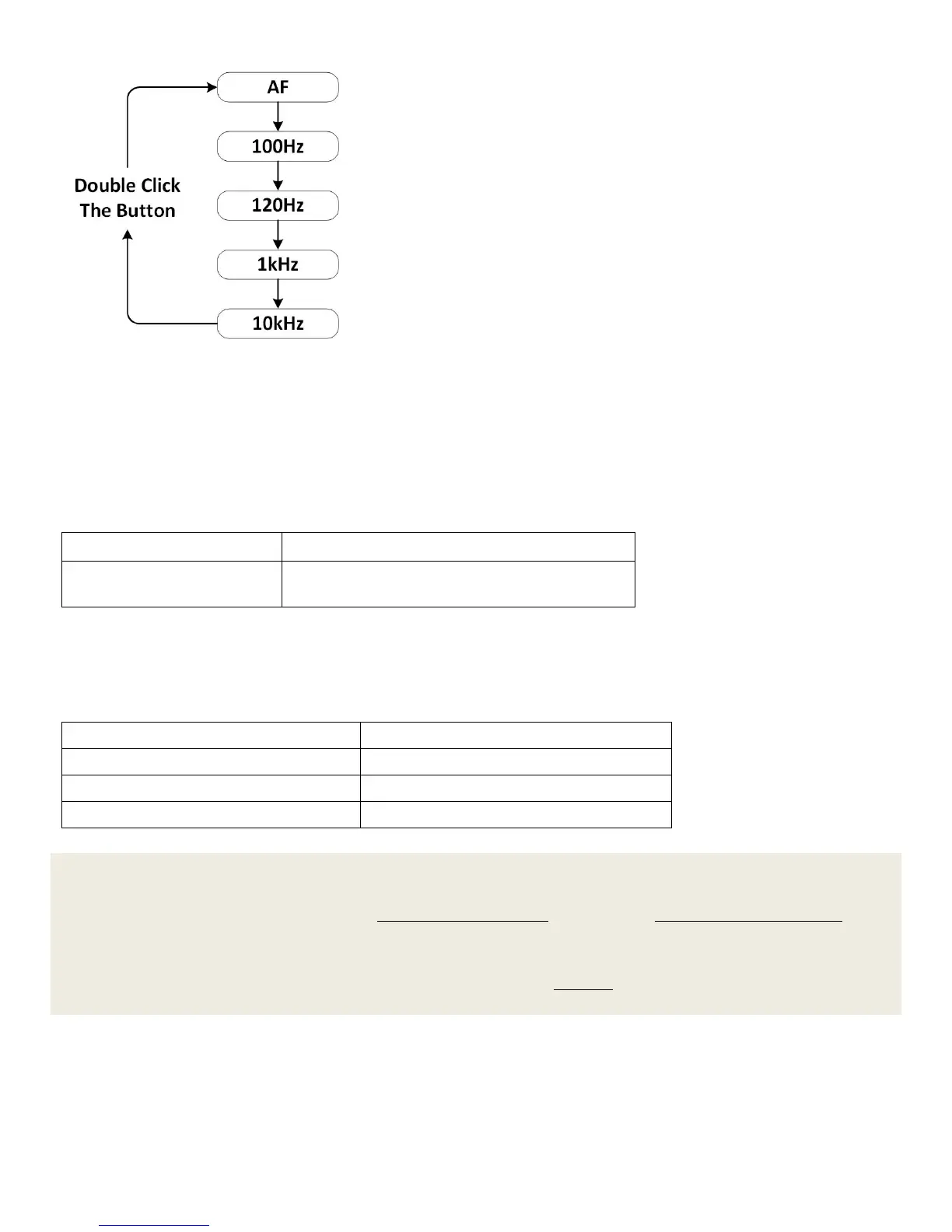

Figure 3-3: Switch Test Frequency by Double Clicking the Navigation Button
Auto Mode
In auto mode, the meter identifies resistance (R), inductance (L) and capacitance (C) automatically.
Table 3-1 describes how to set up the meter to auto mode.
Table 3-1: Set Up Auto Mode
Settings
Menu Structure
Auto
Main Menu -> Measurement -> LCR ->
Auto
In auto mode, the meter identifies L, C, and R according to the angle of impedance detected in the component
under test. Table 3-2 lists the phase angle rules.
Table 3-2 Auto Mode Phase Angle Rules
Phase Angle Setting
Primary Display
|Q| < phase angle
R
Q >= +phase angle
L
Q =< -phase angle
C
NOTE
(1) When auto mode is selected, the testing frequency and secondary parameter stay unchanged. To change
them separately, please refer page 15: Selecting Circuit Mode and page 15: Selecting Test Frequency.
(2) The autoset option in main menu can be used to reset the meter to the default mode (auto mode with auto
testing frequency and auto circuit mode). Please refer page 7: Autoset to know which settings will be reset
when autoset is selected.
