14 User Manual - LCR Elite2 - ver 1.3
Measuring Resistance (R)
Table 3-3 describes how to set up the meter to resistance measurement.
Table 3-3: Set Up Resistance Measurement
Settings
Menu Structure
R
Main Menu -> Measurement -> LCR -> R

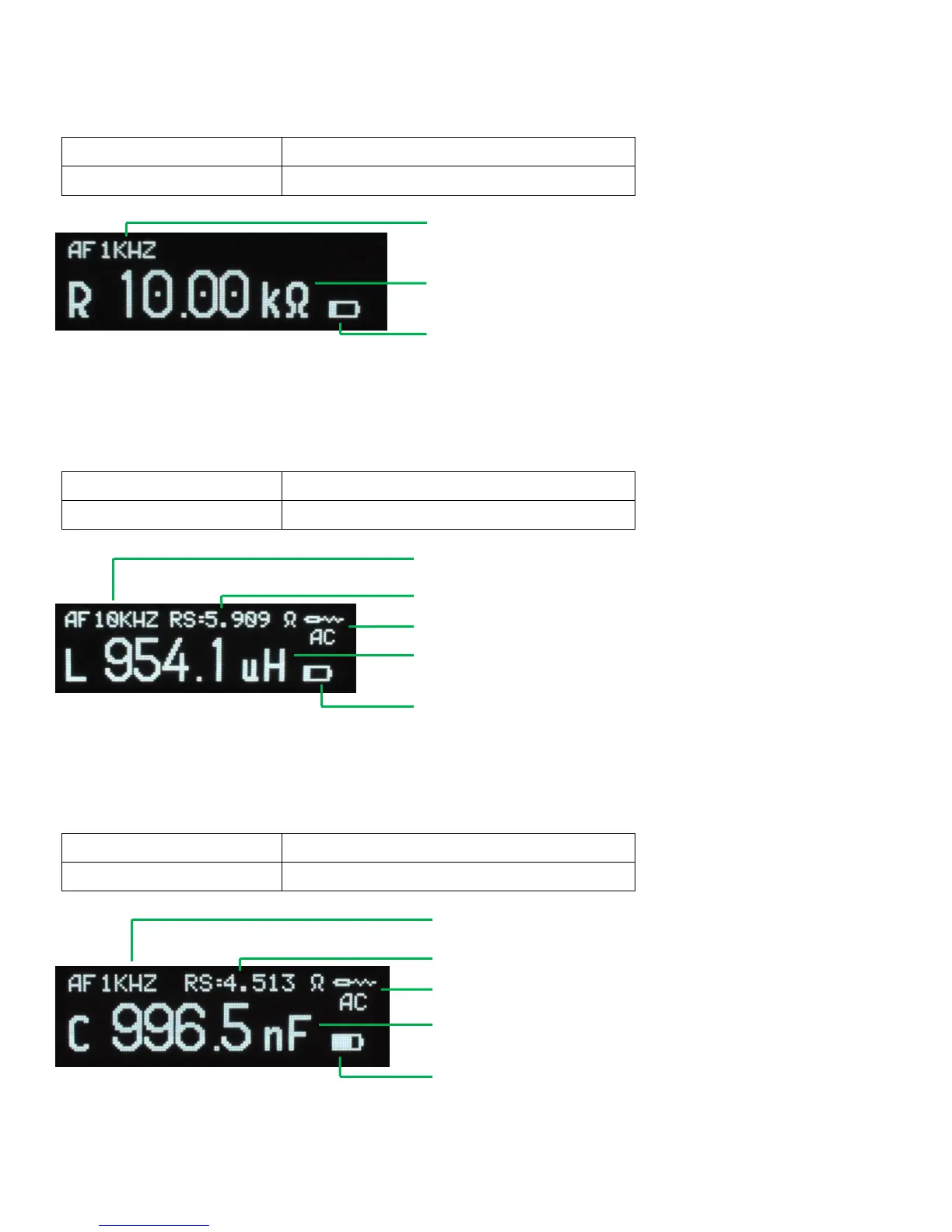

Figure 3-4: Display of R measurement
Measuring Inductance (L)
Table 3-4 describes how to set up the meter to inductance measurement.
Table 3-4: Set Up Inductance Measurement
Settings
Menu Structure
L
Main Menu -> Measurement -> LCR -> L
Figure 3-5: Display of L measurement
Measuring Capacitance (C)
Table 3-5 describes how to set up the meter to capacitance measurement.
Table 3-5: Set Up Capacitance Measurement
Settings
Menu Structure
C
Main Menu -> Measurement -> LCR -> C
Figure 3-6: Display of C measurement
Component type and measurement result
(single click the navigation button to
switch)
Battery Indicator
Battery Indicator
Test frequency
(double click the navigation button to
switch)
Component type and measurement result
(single click the navigation button to
switch)
Secondary parameter
Circuit mode
Battery Indicator
Test frequency
(double click the navigation button to
switch)
Component type and measurement result
(single click the navigation button to
switch)
Secondary parameter
Circuit mode
Test frequency
(double click the navigation button to switch)
