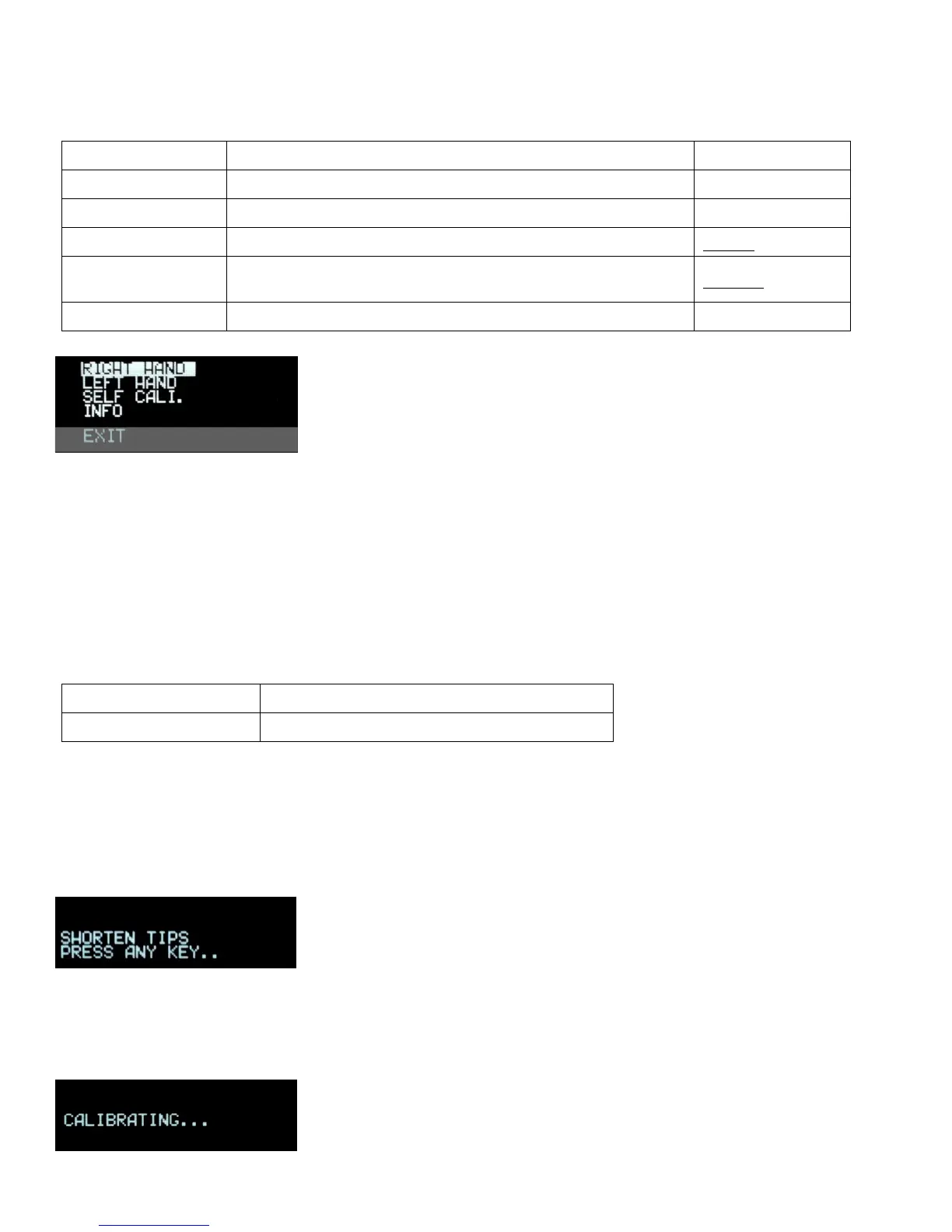

8 User Manual - LCR Elite2 - ver 1.3
System Menu
5 items can be selected in system menu as described in Table 2-2.
Table 2-2 Description of System Menu
Menu Item
Description
Learn More On:
Right Hand
Select the right hand operation mode
Left Hand
Select the left hand operation mode
Self CALI.
Start short and open calibration.
Page 8
Info
Provide the device information including serial number,
hardware and software version.
Page 10
Exit
Return to the measurement display.
Figure 2-4: System Menu
Self-Calibration
The self-calibration includes short and open calibration. It offsets the meter’s internal and external parasitic
parameters for better accuracy. Performing this action will help the user correct the influence for temporary
uses.
Table 2-3 describes how to set up the meter to self-calibration.
Table 2-3: Set Up Self-Calibration
Settings
Menu Structure
Self-Calibration
Main Menu -> System -> Self Cali.
In self-calibration mode, the step by step instructions are shown on the display. Follow these instructions to
perform the short/open calibration:
1. When self-calibration is selected, Figure 2-5 shows on the display. Please shorten 2 tips and press the
navigation button to start the short calibration.
Figure 2-5: Start Short Calibration
2. Once the navigation button is pressed, Figure 2-6 shows on the display indicating short calibration is in
progress.
Figure 2-6: Calibration in Progress
