11–2

Display

Which Grid? All four possible traces can be shown at the same time on separate

grids. When Parameters are used, the parameter-style grid comes

into play automatically. Other grid styles, illustrated on the following

pages, offer the choice of a variety of ways to view one or more

traces in either Standard or XY Mode.

Standard and XY Display Grids

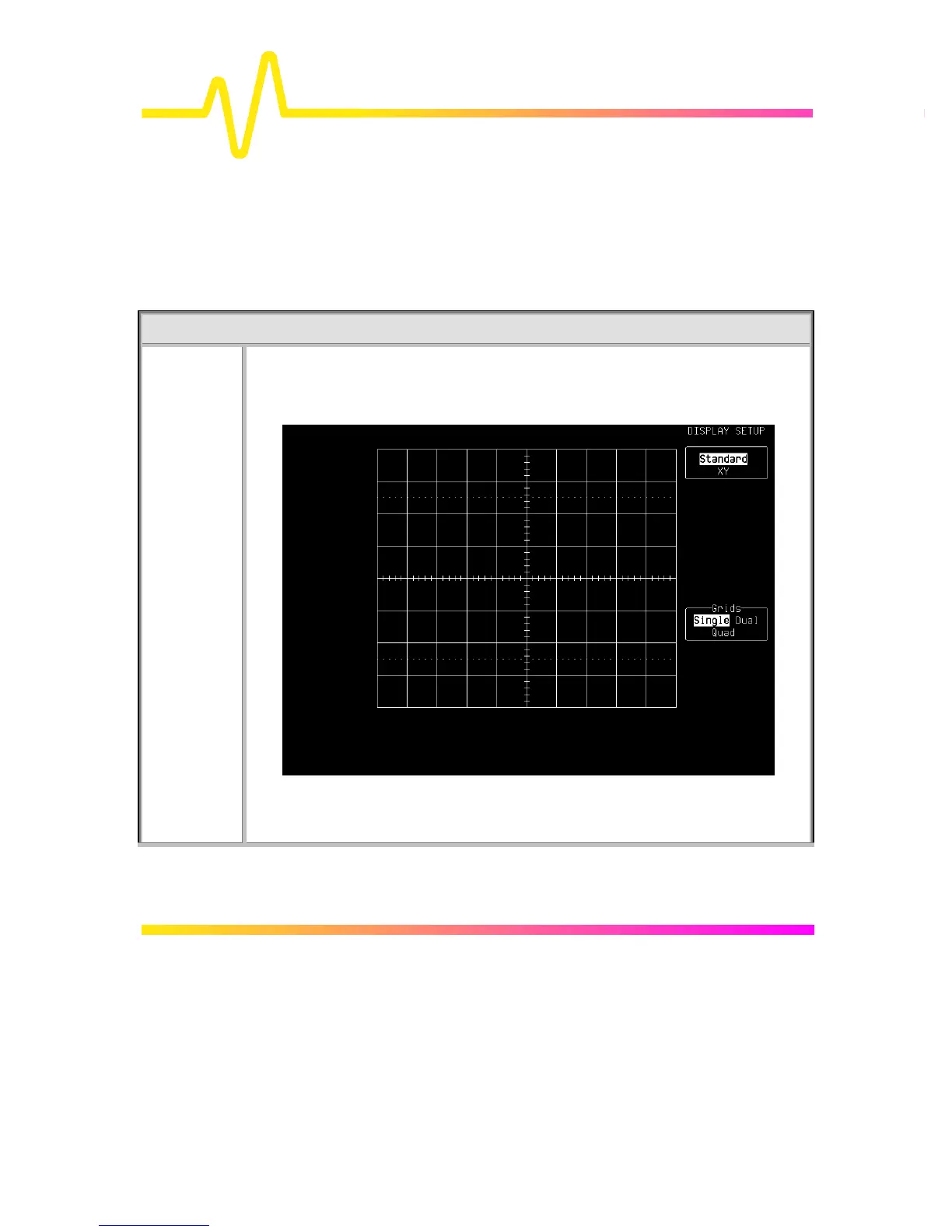

Single

Default Chapter3
- Table of Contents3
Chapter 1 - Read this First!6
- Product and Client Care6
Chapter 2 - Instrument Architecture10
- General Designed Capabilities10
- Block Diagrams13
Chapter 3 - Installation and Safety15
- Installation for Safe and Efficient Operation15
Chapter 4 - Introduction to the Controls20
- The Front Panel20
- The Main Controls20
- Choosing and Navigating in Menus21
- System Setup and Menu Controls23
- Screen Topography25
Chapter 5 - CHANNELS, Coupling and Probes28
- Channel Controls28
- Coupling30
- Probes and Probe Calibration31
Chapter 6 - TIMEBASE + TRIGGER33
- TIMEBASE + TRIGGER Controls33
Chapter 7 - Timebase Modes and Setup37
- Timebase Sampling Modes37
- Timebase Setup41
Chapter 8 - Triggers and When to Use Them47
- Choosing the Right Trigger47
- Edge or SMART48
- Edge Trigger49
- TRIGGER SETUP: Edge55
- SMART Triggers56
  - Trigger Source57
  - Interval Trigger59
- Trigger Setup: Smart75
Chapter 9 - ZOOM + MATH84
- Zoom and Math Controls84
Chapter 10 - Zoom, Mathematics and Math Setup86
- Zooming for Precise Waveform Measurements86
- Math Functions and Options88
- Using Waveform Mathematics91
- Configuring for Zoom and Math93
- Setting up FFT Span and Resolution104
- Fft Setup106
Chapter 11 - Display109
- Setting up the Display109
  - Grid Intensity114
  - Persistence Setup115
Chapter 12 - UTILITIES118
- Printing, Storing, Using Special Modes118
- Hardcopy Setup119
- Time/Date Setup121
- GPIB/RS232 Setup122
- Mass Storage Utilities124
- Special Modes137
- CAL BNC Setup140
Chapter 13 - WAVEFORM STORE & RECALL141
- Waveform Store141
- Waveform Recall145
Chapter 14 - CURSORS/MEASURE & Parameters147
- Cursors: Tools for Measuring Signal Values147
- Parameters: Automatic Measurements150
- Pass/Fail Testing159
Chapter 15 - PANEL SETUPS167
- Saving and Recalling Panel Setups167
Chapter 16 - SHOW STATUS170
- The Complete Picture, Summarized170
Appendix A: Specifications175
- Acquisition System175
- Specifications176
- Acquisition Modes176
- Triggering System176
Appendix B - Enhanced Resolution209
- Using Fft216
- Error Messages226
- Fft Algorithms227
Appendix C - Fast Fourier Analysis (FFT)235
Appendix D: Parameter Measurement235
- Parameters and How They Work235
