8–29

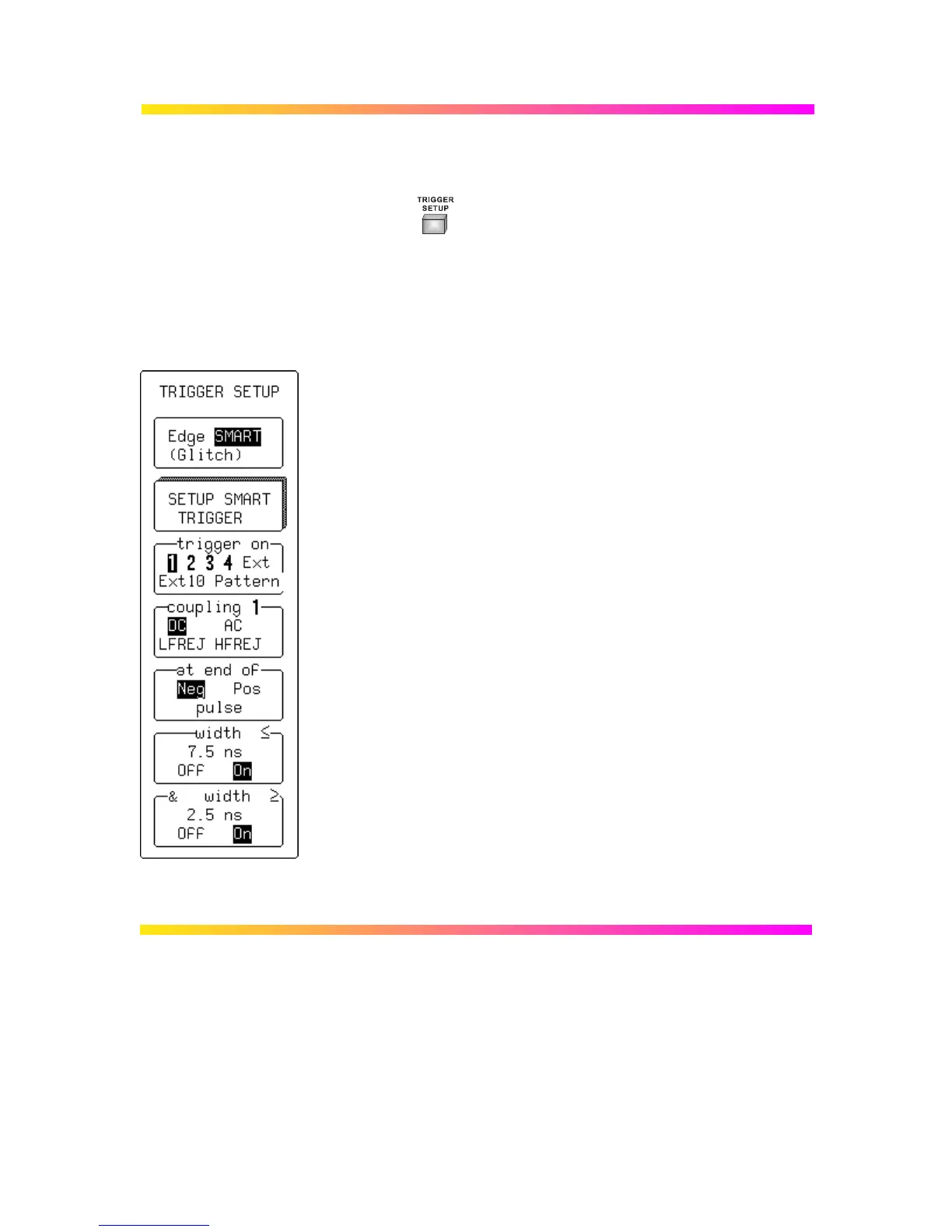

TRIGGER SETUP: SMART
Press to access, too, the various SMART Trigger
types, to trigger on:
Ø Glitches
Ø Intervals
Ø Abnormal signals (Exclusion Trigger)
Ø Patterns (NOT AVAILABLE ON 9304C, 9310C, 9314C SERIES)
Ø State- or edge-qualified events
Ø TV signals
Ø Dropouts.
Edge/SMART To select “SMART
SETUP SMART TRIGGER
This is primary menu that accesses the “SMART TRIGGER”
menu group, for choosing the type of SMART Trigger required
from the “type” secondary menu. This and the other SMART
menus are described starting page 8–30.
