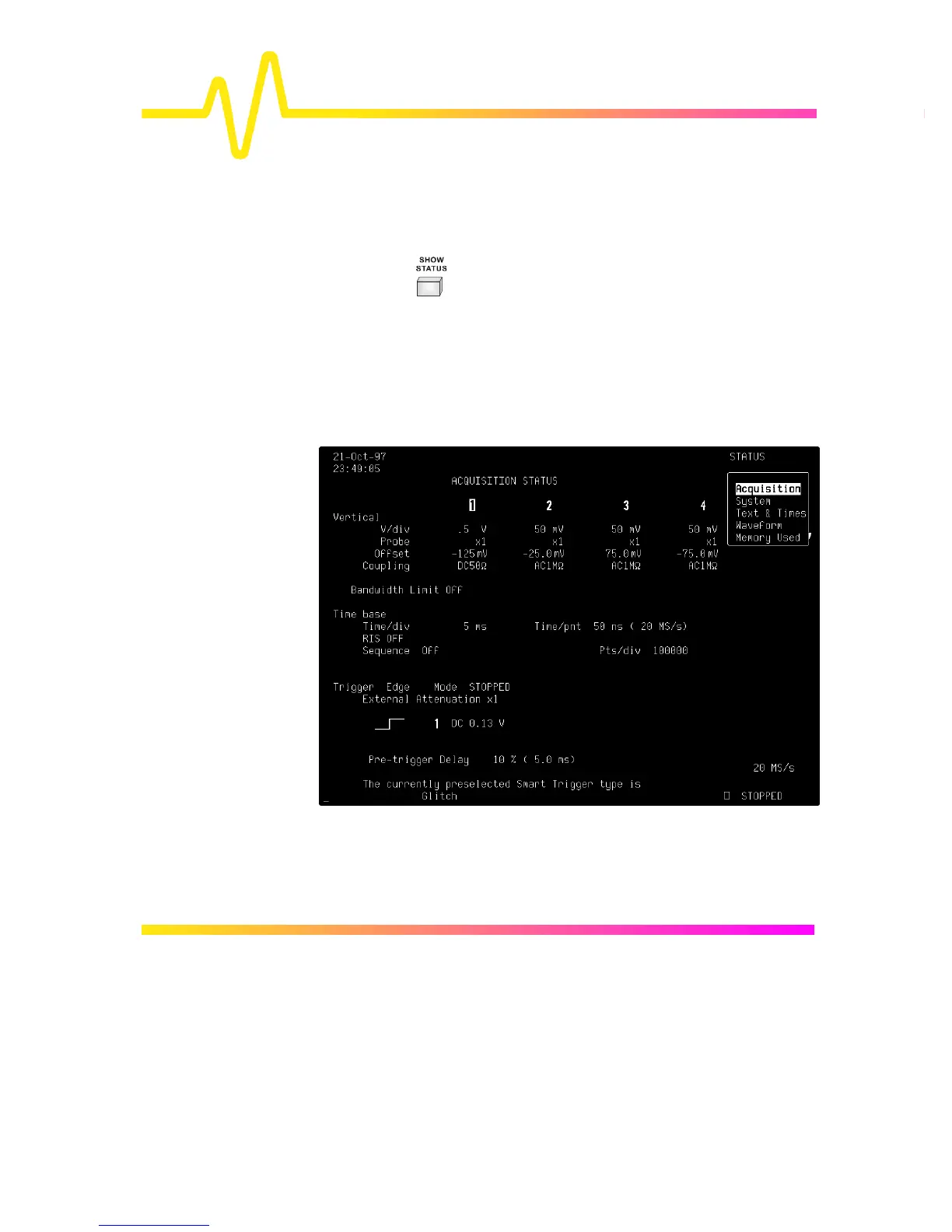

Page #170 background imageLoading...
Page #170 background image
16–1
16
SHOW STATUS
The Complete Picture, Summarized
Press to summon the “STATUS” menu and access
full-screen summaries of the oscilloscope’s system and
other functional status.
Acquisition Status Vertical sensitivity, probe attenuation, offset and coupling for
each channel, as well as timebase and trigger status summaries.
