12–6
UTILITIES

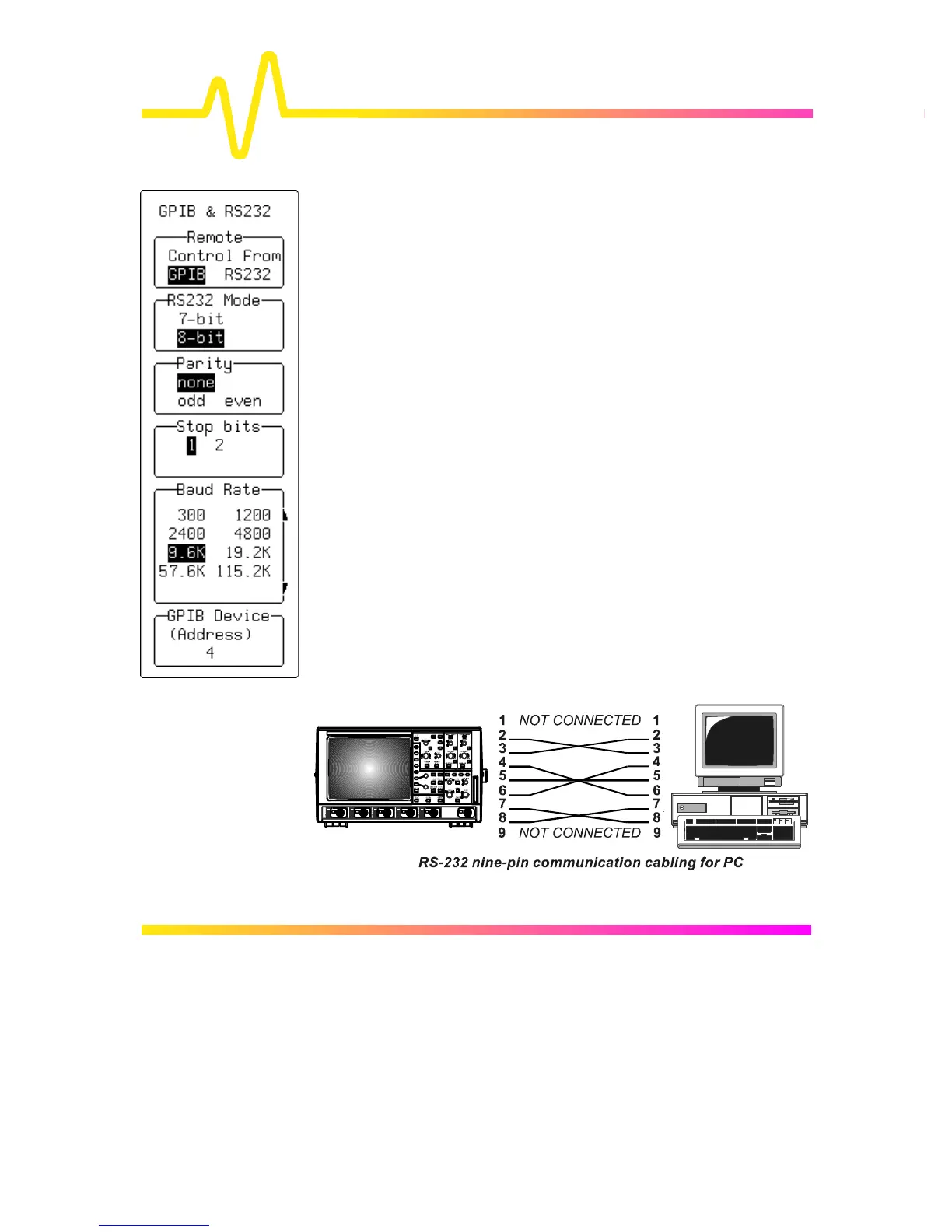

GPIB & RS232 When “GPIB/RS232 Setup” is selected from “UTILITIES” these
menus appear:
Remote Control from
For selecting the port for remote control.
RS232 Mode
To select “7–bit” or “8–bit” mode for RS-232 communication. When
“RS-232” is selected, the GPIB interface is in “Talk Only” mode. Any
change becomes effective immediately.
Parity
To select the “odd” or “even” parity, or “none”, for RS-232
communication.
Stop bits
For selecting the number of stop bits for RS-232 communication.
Baud Rate
To set the Baud Rate for RS-232 communication using the
attributed menu knob.
GPIB Device (Address)
To choose the appropriate GPIB address.
To Next Page
