16–4

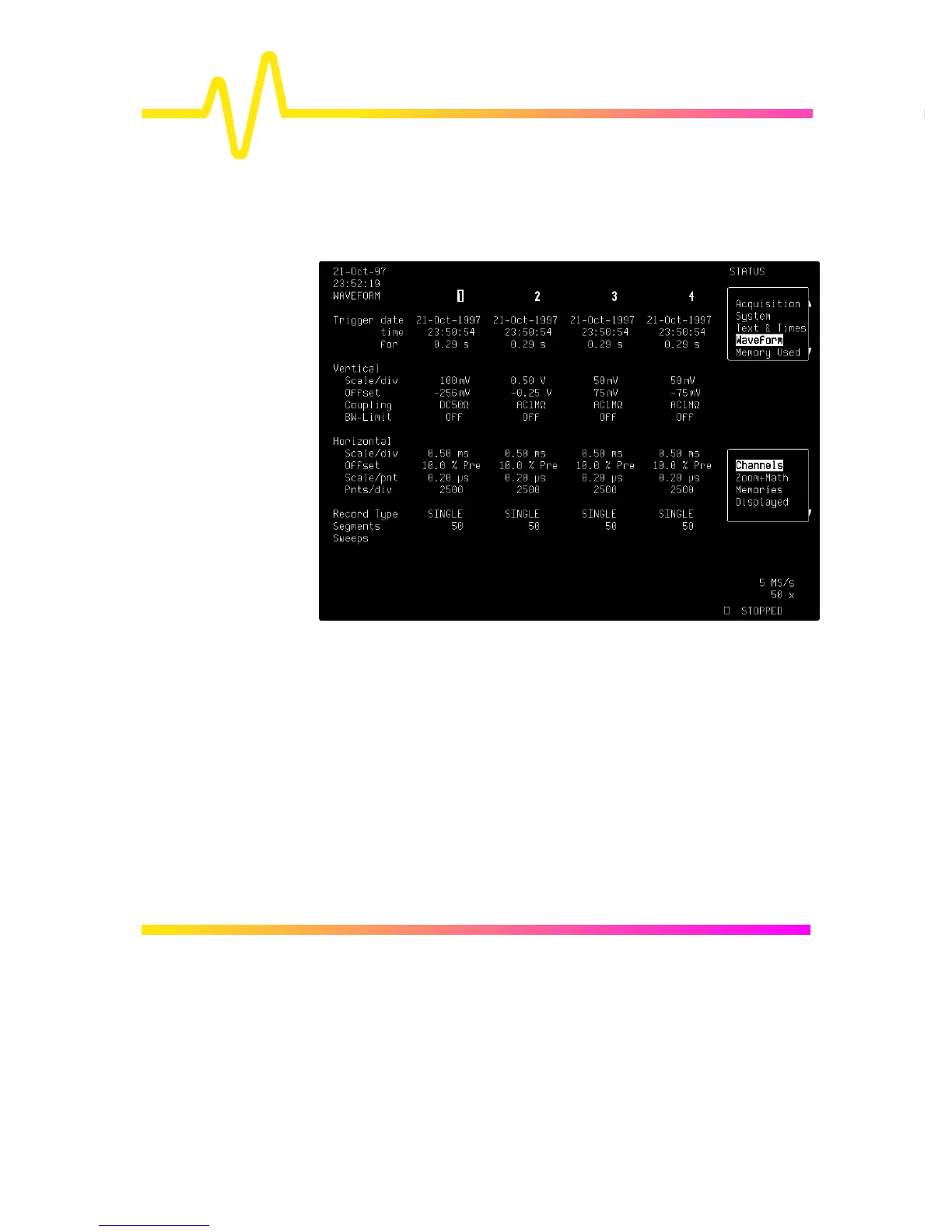

SHOW STATUS

Waveform Detailed status information on channels, memories, zoom and math

or displayed traces, specified using the bottom menu, which

appears when “Waveform” is selected from the top.
