E–3

ASCII Waveform Export

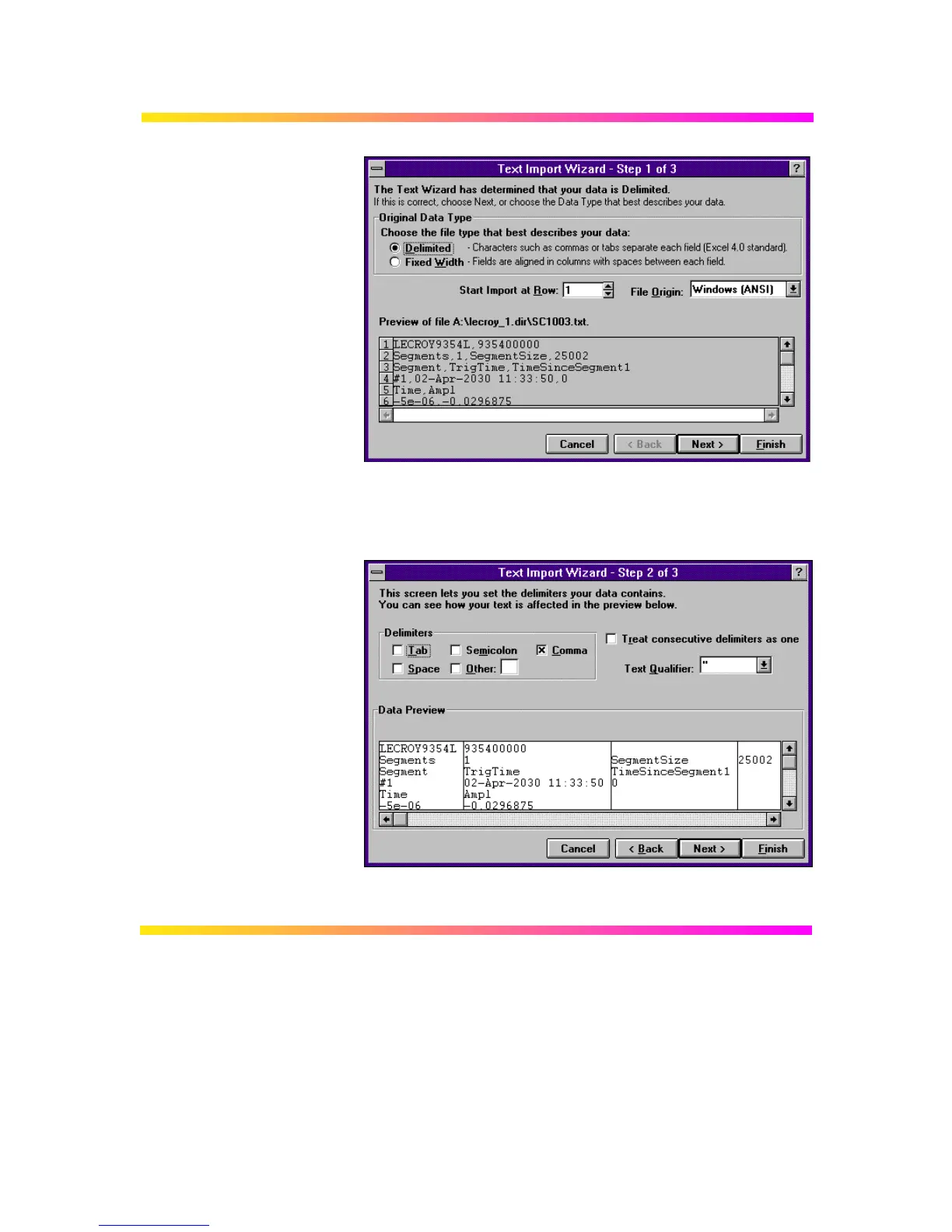

The next step allows the specific delimiter to be specified. The

Spreadsheet format generated by the scope uses a comma (,) to

delimit columns. Ensure that this is selected.
