E–7
ASCII Waveform Export
Using Mathcad
These examples were created using MathSoft’s Mathcad for
Windows. On this and the next page, the procedure for reading
and graphing a file for a single segment is shown, using
Mathcad Versions 3.1 and 7, respectively. The example on
page E–9 is for multiple segments.

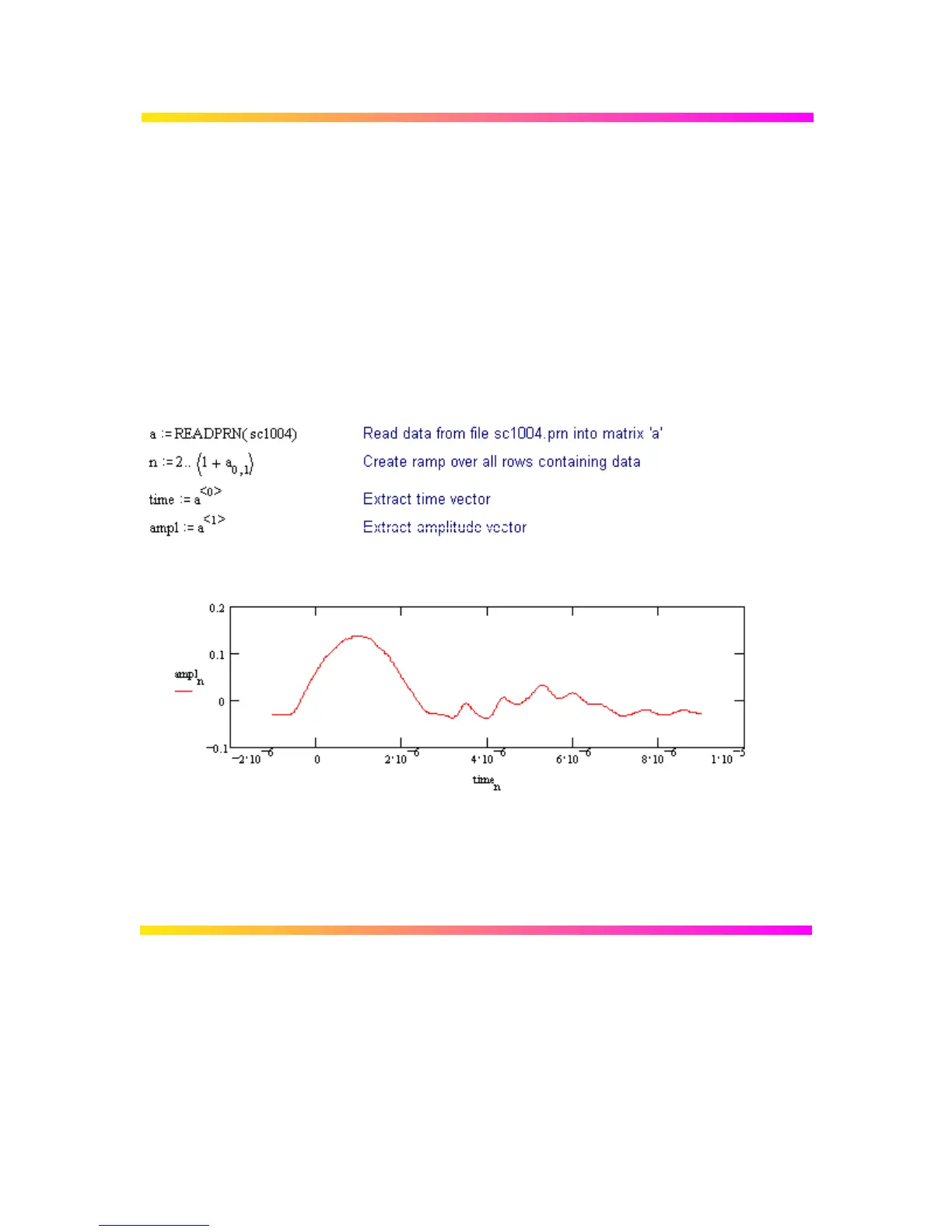

Single-Segment, Version 3.1This single-segment example illustrates the use of Mathcad Version
3.1:
