8–17
Interval Outside Range This Interval Trigger selects a minimum interval between the
two edges of the same slope (Fig. 8–13). The trigger is
generated on the second edge if it occurs after the selected
interval range. The timing for the interval is initialized and
restarted whenever the selected edge occurs. Intervals of
between 10 ns and 20 s can be selected.

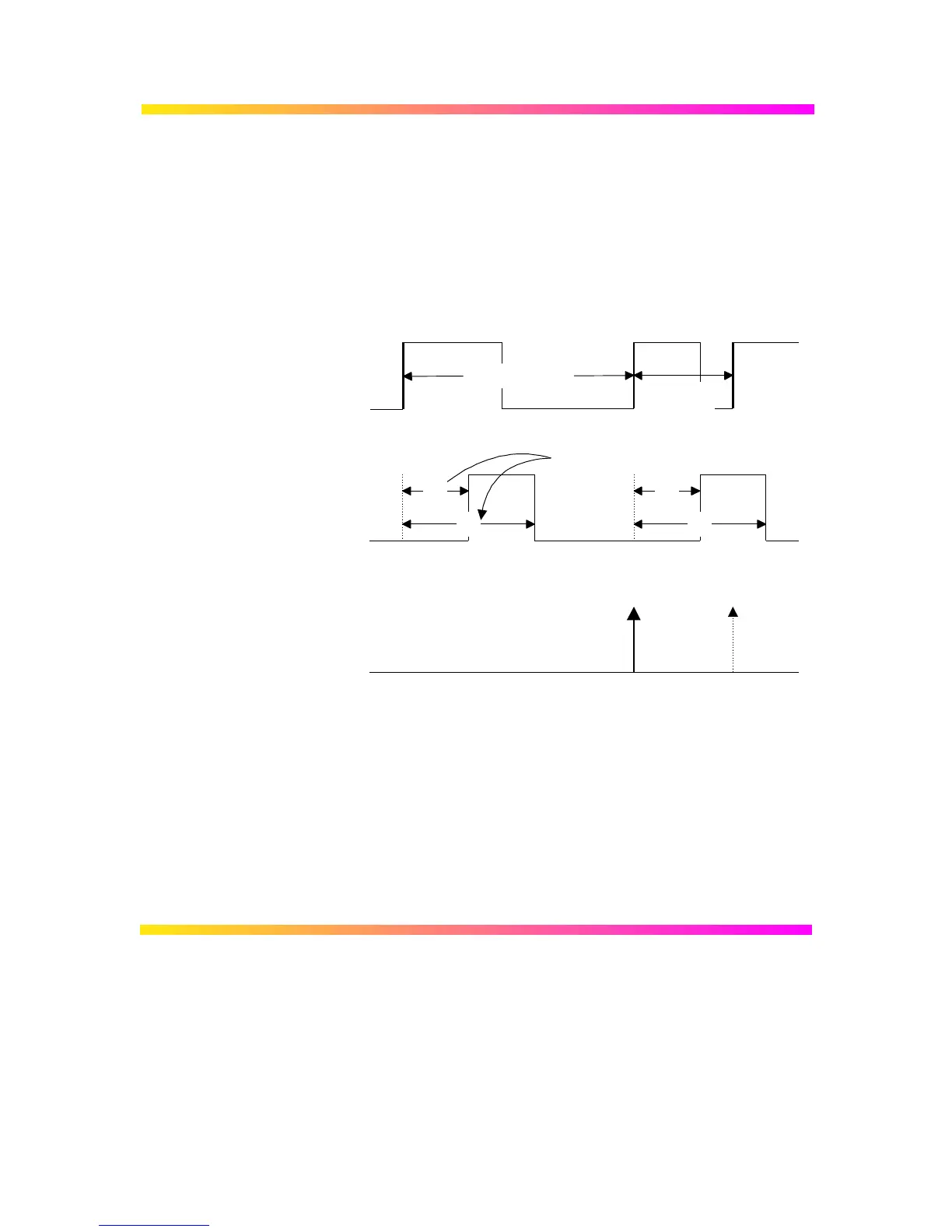

Figure 8–13. Interval Trigger: Trigger if the interval is outside the
selected ranges.
Interval width
Generated Trigger
Interval
width
T2
Selected
ranges
Trigger can occur
T1
T2
T1
Trigger Source: Positive Slope
