8–23

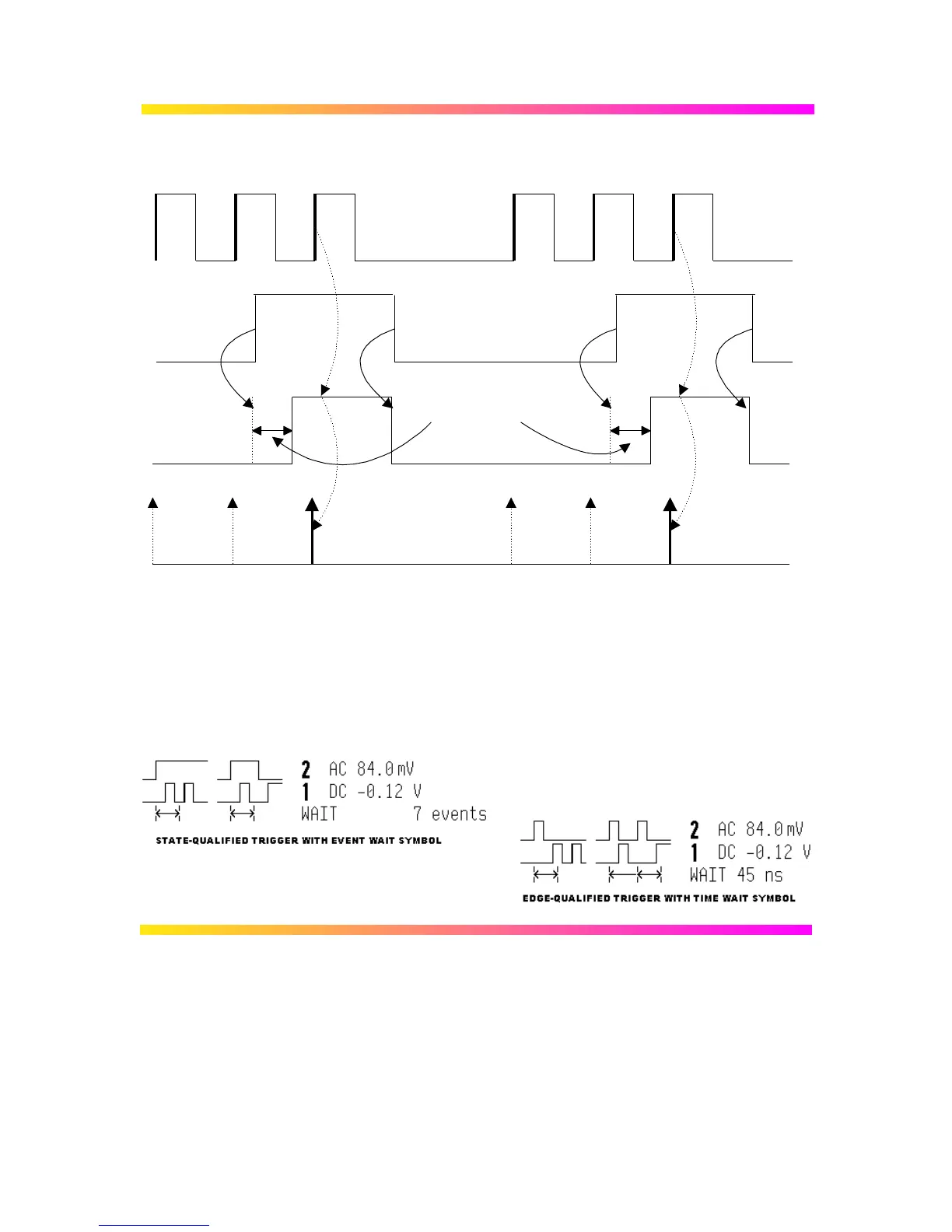

Figure 8–17. State-Qualified by Wait: Trigger after timeout.

As Figure 8–17 illustrates, a trigger is generated on a rising edge

whenever the pattern is asserted (pattern present) and the wait

timeout has expired. The timeout is, respectively, activated or

disabled once the pattern is asserted or absent.

Generated Trigger

Selected wait

Trigger Source: Positive Slope

Trigger can occur

Qualifier: Pattern Present
