Triggers and When to Use Them

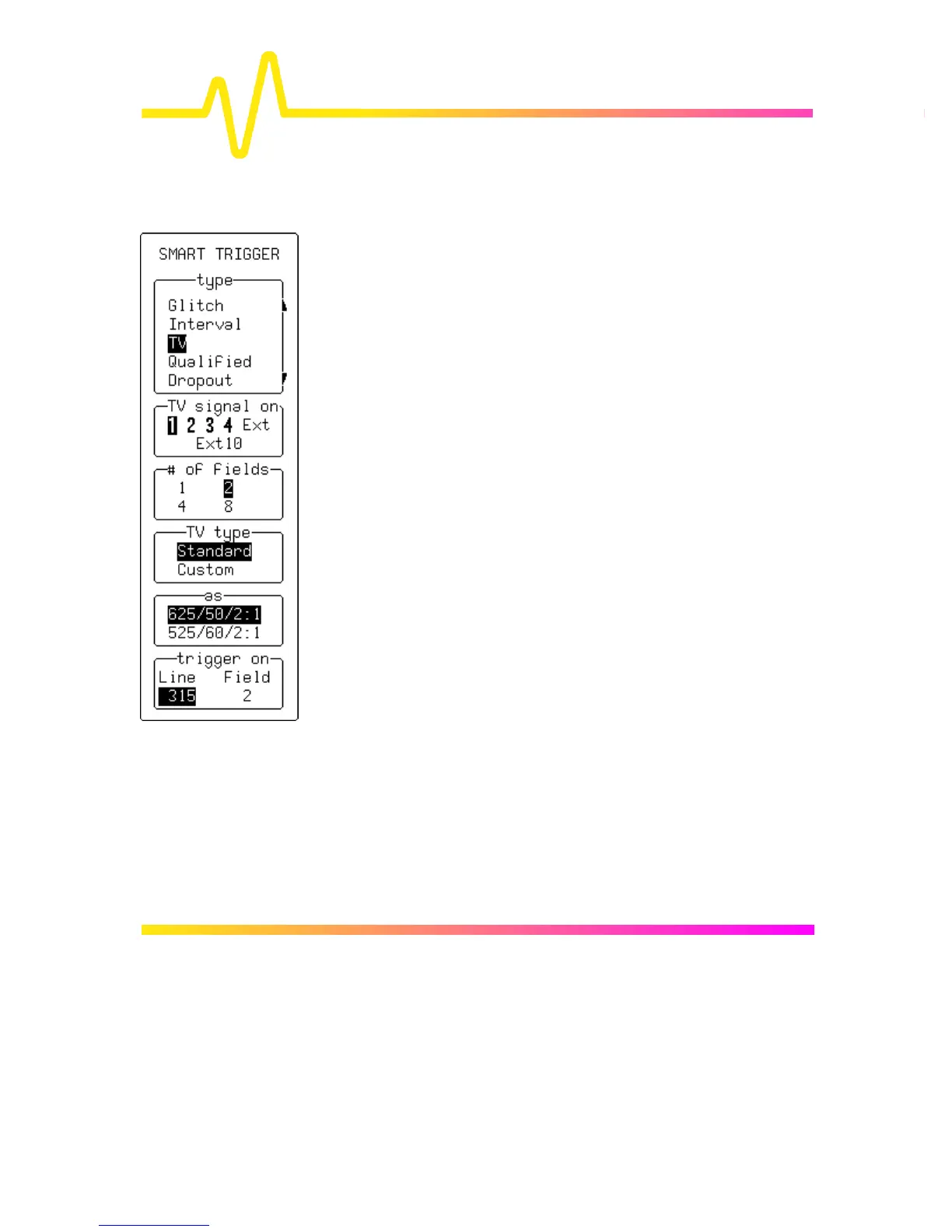

SMART TRIGGER — TV
type
To select “TV” .
TV signal on
For selecting the trigger source (four-channel menu shown).
# of fields
To define the number of fields — up to eight.
TV type
For selecting either “Standard” or “Custom” TV decoding.
as
When “Standard” is chosen, for selecting either “625/50/2:1” (PAL
SECAM) or “525/60/2:1” (NTSC) standards.
When “Custom” is selected, for specifying the number of lines and
cycles, and setting the interlacing factor for non-standard TV
signals.
trigger on
For selecting the line and field number on which to trigger.
