Zoom, Mathematics and Math Setup

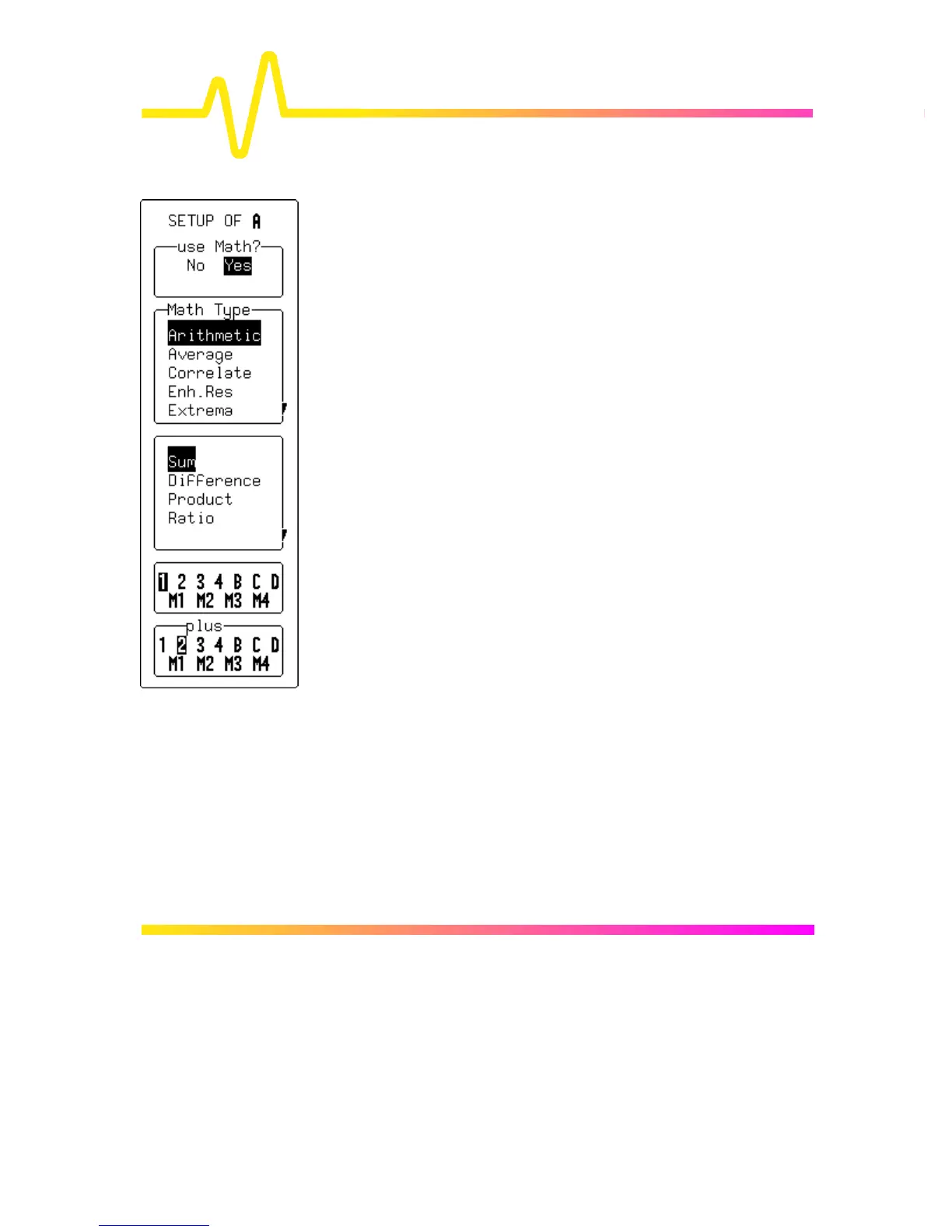

Arithmetic — allows addition, subtraction, multiplication and division, as well as
choice of the two operands and the operator. The example on this
page shows a setup of trace A as the sum of Channels 1 and 2.
use Math?
To choose a math function.
Math Type
To select “Arithmetic”.
Sum
Difference
Product
Ratio
For selecting the operator.
1 2 3 4 B C D
M1 M2 M3 M4
To select one of two operand source traces (four-channel menu
shown).
plus 1 2 3 4 B C D
M1 M2 M3 M4
To select the other operand source trace (four-channel menu
shown).
To Next Page
