DISPLAY
DESCRIPTION
KEY
Command
The KEY command is used to display a string in the menu field
next to one of the 9 menu buttons. The string may consist of up to
12 characters and may be positioned at 4 different locations:
above (L1), opposite (LC), or below (L2) the menu buttons;
(LB) between pairs of buttons, ([1,2], [3,4], [5,6] or [7,8]).
Figure 1 on next page.
Note: The button names shown in Figure 1 are not the same as
those indicated in the front-panel figure at the beginning of the
Operator’s Manual.
button 1
button 2
button 3
button 4
button 5
button 6
button 7
button 8
button g
tart it|| lit| |agl
vw~ wwwl

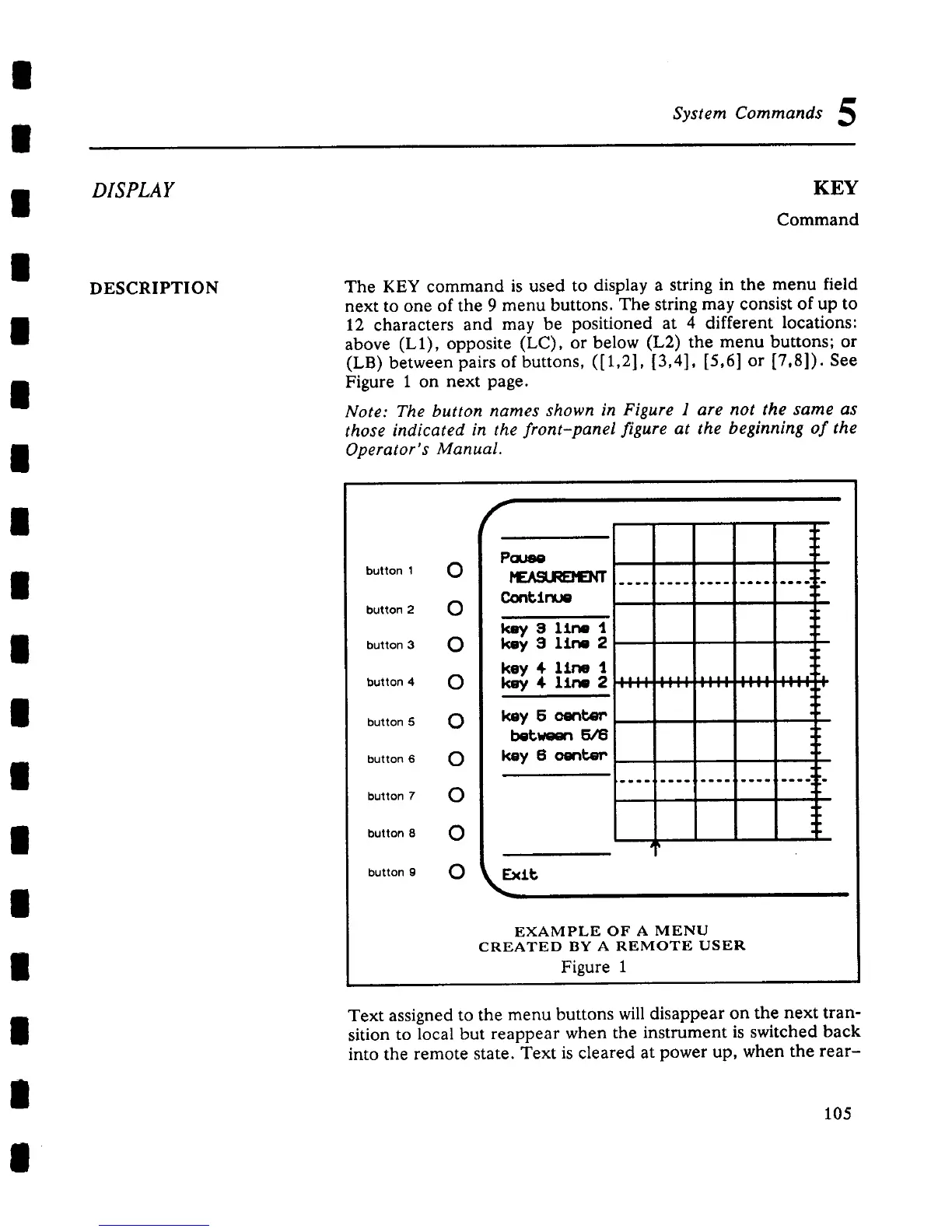

EXAMPLE OF A MENU
CREATED BY A REMOTE USER
Figure 1
Text assigned to the menu buttons will disappear on the next tran-
sition to local but reappear when the instrument is switched back
into the remote state. Text is cleared at power up, when the rear-
105
To Next Page
