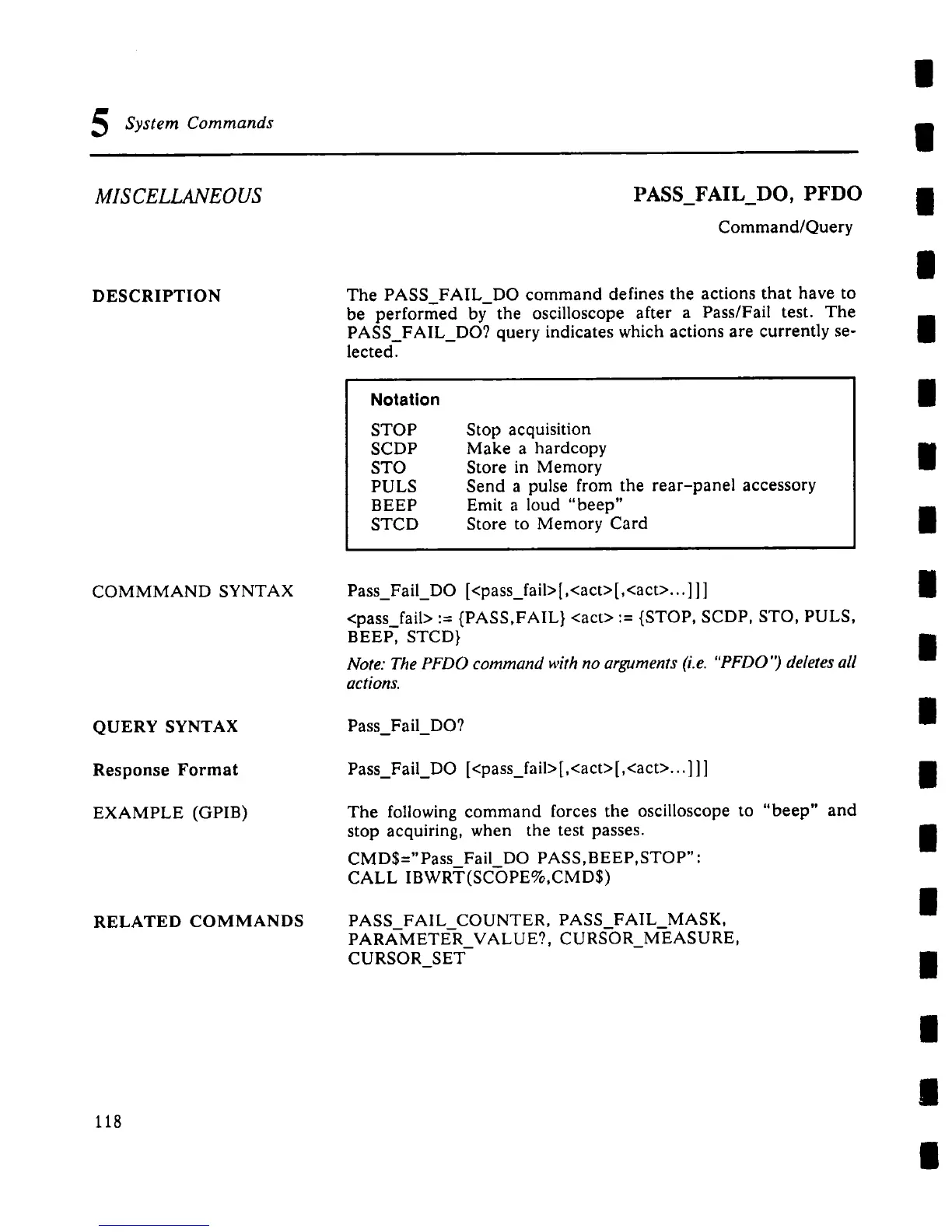

System Commands
|
|
MISCELLANEOUS
DESCRIPTION
PASS_FAIL_DO, PFDO
Command/Query
The PASS FAIL DO command defines the actions that have to
be performed by" the oscilloscope after a Pass/Fail test. The
PASS_FAIL_DO? query indicates which actions are currently se-
lected.
Notation
STOP
SCDP
STO
PULS
BEEP
STCD
Stop acquisition
Make a hardcopy
Store in Memory
Send a pulse from the rear-panel accessory
Emit a loud "beep"
Store to Memory Card
COMMMAND SYNTAX
QUERY SYNTAX
Response Format
EXAMPLE (GPIB)
RELATED COMMANDS
Pass_Fail_DO
[<pass_fail>
[,<act>
[,<act>...
] ] ]<pass_fail>
:=
{PASS,FAIL}
<act>
:=
{STOP,
SCDP,
STO,
PULS,
BEEP, STCD}
Note." The PFDO command with no arguments (i.e. "PFDO") deletes all
actions.
Pass_Fail_DO?
Pass_Fail_DO
[<pass_fail>[,<act>[,<act>...]]]
The following command forces the oscilloscope to "beep" and
stop acquiring, when the test passes.
CMD$="Pass Fail DO PASS,BEEP,STOP":
CALL IBWRT(SC-OPE%,CMD$)
PASS_FAIL_COUNTER, PASS FAIL_MASK,
PARAMETER_VALUE?,
CURS-OR_MEASURE,
CURSOR_SET
118
