System Commands
|
|
WA VEFORM TRANSFER
DESCRIPTION
COMMAND SYNTAX
EXAMPLE (GPIB)
RELATED COMMANDS

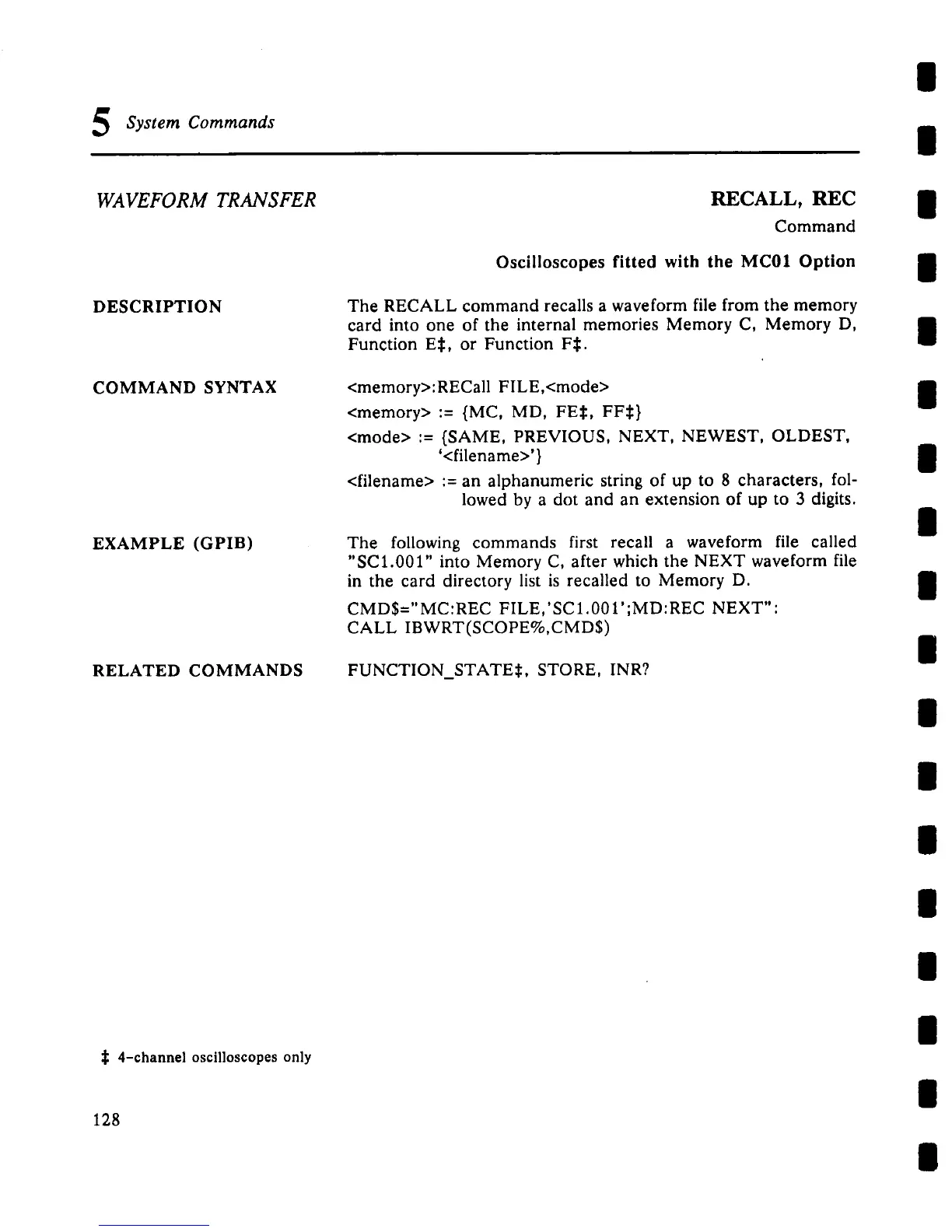

RECALL, REC
Command
Oscilloscopes fitted with the MCO1 Option
The RECALL command recalls a waveform file from the memory
card into one of the internal memories Memory C, Memory D,
Function E~:, or Function F*.
<memory>:RECall FILE,<mode>
<memory> := {MC, MD, FE:I:, FF~:}
<mode> := {SAME, PREVIOUS, NEXT, NEWEST, OLDEST,
’<filename>’}
<filename> := an alphanumeric string of up to 8 characters, fol-
lowed by a dot and an extension of up to 3 digits.
The following commands first recall a waveform file called
"SC1.001" into Memory C, after which the NEXT waveform file
in the card directory list is recalled to Memory D.
CMD$="MC:REC FILE,’SC1.001’;MD:REC NEXT":
CALL IBWRT(SCOPE%,CMD$)
FUNCTION_STATE:I:, STORE, INR?
II
II
II
II
II
II
II
II
II
II
II
II
II
:l: 4-channel oscilloscopes only
128
